Baldor EM3158T-G

Shaft Grounding Motor - 3 hp, 3600 rpm, 3 ph, 230/460 V, 145T Frame, OPSB (Open Slotted Band) Enclosure, 60 Hz, 3450 rpm Base, Foot Mount, Continuous Duty

BaldorMFR # EM3158T-GSKU # YLS7NWR3TPZ0WLF

EnclosureOPSB

Frame145T

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency3.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Shaft Grounding Motor - 3 hp, 3600 rpm, 3 ph, 230/460 V, 145T Frame, OPSB (Open Slotted Band) Enclosure, 60 Hz, 3450 rpm Base, Foot Mount, Continuous Duty

Baldor EM3158T-G

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureOPSB

Frame145T

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency3.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)3600 RPM @ 60 HZ

Voltage at frequency460.0 V @ 60 HZ · 230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUSEEV · NEMA PREMIUM · NEMA PREMIUM (OLD LOGO)

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage3.800 A @ 460.0 V · 7.600 A @ 230.0 V

Design codeB

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load85.5 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)3.8 a

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classH

Inverter codeInverter Ready

KVA codeK

Lifting lugsNo Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead terminationFlying Leads

Motor lead quantity/wire size9 @ 18 AWG

Motor type3530M

Mounting arrangementF1

Number of poles2

Overall length13.00 IN

Power factor87

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

RoHS statusROHS COMPLIANT

Service factor1.15

Shaft diameter0.875 IN

Shaft ground indicatorShaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)3450 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568663349

Motor CategoryShaft Grounding Motor

Motor Supply Voltage230/460 V

Base RPM3450 rpm

Weight46 lbs

Harmonization Code8501.52.4000

ApplicationsHeating, ventilation and air conditioning blower and fan motors, pump motors, and other general purpose applications using an adjustable speed drive.

Additional DetailsBaldor shaft grounding brush installed internally. Class H insulated motor. Regreasable ball bearings. Dynamically balanced rotors for reduced vibration and quiet operation. All models are Super-E® designs which meet NEMA Premium® efficiencies, are Inverter Ready, and have a 3-year warranty.

Mounting TypeFoot

Product TypeAir Handling (HVAC) Motors

Nameplate

Catalog numberEM3158T-G

Specification number35Z948P988G1

Horsepower (HP)3

Voltage (V)230/460

Current (A)7.6/3.8

Speed (rpm)3450

Frame size145T

Frequency (Hz)60

Phase3

Service factor1.15

Code letter (locked rotor kVA)K

NEMA design letterB

Insulation classH

NEMA nominal efficiency (%)85.5

Power factor87

Rating40C AMB-CONT

CC number010A

EnclosureOPSB

Drive end bearing6205

Opposite drive end bearing6203

Usable at (V)50HZ 3HP 190/380V 9/4.5A

Nameplate numberNP3553LUA

Performance

General characteristics· 460 V, 60 Hz, 3 hp

Line-to-line resistance at 25 °C (ohms)5.8893 Ω

Temperature rise at rated load (°C)33° C

Temperature rise at service factor load (°C)40° C

Start configurationDOL

Breakdown torque18.1 lb-ft

Pull-up torque11.3 lb-ft

Locked-rotor torque15.1 lb-ft

Starting current (A)32.5 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	13	50	72	82	87	90	91	89
Efficiency %	0	76.1	84.3	86	85.8	84.7	83	85.1
Speed rpm	3592.4	3569.1	3541.6	3510.6	3478.3	3442.7	3400.2	3457
Line amps A	1.55	1.77	2.29	2.97	3.73	4.58	5.53	4.24
Power W	155	704	1316	1952	2600	3287	4032	3012
Torque lb-ft	0	1.05	2.19	3.34	4.515	5.68	6.92	5.21

Documents & CAD

For this product 3

Wiring DiagramWiring DiagramPDF·41 KB·English

DatasheetDatasheetPDF·600 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 1· shared by this product series

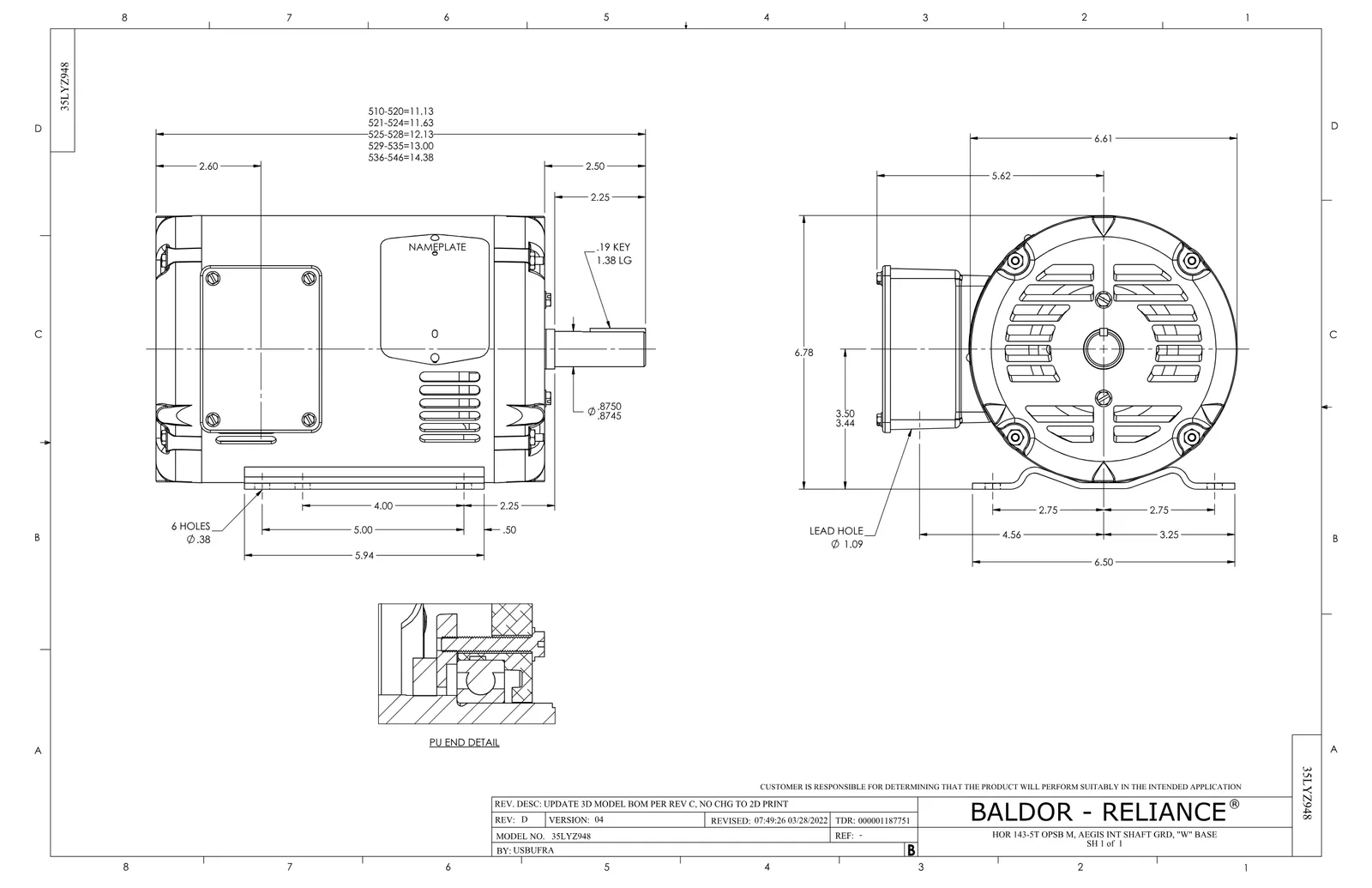

Dimension DrawingDimension SheetPDF·111 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 3

The genuine spare parts used for servicing and repairing the Baldor EM3158T-G motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
MG1050Y01	CELEROL BALDOR GOLD 5 GALLON BUCKET	0.017 gal	1,997 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
