Baldor EM2559T-4

Baldor-Reliance EM2559T-4 is a 125 HP, 1775 rpm, three-phase 460 V, 60 Hz, 405T frame, ODP enclosure general purpose electric motor.

BaldorMFR # EM2559T-4SKU # YLSIIOO9DEQZBCR

EnclosureODP

Frame405T

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency125.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance EM2559T-4 is a 125 HP, 1775 rpm, three-phase 460 V, 60 Hz, 405T frame, ODP enclosure general purpose electric motor.

Baldor EM2559T-4

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureODP

Frame405T

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency125.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency460.0 V @ 60 HZ

Agency approvalsNEMA_PREMIUM · CURUSEEV

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage143.000 A @ 460.0 V

Design codeB

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load95.4 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)143.0 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeInverter Ready

KVA codeG

Lifting lugsStandard Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size6 @ 4 AWG

Motor type4488M

Mounting arrangementF1

Number of poles4

Overall length34.47 IN

Power factor86

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

Service factor1.15

Shaft diameter2.875 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1775 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodWye Start - Delta Run

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568105412

Nameplate

Catalog numberEM2559T-4

EnclosureOPSB

Specification number44E195W047

CC number010A

Frame size405T

Horsepower (HP)125

Insulation classF

Frequency (Hz)60

Speed (rpm)1775

Phase3

NEMA design letterB

Voltage (V)460

kVA codeG

Opposite drive end bearing6312

Drive end bearing6316

Current (A)143

Rating40C AMB-CONT

GreasePOLYREX EM

NEMA nominal efficiency (%)95.4

Power factor86

Service factor1.15

Nameplate numberNP2138LUA

Performance

General characteristics· 460 V, 60 Hz, 125 hp

Line-to-line resistance at 25 °C (ohms)0.0379 Ω

Temperature rise at rated load (°C)48° C

Temperature rise at service factor load (°C)64° C

Start configurationDOL

Breakdown torque1004 lb-ft

Pull-up torque454 lb-ft

Locked-rotor torque540 lb-ft

Starting current (A)914 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	4	56	77	84	86	87	86	87
Efficiency %	0	93.5	95.5	95.7	95.4	94.9	94.1	95.1
Speed rpm	1799	1794	1789	1783	1777	1770	1762	1773
Line amps A	46	56.3	79.8	109.4	142.6	177.7	216	163.7
Power W	1466	25142	49093	73239	97629	122196	147214	112369
Torque lb-ft	0	92.25	184.5	276.75	369	461.25	553.5	424

Documents & CAD

For this product 3

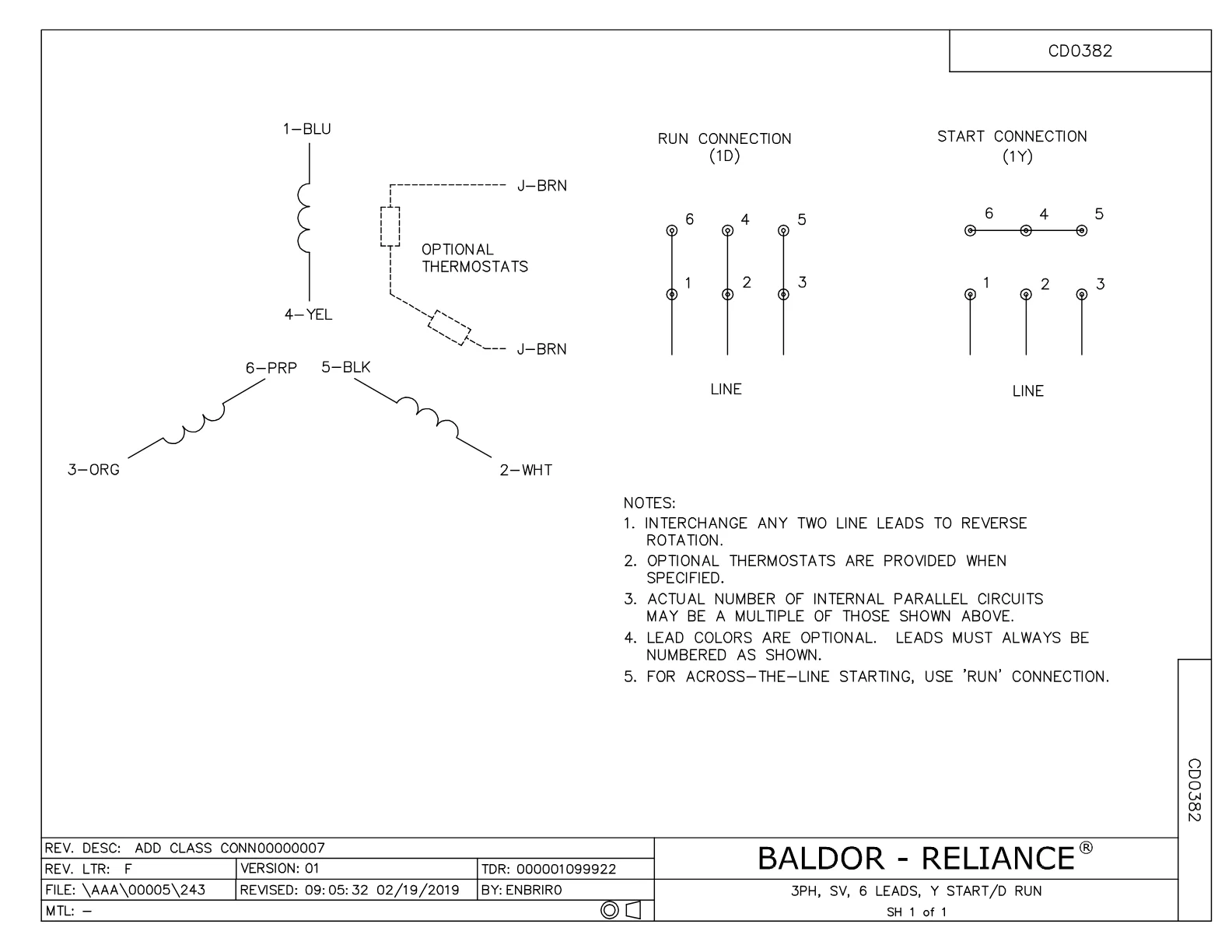

Wiring DiagramWiring DiagramPDF·37 KB·English

DatasheetDatasheetPDF·626 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 2· shared by this product series

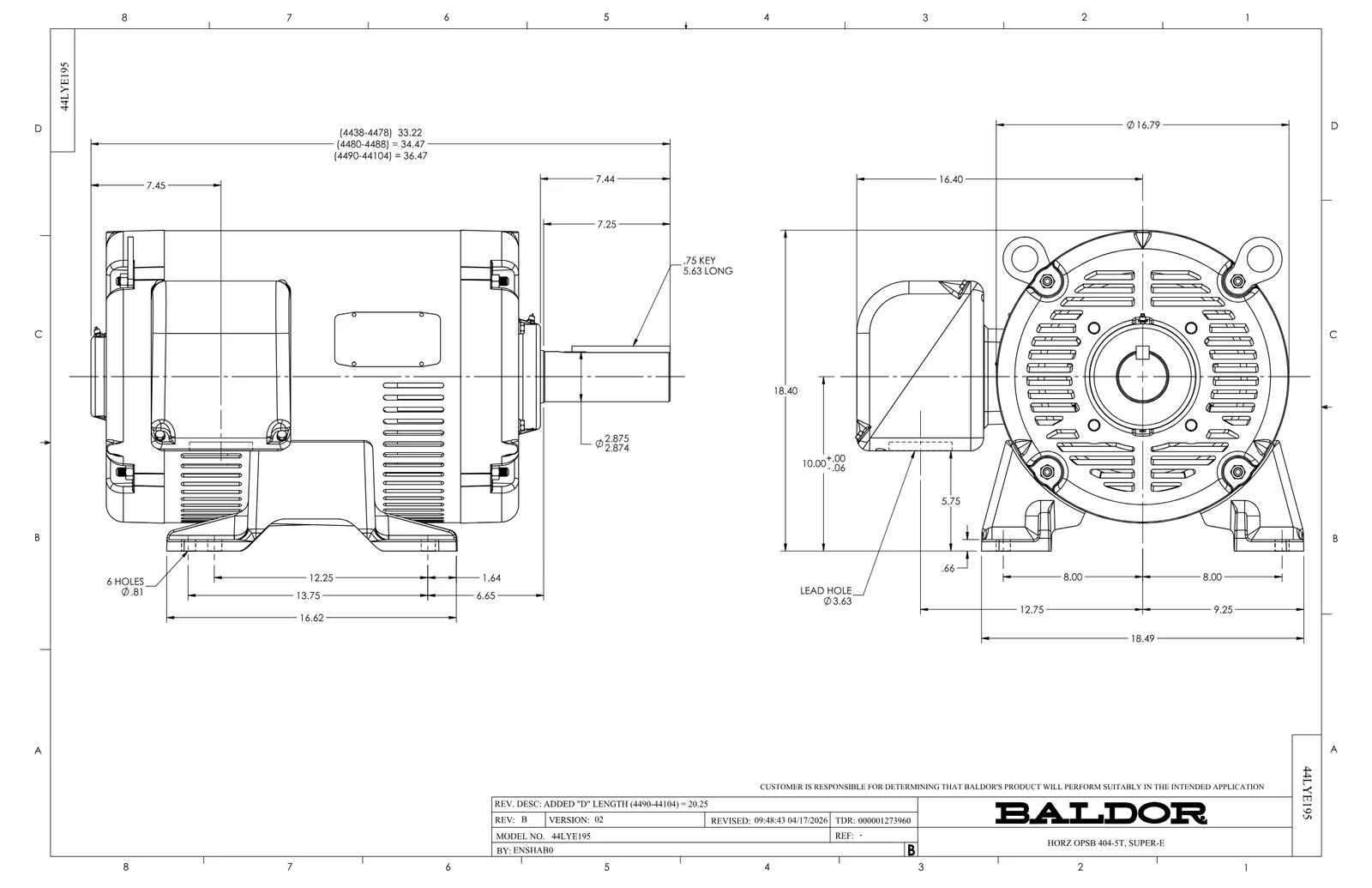

Dimension DrawingDimension SheetPDF·135 KB·English

Technical DrawingDrawingPDF·87 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 4

The genuine spare parts used for servicing and repairing the Baldor EM2559T-4 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
HW1001A31	LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I	9 pcs	1,025 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
MG1050Y01	CELEROL BALDOR GOLD 5 GALLON BUCKET	0.125 gal	1,997 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors

Accessories 1

Genuine accessories that can be used with the Baldor EM2559T-4 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
