How can I get a price quote for Baldor EM2557T-4?

You can request a fast quote for Baldor EM2557T-4 from Yılsa Engineering. Reference part number YLS8IG8HV5BT5BX. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor EM2557T-4 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor EM2557T-4 genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor EM2557T-4?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor EM2557T-4

Baldor-Reliance EM2557T-4 is a 125 HP, 1185 rpm, three-phase 460 V, 60 Hz, 445T frame, ODP enclosure electric motor.

BaldorMFR # EM2557T-4SKU # YLS8IG8HV5BT5BX

EnclosureODP

Frame445T

Frame materialCast Iron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency125.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance EM2557T-4 is a 125 HP, 1185 rpm, three-phase 460 V, 60 Hz, 445T frame, ODP enclosure electric motor.

Baldor EM2557T-4

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureODP

Frame445T

Frame materialCast Iron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency125.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1200 RPM @ 60 HZ

Voltage at frequency460.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUSEEV

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

Current at voltage146.000 A @ 460.0 V

Design codeB

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load95.0 %

Feedback deviceNO FEEDBACK

High voltage full load current (A)146.0 a

Heater indicatorNo Heater

Insulation classF

Inverter codeInverter Ready

KVA codeF

Lifting lugsNo Lifting Lugs

Motor lead quantity/wire size6 @ 4 AWG

Motor typeA44062M

Mounting arrangementF1

Number of poles6

Overall length39.71 IN

Power factor84

Pulley end bearing typeBall

Pulley face codeStandard

Service factor1.15

Shaft diameter3.375 IN

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1185 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodWye Start - Delta Run

Thermal device - bearingNone

Thermal device - windingNone

UPC781568138724

Nameplate

Catalog numberEM2557T-4

Specification numberP44G1772

Horsepower (HP)125

Current (A)146

Voltage (V)460

NEMA design letterB

Frame size445T

Speed (rpm)1185

Frequency (Hz)60

Ambient temperature (°C)40

Service factor1.15

Drive end bearing90BC03J30X

Phase3

DutyCONT

Insulation classF

Opposite drive end bearing90BC03J30X

TypeP

EnclosureDP

Code letter (locked rotor kVA)F

Power factor84

NEMA nominal efficiency (%)95

Maximum correction (kVAR)30.0

Guaranteed efficiency (%)94.5

Nameplate numberNP2377L

Documents & CAD

For this product 3

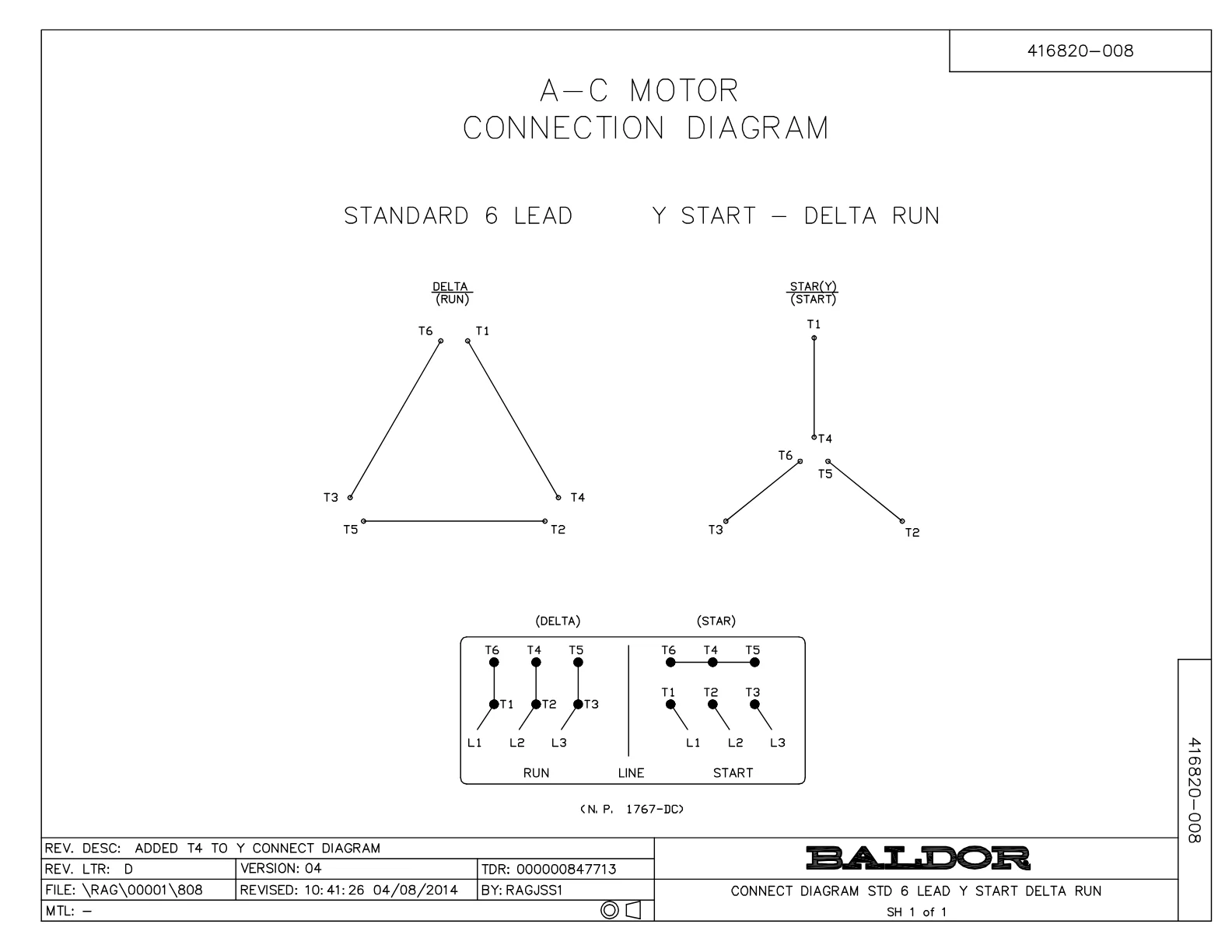

Wiring DiagramWiring DiagramPDF·32 KB·English

DatasheetDatasheetPDF·636 KB·English

Performance CurvePerformance CurvePDF·91 KB·English

Series documents 3· shared by this product series

Dimension DrawingDimension SheetPDF·150 KB·English

Technical DrawingDrawingPDF·862 KB·English

Technical DrawingDrawingPDF·87 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 2

The genuine spare parts used for servicing and repairing the Baldor EM2557T-4 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.
