Baldor EM2556T-4

Baldor-Reliance EM2556T-4 is a 150 HP, 3540 rpm, three-phase 460 V, 60 Hz, 405TS frame, ODP enclosure general purpose electric motor.

BaldorMFR # EM2556T-4SKU # YLSTSEYTAN1O3T

EnclosureODP

Frame405TS

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency150.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance EM2556T-4 is a 150 HP, 3540 rpm, three-phase 460 V, 60 Hz, 405TS frame, ODP enclosure general purpose electric motor.

Baldor EM2556T-4

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureODP

Frame405TS

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency150.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)3600 RPM @ 60 HZ

Voltage at frequency460.0 V @ 60 HZ

Agency approvalsCURUSEEV · NEMA_PREMIUM

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage166.000 A @ 460.0 V

Design codeB

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load94.1 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)166.0 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeNot Inverter

IP ratingNONE

KVA codeH

Lifting lugsStandard Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size6 @ 2 AWG

Motor type4464M

Mounting arrangementF1

Number of poles2

Overall length31.85 IN

Power factor91

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

Service factor1.15

Shaft diameter2.125 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)3540 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodWye Start - Delta Run

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568105436

Nameplate

Catalog numberEM2556T-4

EnclosureOPSB

Specification number44E194W254G1

CC number010A

Frame size405TS

Horsepower (HP)150

Insulation classF

Frequency (Hz)60

Speed (rpm)3540

Phase3

NEMA design letterB

Voltage (V)460

kVA codeH

Opposite drive end bearing6312

Drive end bearing6312

Current (A)166

Rating40C AMB-CONT

GreasePOLYREX EM

NEMA nominal efficiency (%)94.1

Power factor91

Service factor1.15

Nameplate numberNP2138LUA

Performance

General characteristics· 460 V, 60 Hz, 150 hp

Line-to-line resistance at 25 °C (ohms)0.0479 Ω

Temperature rise at rated load (°C)54° C

Temperature rise at service factor load (°C)66° C

Start configurationDOL

Breakdown torque758 lb-ft

Pull-up torque264 lb-ft

Locked-rotor torque315 lb-ft

Starting current (A)1225 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	9	70	86	90	91	91	91	91
Efficiency %	0	90.6	93.8	94.3	94	93.4	93.4	93.6
Speed rpm	3599	3589	3576	3565	3549	3532	3519	3539
Line amps A	37.6	56.5	89.2	126	166	210	247	192
Power W	2662	31419	61041	90521	120340	150900	179084	138676
Torque lb-ft	0	55.7	113	169	224	281	333	258

Documents & CAD

For this product 3

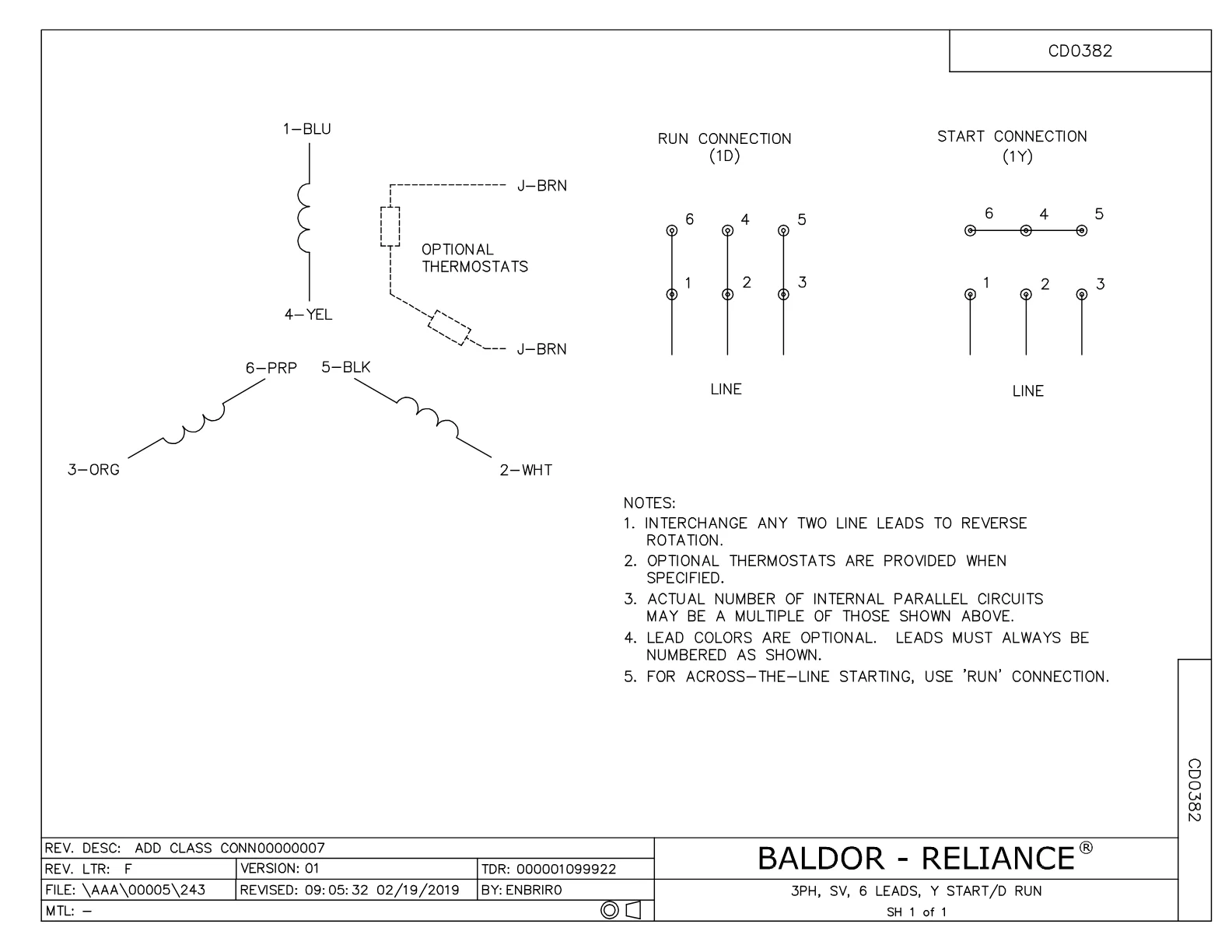

Wiring DiagramWiring DiagramPDF·37 KB·English

DatasheetDatasheetPDF·624 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 2· shared by this product series

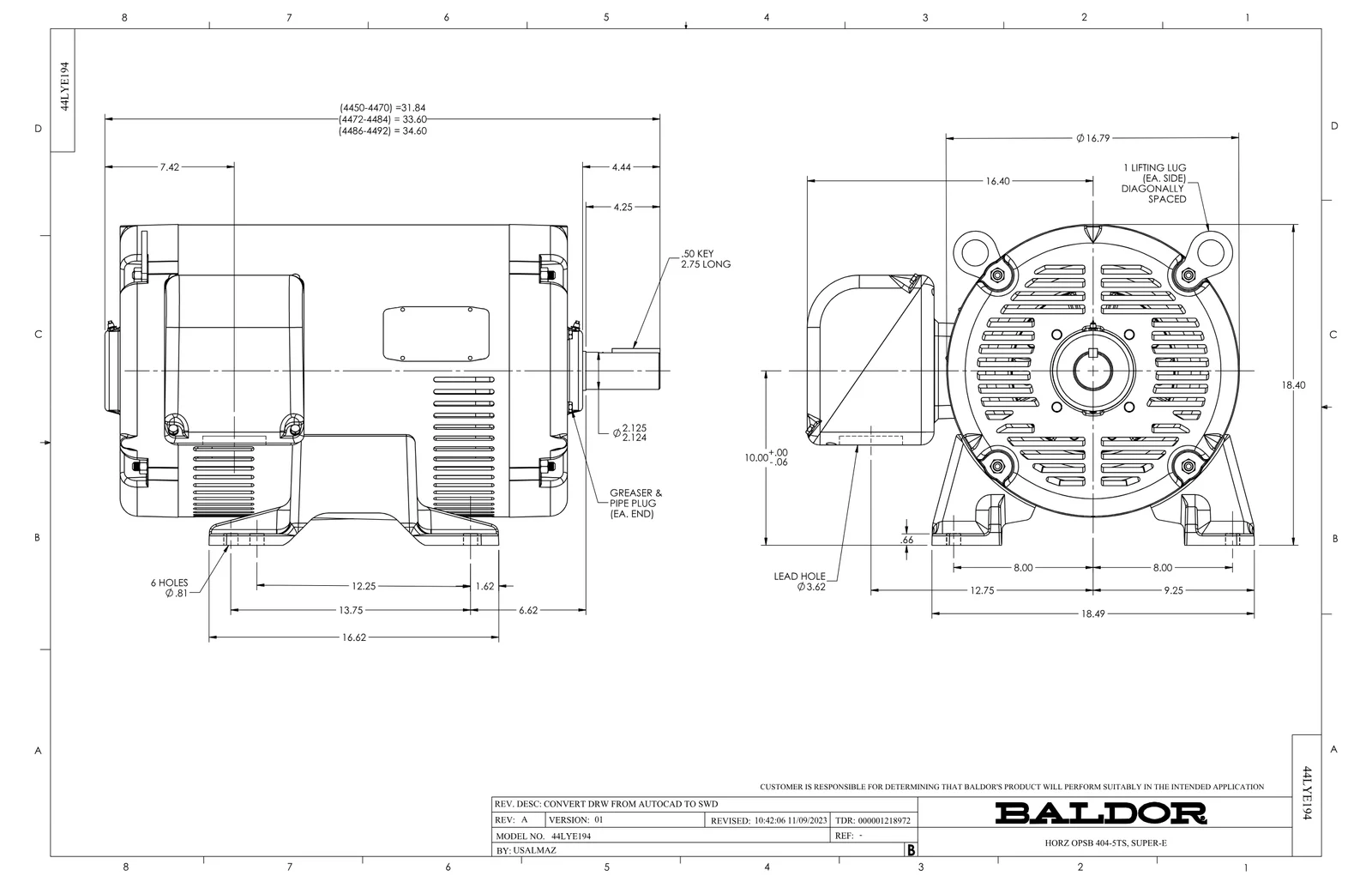

Dimension DrawingDimension SheetPDF·134 KB·English

Technical DrawingDrawingPDF·87 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 4

The genuine spare parts used for servicing and repairing the Baldor EM2556T-4 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
HW1001A31	LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I	13 pcs	1,025 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
MG1050Y01	CELEROL BALDOR GOLD 5 GALLON BUCKET	0.08 gal	1,997 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors

Accessories 1

Genuine accessories that can be used with the Baldor EM2556T-4 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
