Baldor EM2554T-4

Baldor-Reliance EM2554T-4 is a 125 HP, 3540 rpm, three-phase 460 V, 60 Hz, 404TS frame, ODP enclosure general purpose electric motor.

BaldorMFR # EM2554T-4SKU # YLSXQ3NQO3P2NTH

EnclosureODP

Frame404TS

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency125.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance EM2554T-4 is a 125 HP, 3540 rpm, three-phase 460 V, 60 Hz, 404TS frame, ODP enclosure general purpose electric motor.

Baldor EM2554T-4

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureODP

Frame404TS

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency125.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)3600 RPM @ 60 HZ

Voltage at frequency460.0 V @ 60 HZ

Agency approvalsCURUSEEV · NEMA_PREMIUM

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage143.000 A @ 460.0 V

Design codeB

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load94.1 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)143.0 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeInverter Ready

IP ratingNONE

KVA codeG

Lifting lugsStandard Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size6 @ 6 AWG

Motor type4476M

Mounting arrangementF1

Number of poles2

Overall length31.85 IN

Power factor88

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

Service factor1.15

Shaft diameter2.125 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)3540 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodWye Start - Delta Run

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568105399

Nameplate

Catalog numberEM2554T-4

EnclosureOPSB

Specification number44E194W324

CC number010A

Frame size404TS

Horsepower (HP)125

Insulation classF

Frequency (Hz)60

Speed (rpm)3540

Phase3

NEMA design letterB

Voltage (V)460

kVA codeG

Opposite drive end bearing6312

Drive end bearing6312

Current (A)143

Rating40C AMB-CONT

GreasePOLYREX EM

NEMA nominal efficiency (%)94.1

Power factor88

Service factor1.15

Nameplate numberNP2138LUA

Performance

General characteristics· 460 V, 60 Hz, 125 hp

Line-to-line resistance at 25 °C (ohms)0.038466 Ω

Temperature rise at rated load (°C)39° C

Temperature rise at service factor load (°C)48° C

Start configurationDOL

Breakdown torque554 lb-ft

Pull-up torque197 lb-ft

Locked-rotor torque295 lb-ft

Starting current (A)893 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	7	65	83	87	88	89	88	89
Efficiency %	0	91.9	94.5	94.7	94.3	93.7	92.8	93.9
Speed rpm	3598.9	3588.6	3581.9	3573.7	3564.4	3553.5	3541.5	3558
Line amps A	35.7	51	78.3	108	143	179	217	165
Power W	1889	26572	51641	75395	100648	126275	151969	116024
Torque lb-ft	0	46.1	93.1	138	187	231	278	212

Documents & CAD

For this product 3

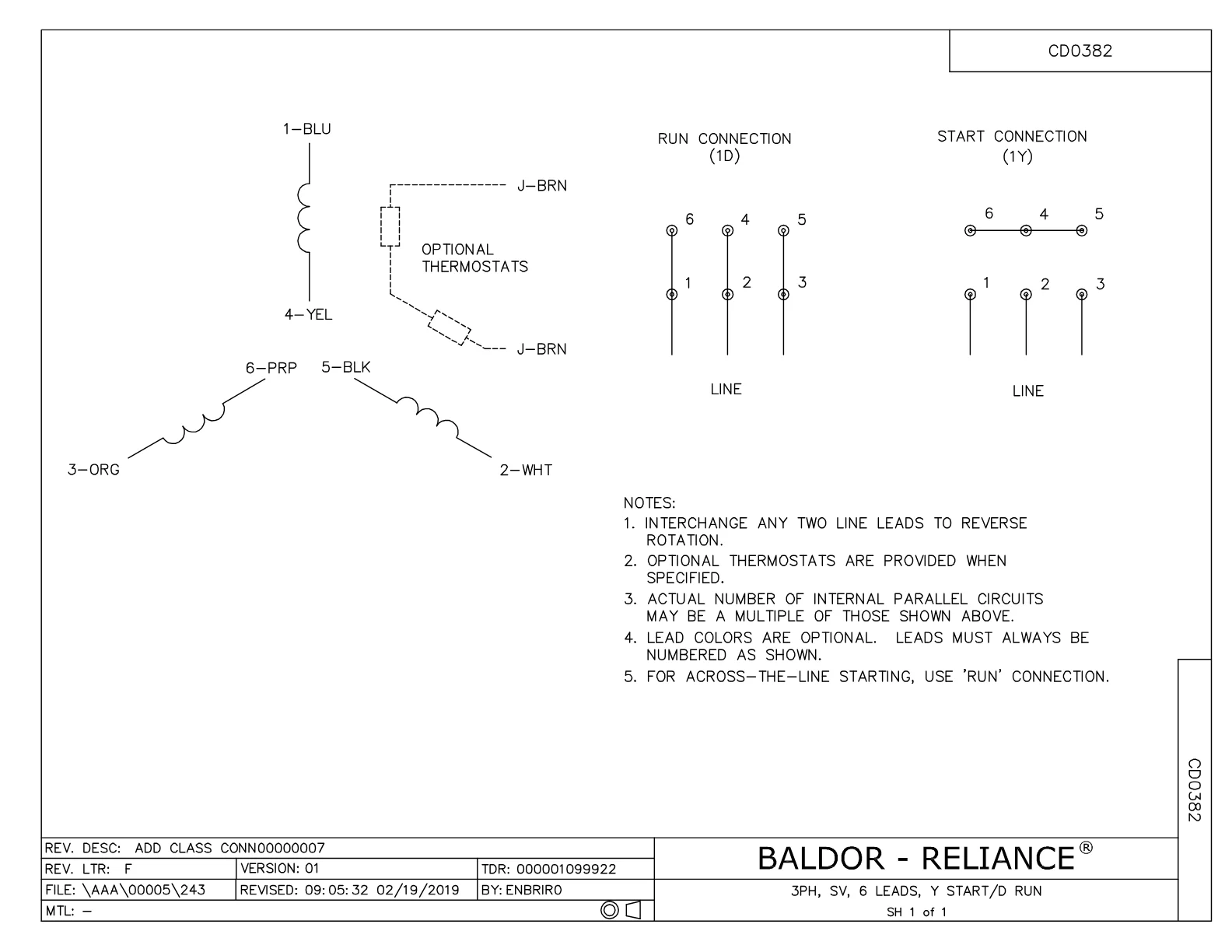

Wiring DiagramWiring DiagramPDF·37 KB·English

DatasheetDatasheetPDF·615 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 2· shared by this product series

Dimension DrawingDimension SheetPDF·134 KB·English

Technical DrawingDrawingPDF·87 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 4

The genuine spare parts used for servicing and repairing the Baldor EM2554T-4 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
HW1001A31	LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I	13 pcs	1,025 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
MG1050Y01	CELEROL BALDOR GOLD 5 GALLON BUCKET	0.08 gal	1,997 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
