Baldor EM2551T-8

General Purpose Motor - 75 hp, 1800 rpm, 3 ph, 200 V, 365T Frame, DP (Drip Proof) Enclosure, 60 Hz, 1780 rpm Base, Foot Mount, Continuous Duty

BaldorMFR # EM2551T-8SKU # YLS055M2OMWTJL4

EnclosureDP

Frame365T

Frame materialIron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency75.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

General Purpose Motor - 75 hp, 1800 rpm, 3 ph, 200 V, 365T Frame, DP (Drip Proof) Enclosure, 60 Hz, 1780 rpm Base, Foot Mount, Continuous Duty

Baldor EM2551T-8

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureDP

Frame365T

Frame materialIron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency75.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency200.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUSEEV

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

Current at voltage202.000 A @ 200.0 V

Design codeB

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load95.0 %

Feedback deviceNO FEEDBACK

High voltage full load current (A)202.0 a

Heater indicatorNo Heater

Insulation classF

Inverter codeInverter Ready

KVA codeG

Lifting lugsNo Lifting Lugs

Motor lead quantity/wire size6 @ 6 AWG

Motor typeA3658M

Mounting arrangementF1

Number of poles4

Overall length29.70 IN

Power factor84

Product familyOther

Pulley end bearing typeBall

Pulley face codeStandard

Service factor1.15

Shaft diameter2.374 IN

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorShaft Slinger

Speed (rpm)1785 rpm

Speed codeSingle Speed

Motor standardsOther

Starting methodPart Winding

Thermal device - bearingNone

Thermal device - windingNone

UPC781568119280

Motor Supply Voltage200 V

Base RPM1780 rpm

Mounting TypeFoot

Weight808 lbs

ApplicationsPumps, fans, compressors, blowers, machine tools, conveyors and many other applications requiring 200 volt power.

Additional Details1.15 Service Factor, positively locked drive end bearing on 254T and larger, ball bearings, dynamically balanced rotors.

Harmonization Code8501.52.8040

Motor CategoryGeneral Purpose Motor

Product TypeGeneral Purpose Motors

Nameplate

Catalog numberEM2551T-8

Specification numberP36G3422

Horsepower (HP)75

Current (A)202

Voltage (V)200

NEMA design letterB

Frame size365T

Speed (rpm)1785

Frequency (Hz)60

Ambient temperature (°C)40

Service factor1.15

Drive end bearing65BC03J30X

Phase3

DutyCONT

Insulation classF

Opposite drive end bearing65BC03J30X

TypeP

EnclosureDP

Code letter (locked rotor kVA)G

Power factor84

NEMA nominal efficiency (%)95

Maximum correction (kVAR)19

Guaranteed efficiency (%)94.1

Nameplate numberNP2377L

Documents & CAD

For this product 2

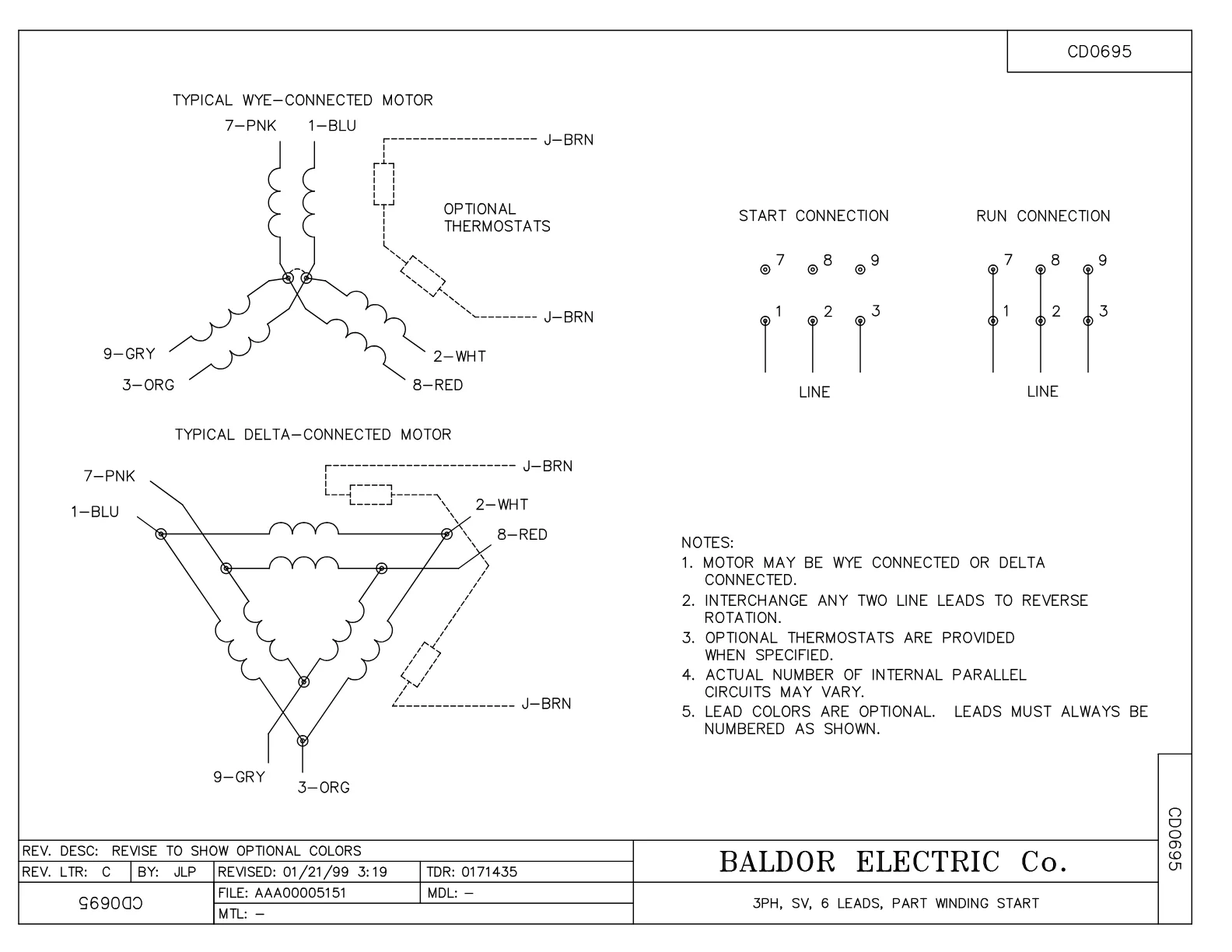

Wiring DiagramWiring DiagramPDF·51 KB·English

DatasheetDatasheetPDF·562 KB·English

Series documents 3· shared by this product series

Dimension DrawingDimension SheetPDF·138 KB·English

Technical DrawingDrawingPDF·862 KB·English

Technical DrawingDrawingPDF·87 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 3

The genuine spare parts used for servicing and repairing the Baldor EM2551T-8 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
076709000A	C/B Cover - 360	1 pcs	179 motors
067053000B	GASK 320-400	1 pcs	179 motors
000692000VD	LABEL WARNING	1 pcs	544 motors
