How can I get a price quote for Baldor EM2547T-8?

You can request a fast quote for Baldor EM2547T-8 from Yılsa Engineering. Reference part number YLSZ4L3IV2YKF4I. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor EM2547T-8 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor EM2547T-8 genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor EM2547T-8?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor EM2547T-8

General Purpose Motor - 60 hp, 1800 rpm, 3 ph, 200 V, 364T Frame, OPSB (Open Slotted Band) Enclosure, 60 Hz, 1775 rpm Base, Foot Mount, Continuous Duty

BaldorMFR # EM2547T-8SKU # YLSZ4L3IV2YKF4I

EnclosureOPSB

Frame364T

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency60.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

General Purpose Motor - 60 hp, 1800 rpm, 3 ph, 200 V, 364T Frame, OPSB (Open Slotted Band) Enclosure, 60 Hz, 1775 rpm Base, Foot Mount, Continuous Duty

Baldor EM2547T-8

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureOPSB

Frame364T

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency60.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency200.0 V @ 60 HZ

Agency approvalsNEMA PREMIUM · CURUSEEV

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage153.000 A @ 208.0 V · 160.000 A @ 200.0 V

Design codeA

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load95.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)160.0 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeInverter Ready

IP ratingNONE

KVA codeG

Lifting lugsStandard Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size6 @ 4 AWG

Motor type4278M

Mounting arrangementF1

Number of poles4

Overall length30.69 IN

Power factor87

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

Service factor1.15

Shaft diameter2.375 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1775 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodPart Winding

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568119266

Motor Supply Voltage200 V

Base RPM1775 rpm

Mounting TypeFoot

Weight752 lbs

ApplicationsPumps, fans, compressors, blowers, machine tools, conveyors and many other applications requiring 200 volt power.

Additional Details1.15 Service Factor, positively locked drive end bearing on 254T and larger, ball bearings, dynamically balanced rotors.

Harmonization Code8501.52.8040

Motor CategoryGeneral Purpose Motor

Product TypeGeneral Purpose Motors

Nameplate

Catalog numberEM2547T-8

EnclosureOPSB

Specification number42E211W588

CC number010A

Frame size364T

Horsepower (HP)60

Insulation classF

Frequency (Hz)60

Speed (rpm)1775

Phase3

NEMA design letterA

Voltage (V)200

kVA codeG

Opposite drive end bearing6311

Drive end bearing6313

Current (A)160

Rating40C AMB-CONT

GreasePOLYREX EM

NEMA nominal efficiency (%)95

Power factor87

Service factor1.15

Nameplate numberNP2138L

Performance

General characteristics· 200 V, 60 Hz, 60 hp

Line-to-line resistance at 25 °C (ohms)0.0158 Ω

Temperature rise at rated load (°C)30° C

Temperature rise at service factor load (°C)40° C

Start configurationDOL

Breakdown torque624 lb-ft

Pull-up torque245 lb-ft

Locked-rotor torque314 lb-ft

Starting current (A)1080 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	5	56	77	85	87	89	89	88
Efficiency %	0	92.6	94.9	95.3	95	94.6	93.7	94.8
Speed rpm	1799	1793	1787	1781	1775	1769	1762	1771
Line amps A	51.1	62.8	89	120	155	192	233	177.2
Power W	885	12170	23671	35239	46974	58767	70916	54050
Torque lb-ft	0	44.25	88.5	132.75	177	221.25	265.5	204

Documents & CAD

For this product 3

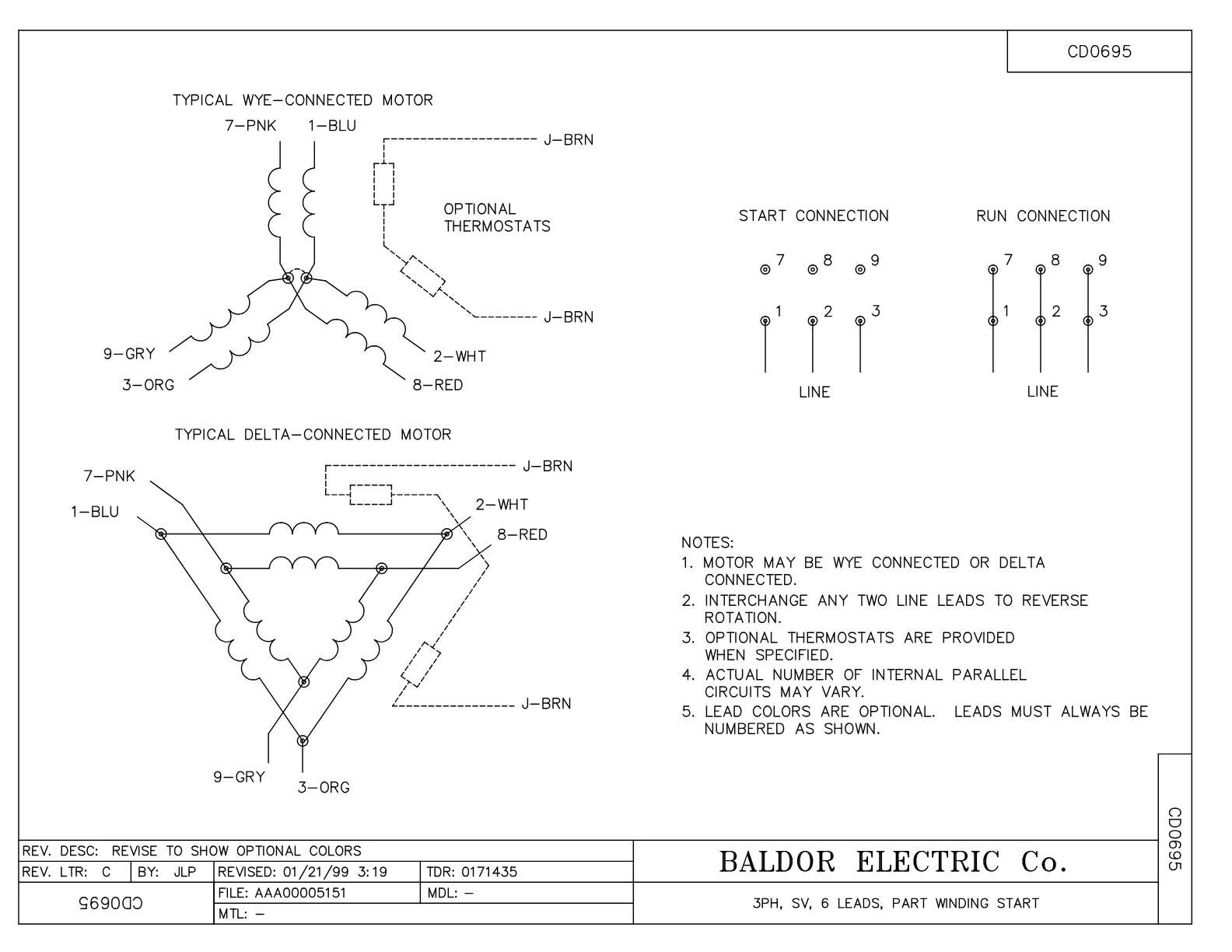

Wiring DiagramWiring DiagramPDF·51 KB·English

DatasheetDatasheetPDF·625 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 2· shared by this product series

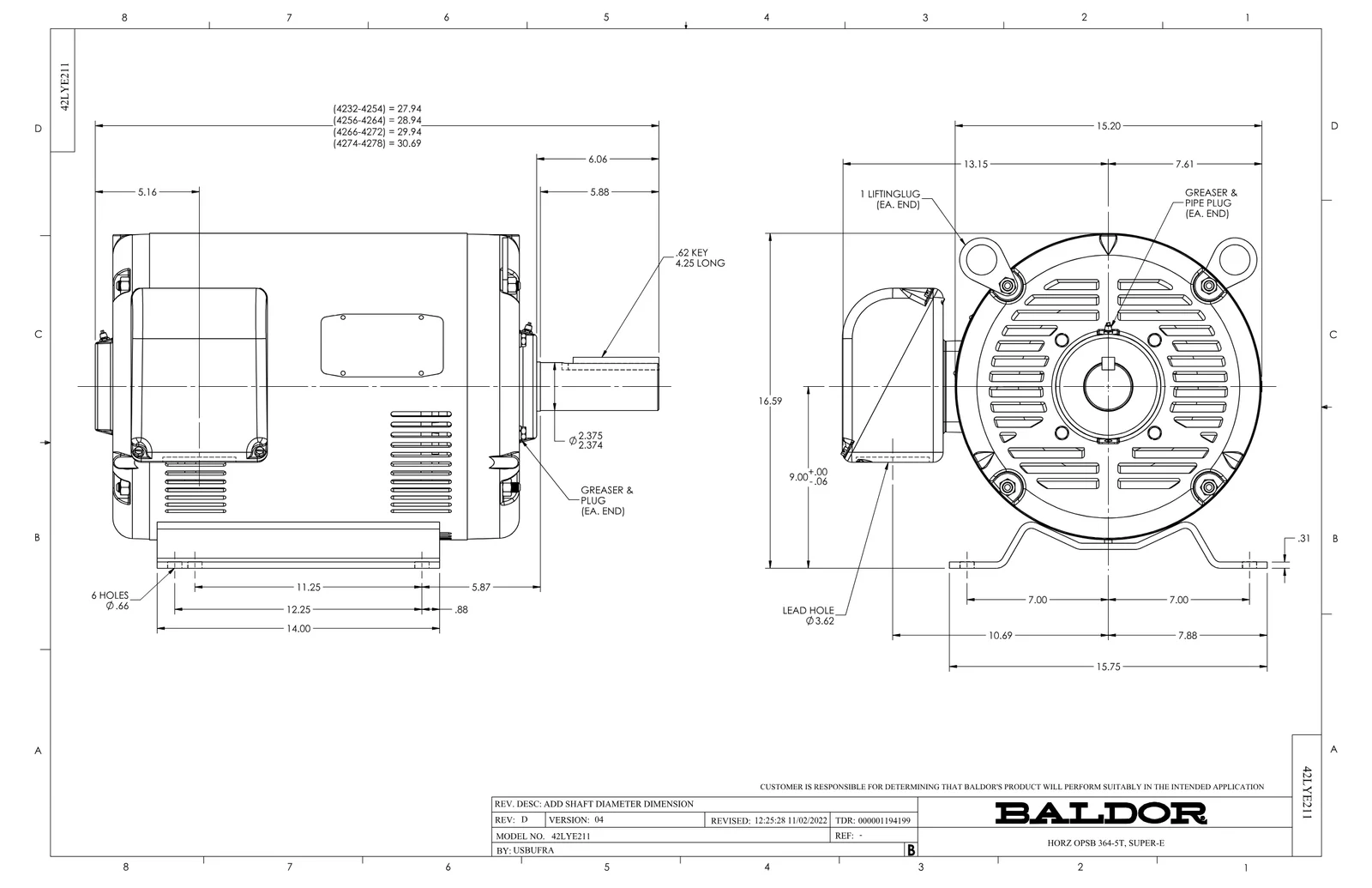

Dimension DrawingDimension SheetPDF·121 KB·English

Technical DrawingDrawingPDF·87 KB·English

CAD Files 8

3D Model

2D Drawing

Spare Parts 5

The genuine spare parts used for servicing and repairing the Baldor EM2547T-8 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
HW1001A31	LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I	6 pcs	1,025 motors
51XW2520A12	.25-20 X .75, TAPTITE II, HEX WSHR SLTD	4 pcs	1,543 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
MG1050Y01	CELEROL BALDOR GOLD 5 GALLON BUCKET	0.08 gal	1,997 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors

Accessories 1

Genuine accessories that can be used with the Baldor EM2547T-8 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
