Baldor EM2543T-8

Baldor-Reliance EM2543T-8 is a 50 HP, 1775 rpm, three-phase 200 V, 60 Hz, 326T frame, OPSB enclosure general purpose electric motor.

BaldorMFR # EM2543T-8SKU # YLSNMI8B0I0PZHM

EnclosureOPSB

Frame326T

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency50.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance EM2543T-8 is a 50 HP, 1775 rpm, three-phase 200 V, 60 Hz, 326T frame, OPSB enclosure general purpose electric motor.

Baldor EM2543T-8

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureOPSB

Frame326T

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency50.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency200.0 V @ 60 HZ

Agency approvalsCURUSEEV · NEMA PREMIUM · NEMA_PREMIUM

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage131.000 A @ 208.0 V · 132.000 A @ 200.0 V

Design codeA

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load94.5 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)132.0 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeInverter Ready

KVA codeG

Lifting lugsStandard Lifting Lugs

Locked bearing indicatorNo Locked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size6 @ 6 AWG

Motor type4256M

Mounting arrangementF1

Number of poles4

Overall length27.69 IN

Power factor87

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

Service factor1.15

Shaft diameter2.125 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1775 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodPart Winding

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568119235

Nameplate

Catalog numberEM2543T-8

EnclosureOPSB

Specification number42F056W479

CC number010A

Frame size326T

Horsepower (HP)50

Insulation classF

Frequency (Hz)60

Speed (rpm)1775

Phase3

NEMA design letterA

Voltage (V)200

Code letter (locked rotor kVA)G

Opposite drive end bearing6311

Drive end bearing6312

Current (A)132

Rating40C AMB-CONT

NEMA nominal efficiency (%)94.5

GreasePOLYREX EM

Power factor87

Service factor1.15

Nameplate numberNP3554L

Performance

General characteristics· 200 V, 60 Hz, 50 hp

Line-to-line resistance at 25 °C (ohms)0.0235 Ω

Temperature rise at rated load (°C)36° C

Temperature rise at service factor load (°C)43° C

Start configurationDOL

Breakdown torque423 lb-ft

Pull-up torque234 lb-ft

Locked-rotor torque283 lb-ft

Starting current (A)877 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	5	47	70	80	87	86	86	86
Efficiency %	0	90	93.6	94.4	94.5	94.1	94	94.3
Speed rpm	1799	1795	1790	1785	1779	1774	1768	1776
Line amps A	48	64	83	108	132	166	200	152.4
Power W	831	10482	20101	29813	39575	49539	59309	45553
Torque lb-ft	0	37	74	111	148	185	222	170

Documents & CAD

For this product 3

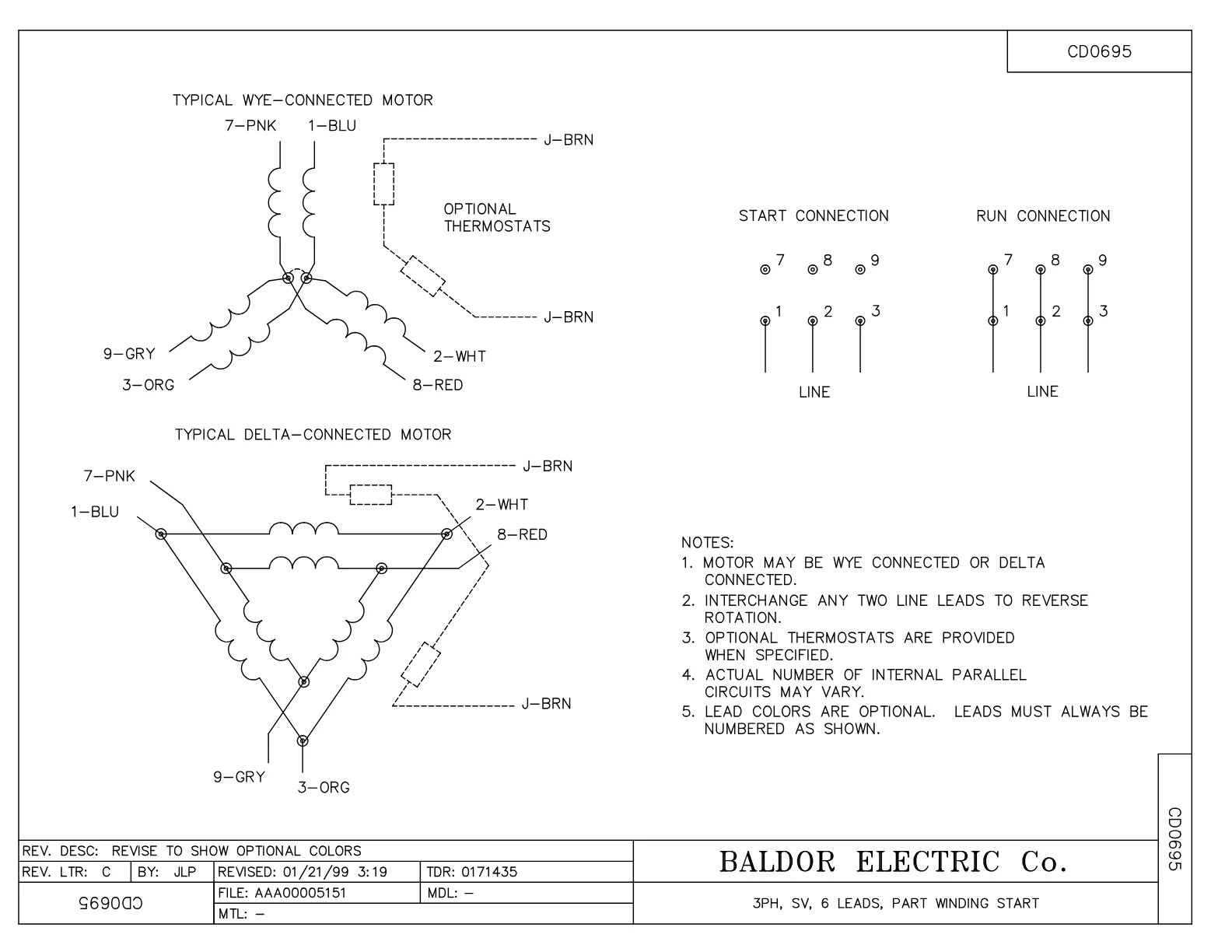

Wiring DiagramWiring DiagramPDF·51 KB·English

DatasheetDatasheetPDF·626 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 2· shared by this product series

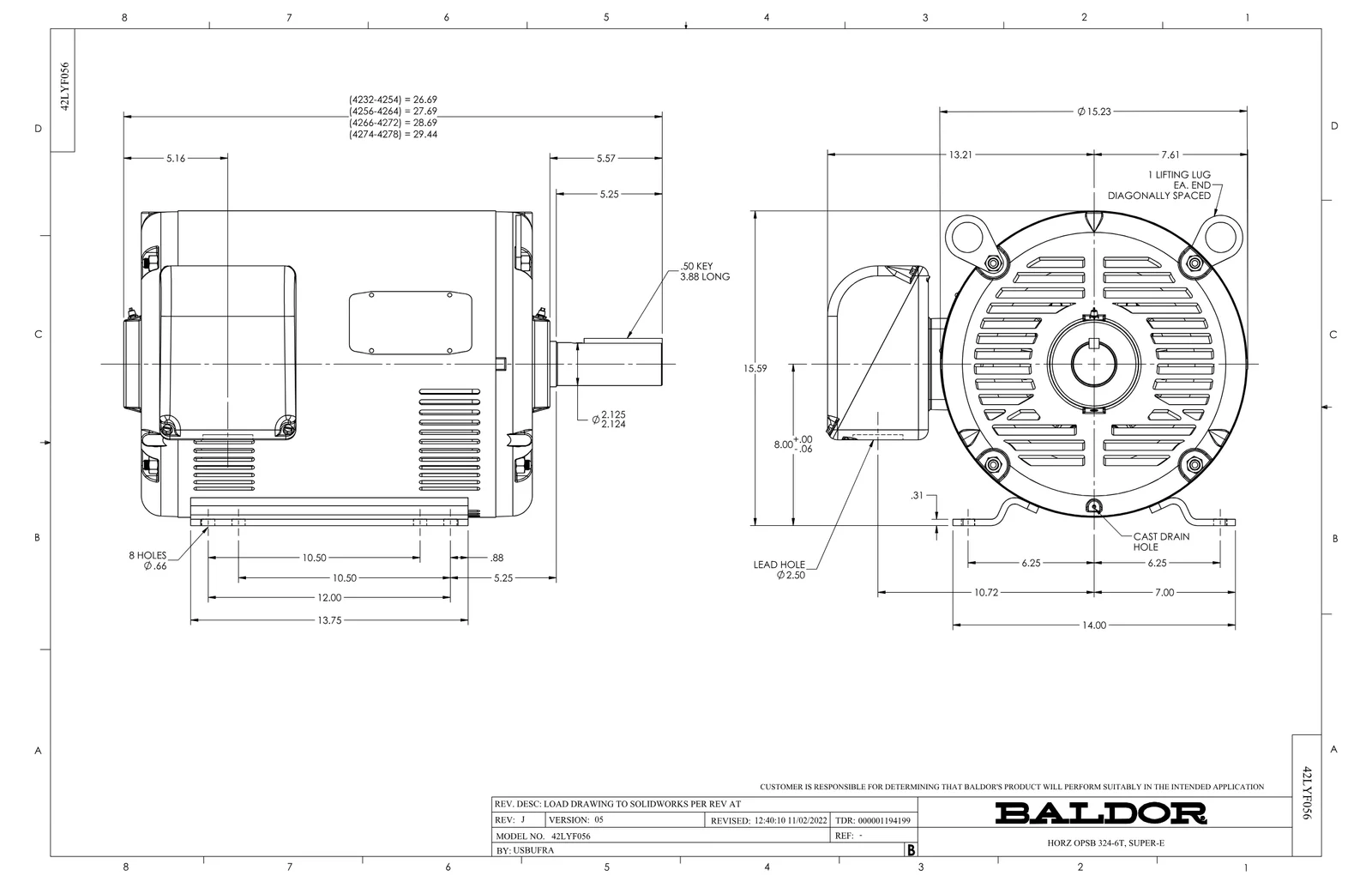

Dimension DrawingDimension SheetPDF·120 KB·English

Technical DrawingDrawingPDF·87 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 5

The genuine spare parts used for servicing and repairing the Baldor EM2543T-8 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
HW1001A31	LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I	6 pcs	1,025 motors
51XW2520A12	.25-20 X .75, TAPTITE II, HEX WSHR SLTD	4 pcs	1,543 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
MG1050Y01	CELEROL BALDOR GOLD 5 GALLON BUCKET	0.08 gal	1,997 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors

Accessories 2

Genuine accessories that can be used with the Baldor EM2543T-8 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
