Baldor EM2540T

Baldor-Reliance EM2540T is a 40 HP, 1180 rpm, three-phase 230/460 V, 60 Hz, 364T frame, OPSB enclosure general purpose electric motor.

BaldorMFR # EM2540TSKU # YLSONF2EDCNNGFM

EnclosureOPSB

Frame364T

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency40.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance EM2540T is a 40 HP, 1180 rpm, three-phase 230/460 V, 60 Hz, 364T frame, OPSB enclosure general purpose electric motor.

Baldor EM2540T

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureOPSB

Frame364T

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency40.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1200 RPM @ 60 HZ

Voltage at frequency230.0 V @ 60 HZ · 460.0 V @ 60 HZ

Agency approvalsNEMA PREMIUM (OLD LOGO) · NEMA PREMIUM · CURUSEEV

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage104.000 A @ 230.0 V · 51.000 A @ 460.0 V

Design codeA

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load94.1 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)51.0 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeNot Inverter

KVA codeH

Lifting lugsStandard Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size9 @ 8 AWG

Motor type4278M

Mounting arrangementF1

Number of poles6

Overall length30.69 IN

Power factor79

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

Service factor1.15

Shaft diameter2.375 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1180 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568138687

Nameplate

Catalog numberEM2540T

EnclosureOPSB

Specification number42F100W920G1

CC number010A

Frame size364T

Horsepower (HP)40

Insulation classF

Frequency (Hz)60

Speed (rpm)1180

Phase3

NEMA design letterA

Voltage (V)230/460

kVA codeH

Opposite drive end bearing6311

Drive end bearing6313

Current (A)104/51

Rating40C AMB-CONT

GreasePOLYREX EM

NEMA nominal efficiency (%)94.1

Power factor79

Service factor1.15

Nameplate numberNP2138LUA

Performance

General characteristics· 460 V, 60 Hz, 40 hp

Line-to-line resistance at 25 °C (ohms)0.154 Ω

Temperature rise at rated load (°C)41° C

Temperature rise at service factor load (°C)50° C

Start configurationDOL

Breakdown torque521 lb-ft

Pull-up torque232 lb-ft

Locked-rotor torque317 lb-ft

Starting current (A)337 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	4	43	64	74	79	81	82	80
Efficiency %	0	89.3	93.1	94.1	94.1	93.3	92.2	93.6
Speed rpm	1199	1195	1191	1187	1183	1177	1170	1179
Line amps A	21.9	24.8	31.6	40.5	50.9	62.2	77.5	57.7
Power W	657	8514	16197	23959	31970	40197	50384	36906
Torque lb-ft	0	44.5	88.6	133	178	223	278	205

Documents & CAD

For this product 4

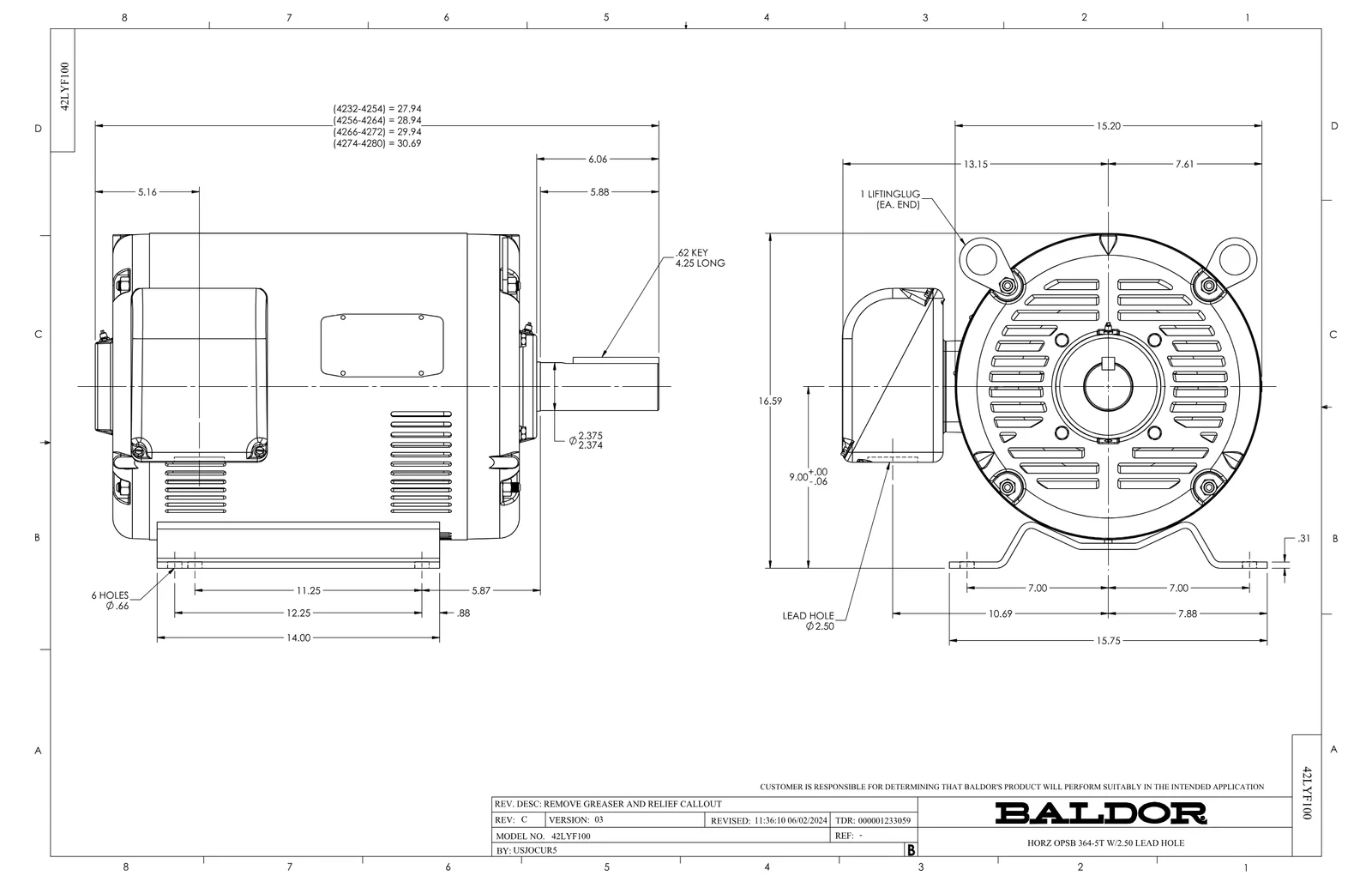

Dimension DrawingDimension SheetPDF·120 KB·English

Wiring DiagramWiring DiagramPDF·41 KB·English

DatasheetDatasheetPDF·606 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 1· shared by this product series

Technical DrawingDrawingPDF·87 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 5

The genuine spare parts used for servicing and repairing the Baldor EM2540T motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
HW1001A31	LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I	6 pcs	1,025 motors
51XW2520A12	.25-20 X .75, TAPTITE II, HEX WSHR SLTD	4 pcs	1,543 motors
MG1050Y01	CELEROL BALDOR GOLD 5 GALLON BUCKET	0.08 gal	1,997 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
