Baldor EM2539T-8

Baldor-Reliance EM2539T-8 is a 40 HP, 1770 rpm, three-phase 200 V, 60 Hz, 324T frame, ODP enclosure general purpose electric motor.

BaldorMFR # EM2539T-8SKU # YLS4LXQWBOUZFSE

EnclosureODP

Frame324T

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency40.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance EM2539T-8 is a 40 HP, 1770 rpm, three-phase 200 V, 60 Hz, 324T frame, ODP enclosure general purpose electric motor.

Baldor EM2539T-8

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureODP

Frame324T

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency40.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency200.0 V @ 60 HZ

Agency approvalsNEMA_PREMIUM · CURUSEEV

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage109.000 A @ 200.0 V

Design codeA

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load94.1 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)109.0 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeInverter Ready

KVA codeH

Lifting lugsStandard Lifting Lugs

Locked bearing indicatorNo Locked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size6 @ 4 AWG

Motor type4064M

Mounting arrangementF1

Number of poles4

Overall length27.19 IN

Power factor84

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

Service factor1.15

Shaft diameter2.125 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1770 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodPart Winding

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568119204

Nameplate

Catalog numberEM2539T-8

EnclosureOPSB

Specification number40J002X238G1

CC number010A

Frame size324T

Horsepower (HP)40

Insulation classF

Frequency (Hz)60

Speed (rpm)1770

Phase3

NEMA design letterA

Voltage (V)200

Code letter (locked rotor kVA)H

Opposite drive end bearing6309

Drive end bearing6312

Current (A)109

Rating40C AMB-CONT

NEMA nominal efficiency (%)94.1

GreasePOLYREX EM

Power factor84

Service factor1.15

Nameplate numberNP3554L

Performance

General characteristics· 200 V, 60 Hz, 40 hp

Line-to-line resistance at 25 °C (ohms)0.03 Ω

Temperature rise at rated load (°C)41° C

Temperature rise at service factor load (°C)49° C

Start configurationDOL

Breakdown torque415 lb-ft

Pull-up torque181 lb-ft

Locked-rotor torque238 lb-ft

Starting current (A)734 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	3	44	68	78	84	86	86	85
Efficiency %	0	92.9	94.6	94.9	94.4	93.6	93	94
Speed rpm	1799	1792	1785	1777	1770	1761	1752	1765
Line amps A	45.2	52.1	67.5	87.3	109	134	162	124
Power W	483	8004	15791	23637	31674	39816	48198	36559
Torque lb-ft	0	29.2	58.9	88.8	119	149	180	137

Documents & CAD

For this product 3

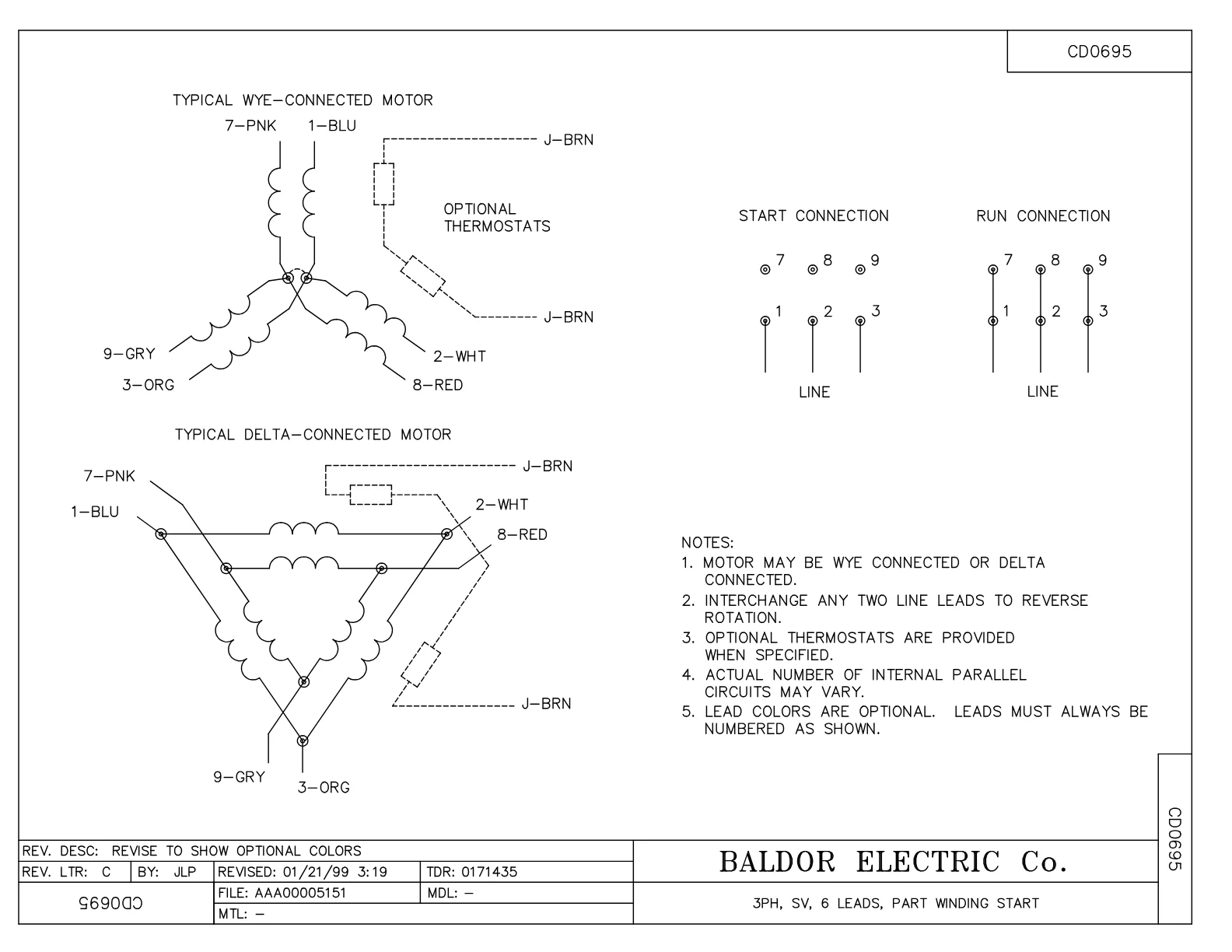

Wiring DiagramWiring DiagramPDF·51 KB·English

DatasheetDatasheetPDF·628 KB·English

Performance CurvePerformance CurvePDF·61 KB·English

Series documents 2· shared by this product series

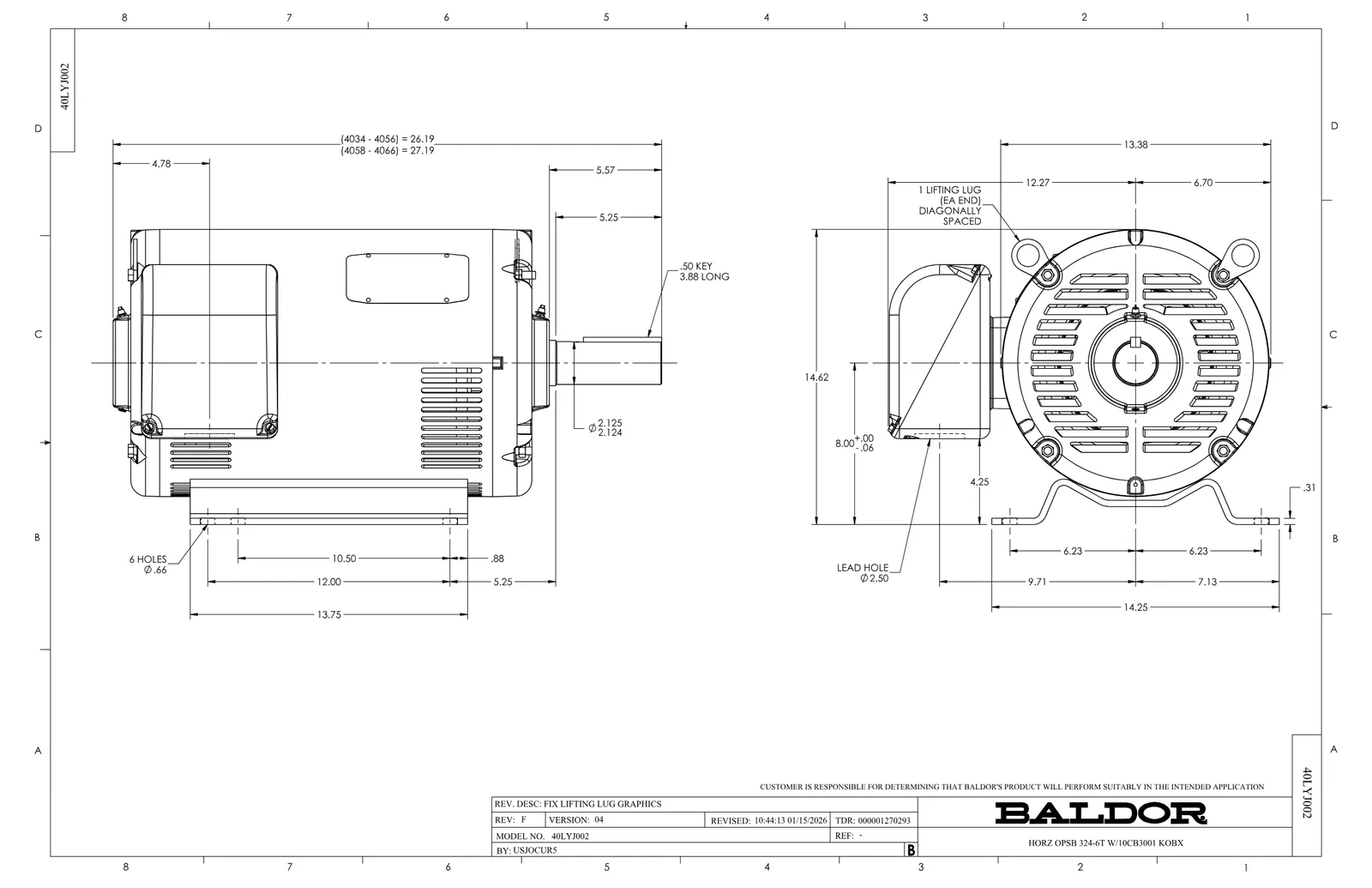

Dimension DrawingDimension SheetPDF·122 KB·English

Technical DrawingDrawingPDF·87 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 5

The genuine spare parts used for servicing and repairing the Baldor EM2539T-8 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
HW1001A31	LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I	6 pcs	1,025 motors
51XW2520A12	.25-20 X .75, TAPTITE II, HEX WSHR SLTD	4 pcs	1,543 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
MG1050Y01	CELEROL BALDOR GOLD 5 GALLON BUCKET	0.03 gal	1,997 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
