Baldor EM2532T

Baldor-Reliance EM2532T is a 25 HP, 1180 rpm, three-phase 230/460 V, 60 Hz, 324T frame, OPSB enclosure general purpose electric motor.

BaldorMFR # EM2532TSKU # YLSSHUROOCWIXOM

EnclosureOPSB

Frame324T

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency25.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance EM2532T is a 25 HP, 1180 rpm, three-phase 230/460 V, 60 Hz, 324T frame, OPSB enclosure general purpose electric motor.

Baldor EM2532T

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureOPSB

Frame324T

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency25.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1200 RPM @ 60 HZ

Voltage at frequency230.0 V @ 60 HZ · 460.0 V @ 60 HZ

Agency approvalsNEMA PREMIUM (OLD LOGO) · NEMA PREMIUM · CURUSEEV

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage34.000 A @ 460.0 V · 68.000 A @ 230.0 V

Design codeA

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load93.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)34.0 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeInverter Ready

IP ratingNONE

KVA codeJ

Lifting lugsStandard Lifting Lugs

Locked bearing indicatorNo Locked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size9 @ 10 AWG

Motor type4072M

Mounting arrangementF1

Number of poles6

Overall length27.69 IN

Power factor76

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

Service factor1.15

Shaft diameter2.125 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1180 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568105016

Nameplate

Catalog numberEM2532T

EnclosureOPSB

Specification number40E212X192

CC number010A

Frame size324T

Horsepower (HP)25

Insulation classF

Frequency (Hz)60

Speed (rpm)1180

Phase3

NEMA design letterA

Voltage (V)230/460

kVA codeJ

Opposite drive end bearing6309

Drive end bearing6312

Current (A)68/34

Rating40C AMB-CONT

GreasePOLYREX EM

NEMA nominal efficiency (%)93

Power factor76

Service factor1.15

Nameplate numberNP2138LUA

Performance

General characteristics· 460 V, 60 Hz, 25 hp

Line-to-line resistance at 25 °C (ohms)0.29283 Ω

Temperature rise at rated load (°C)40° C

Temperature rise at service factor load (°C)48° C

Start configurationDOL

Breakdown torque410 lb-ft

Pull-up torque205 lb-ft

Locked-rotor torque217 lb-ft

Starting current (A)236 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	4	36	57	69	76	79	80	78
Efficiency %	0	88	92.3	93.2	93.2	92.7	92	92.9
Speed rpm	1198.9	1195.9	1192.3	1188.4	1184.9	1180.9	1176.1	1182
Line amps A	16.7	18.5	22.3	27.4	33.5	40.3	47.8	37.6
Power W	586	5348	10203	15182	20153	25264	30461	23220
Torque lb-ft	0	27.4	55	83.2	111	139	167	128

Documents & CAD

For this product 3

Wiring DiagramWiring DiagramPDF·37 KB·English

DatasheetDatasheetPDF·606 KB·English

Performance CurvePerformance CurvePDF·61 KB·English

Series documents 2· shared by this product series

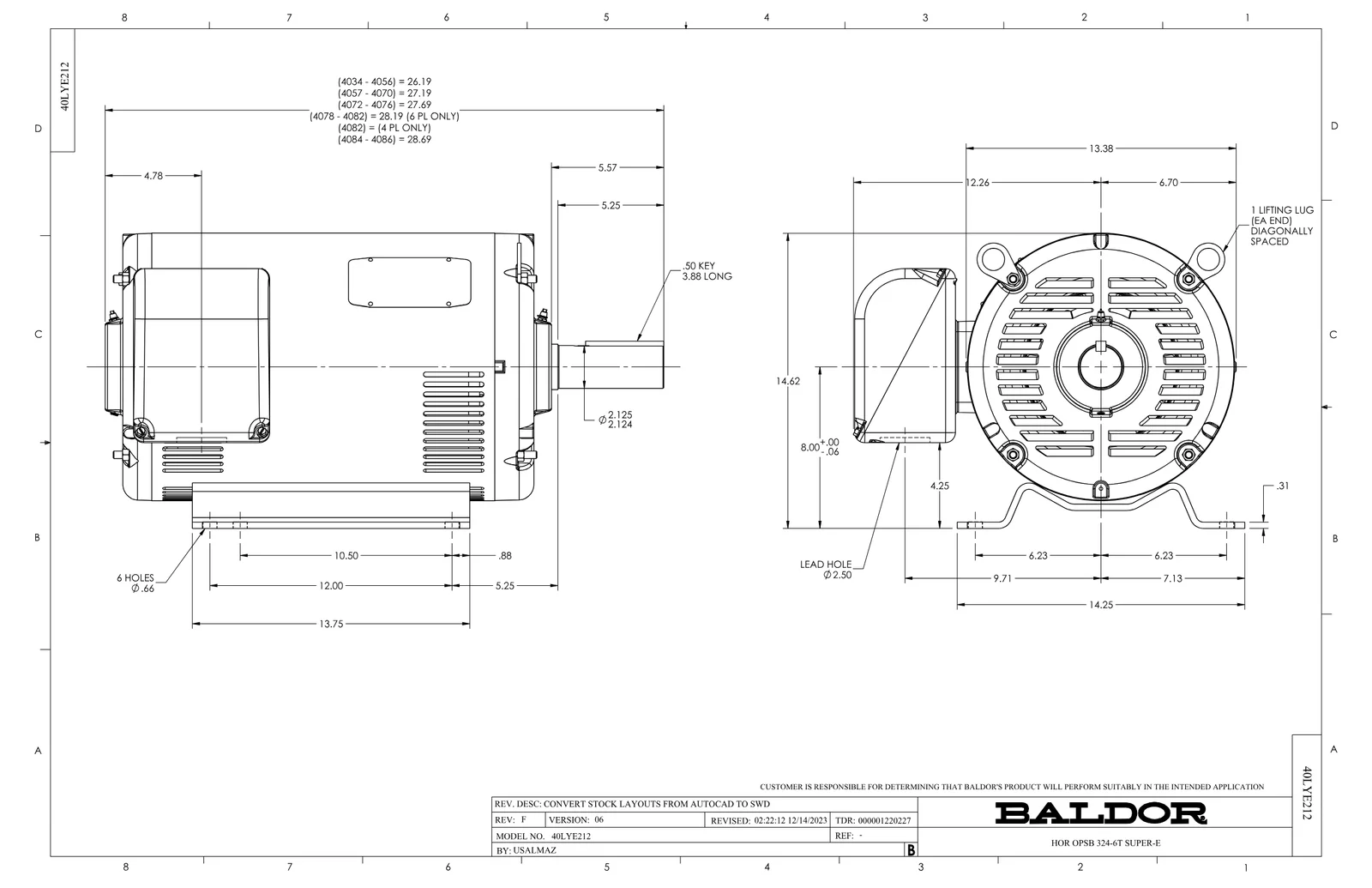

Dimension DrawingDimension SheetPDF·122 KB·English

Technical DrawingDrawingPDF·87 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 5

The genuine spare parts used for servicing and repairing the Baldor EM2532T motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
HW1001A31	LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I	6 pcs	1,025 motors
51XW2520A12	.25-20 X .75, TAPTITE II, HEX WSHR SLTD	4 pcs	1,543 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
MG1050Y01	CELEROL BALDOR GOLD 5 GALLON BUCKET	0.03 gal	1,997 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
