Baldor EM2531T-5

General Purpose Motor - 25 hp, 1800 rpm, 3 ph, 575 V, 284T Frame, OPSB (Open Slotted Band) Enclosure, 60 Hz, 1770 rpm Base, Foot Mount, Continuous Duty

BaldorMFR # EM2531T-5SKU # YLSVXC3DC7BH75V

EnclosureOPSB

Frame284T

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency25.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

General Purpose Motor - 25 hp, 1800 rpm, 3 ph, 575 V, 284T Frame, OPSB (Open Slotted Band) Enclosure, 60 Hz, 1770 rpm Base, Foot Mount, Continuous Duty

Baldor EM2531T-5

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureOPSB

Frame284T

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency25.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency575.0 V @ 60 HZ

Agency approvalsNEMA PREMIUM (OLD LOGO) · NEMA PREMIUM · CURUSEEV

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage24.500 A @ 575.0 V

Design codeA

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load93.6 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)24.5 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeInverter Ready

IP ratingNONE

KVA codeG

Lifting lugsStandard Lifting Lugs

Locked bearing indicatorNo Locked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size3 @ 10 AWG

Motor type4050M

Mounting arrangementF1

Number of poles4

Overall length25.06 IN

Power factor82

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

Service factor1.15

Shaft diameter1.875 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1770 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568118726

Motor Supply Voltage575 V

Base RPM1770 rpm

Mounting TypeFoot

Warranty3 Year Warranty

Type Of BearingBall

Weight330 lbs

ApplicationsPumps, compressors, fans, conveyors, machine tools and other applications where 575 volt three phase power is available.

Additional Details1.15 Service Factor or greater, ball bearings, dynamically balanced rotors, heavy-gauge steel and cast iron frames.

Harmonization Code8501.52.8040

Motor CategoryGeneral Purpose Motor

Product TypeGeneral Purpose Motors

Nameplate

Catalog numberEM2531T-5

EnclosureOPSB

Specification number40G048X795

CC number010A

Frame size284T

Horsepower (HP)25

Insulation classF

Frequency (Hz)60

Speed (rpm)1770

Phase3

NEMA design letterA

Voltage (V)575

Code letter (locked rotor kVA)G

Opposite drive end bearing6309

Drive end bearing6311

Current (A)24.5

Rating40C AMB-CONT

NEMA nominal efficiency (%)93.6

GreasePOLYREX EM

Power factor82

Service factor1.15

Nameplate numberNP3554L

Performance

General characteristics· 575 V, 60 Hz, 25 hp

Line-to-line resistance at 25 °C (ohms)0.508 Ω

Temperature rise at rated load (°C)28° C

Temperature rise at service factor load (°C)35° C

Start configurationDOL

Breakdown torque220 lb-ft

Pull-up torque94.1 lb-ft

Locked-rotor torque128 lb-ft

Starting current (A)155 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	5	44	67	77	82	83	83	82
Efficiency %	0	89.6	93	93.8	93.6	93.1	92.3	93.3
Speed rpm	1799	1793	1787	1780	1773	1765	1755	1768
Line amps A	10.6	11.8	15.1	19.4	24.5	29.9	36	27.7
Power W	490	5214	10058	14923	19856	24832	29931	22842
Torque lb-ft	0	18.5	37	55.5	74	92.5	111	85.1

Documents & CAD

For this product 3

Wiring DiagramWiring DiagramPDF·38 KB·English

DatasheetDatasheetPDF·618 KB·English

Performance CurvePerformance CurvePDF·61 KB·English

Series documents 2· shared by this product series

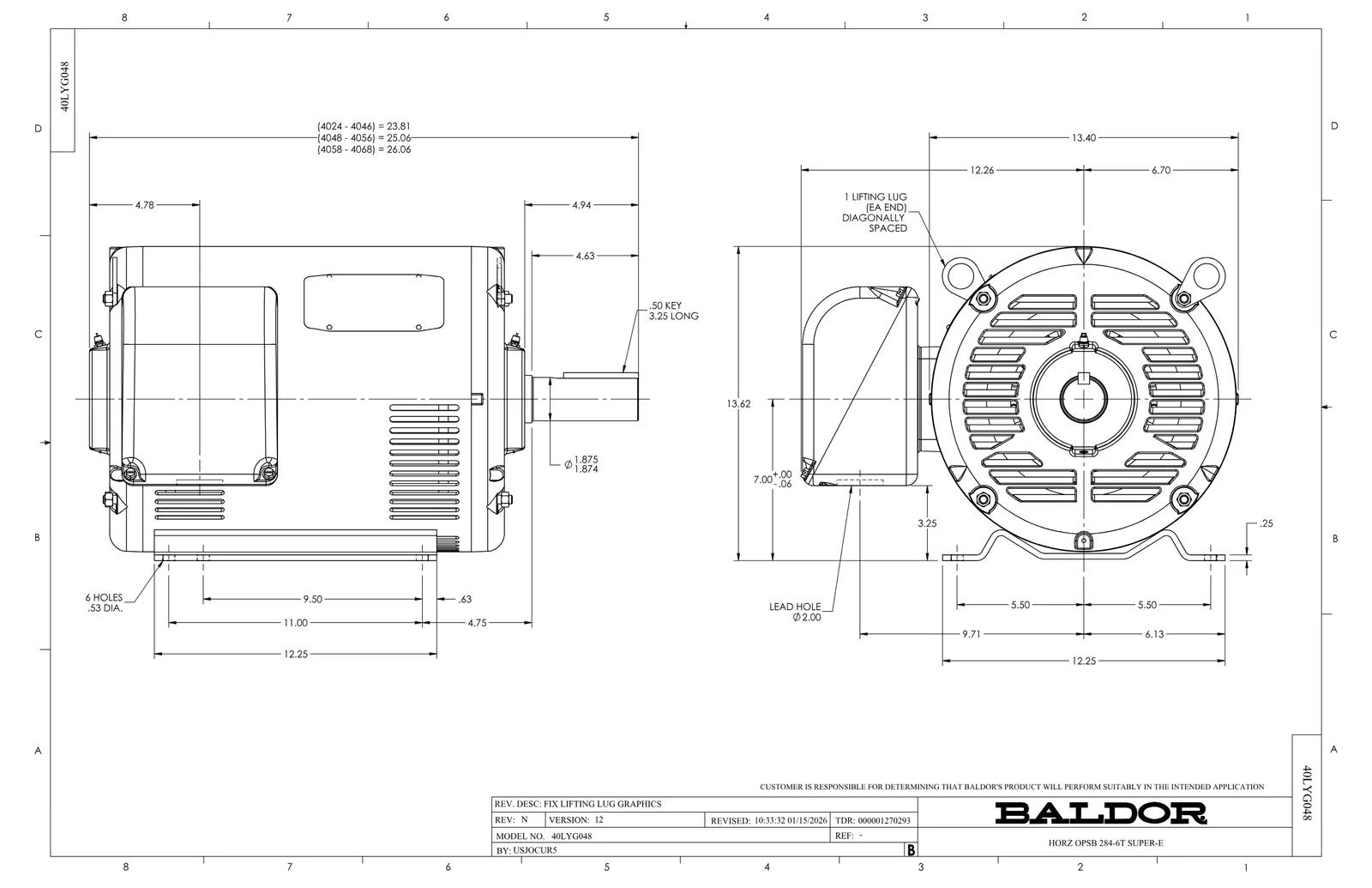

Dimension DrawingDimension SheetPDF·126 KB·English

Technical DrawingDrawingPDF·87 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 6

The genuine spare parts used for servicing and repairing the Baldor EM2531T-5 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
HW1001A31	LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I	2 pcs	1,025 motors
10CB3000SP	KOBX, CAST W/2.00 LEAD HOLE	1 pcs	220 motors
51XW2520A12	.25-20 X .75, TAPTITE II, HEX WSHR SLTD	4 pcs	1,543 motors
MG1050Y01	CELEROL BALDOR GOLD 5 GALLON BUCKET	0.125 gal	1,997 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors

Accessories 1

Genuine accessories that can be used with the Baldor EM2531T-5 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
