Baldor EM2513T

Baldor-Reliance EM2513T is a 15 HP, 1770 rpm, three-phase 230/460 V, 60 Hz, 254T frame, OPSB enclosure general purpose electric motor.

BaldorMFR # EM2513TSKU # YLSTK0SUR1AU5B1

EnclosureOPSB

Frame254T

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency15.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance EM2513T is a 15 HP, 1770 rpm, three-phase 230/460 V, 60 Hz, 254T frame, OPSB enclosure general purpose electric motor.

Baldor EM2513T

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureOPSB

Frame254T

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency15.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency460.0 V @ 60 HZ · 230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUSEEV · NEMA PREMIUM · NEMA PREMIUM (OLD LOGO)

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage18.200 A @ 460.0 V · 36.400 A @ 230.0 V

Design codeA

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load93.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)18.2 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeInverter Ready

IP ratingNONE

KVA codeJ

Lifting lugsStandard Lifting Lugs

Locked bearing indicatorNo Locked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size9 @ 12 AWG

Motor type3948M

Mounting arrangementF1

Number of poles4

Overall length23.19 IN

Power factor83

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

Service factor1.15

Shaft diameter1.625 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1770 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568104842

Nameplate

Catalog numberEM2513T

EnclosureOPSB

Specification number39K057Y375

CC number010A

Frame size254T

Horsepower (HP)15

Insulation classF

Frequency (Hz)60

Speed (rpm)1770

Phase3

NEMA design letterA

Voltage (V)230/460

Code letter (locked rotor kVA)J

Opposite drive end bearing6208

Drive end bearing6309

Current (A)36.4/18.2

Rating40C AMB-CONT

NEMA nominal efficiency (%)93

GreasePOLYREX EM

Power factor83

Service factor1.15

Usable at (V)50HZ 15HP 190/380V 44/22A

Nameplate numberNP3554LUA

Performance

General characteristics· 460 V, 60 Hz, 15 hp

Line-to-line resistance at 25 °C (ohms)0.5794 Ω

Temperature rise at rated load (°C)29° C

Temperature rise at service factor load (°C)35° C

Start configurationDOL

Breakdown torque171 lb-ft

Pull-up torque79.1 lb-ft

Locked-rotor torque100 lb-ft

Starting current (A)137 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	5	45	68	78	83	86	87	85
Efficiency %	0	88.6	92.6	93.3	93.1	92.5	91.7	92.7
Speed rpm	1799	1794.2	1788	1781.2	1773.7	1766.3	1758.2	1769
Line amps A	7.62	8.77	11.2	14.5	18.2	22.1	26.4	20.5
Power W	327	3179	6071	9020	12052	15120	18315	13893
Torque lb-ft	0	11.06	22.14	33.28	44.57	55.8	67.28	51.3

Documents & CAD

For this product 3

Wiring DiagramWiring DiagramPDF·37 KB·English

DatasheetDatasheetPDF·621 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 2· shared by this product series

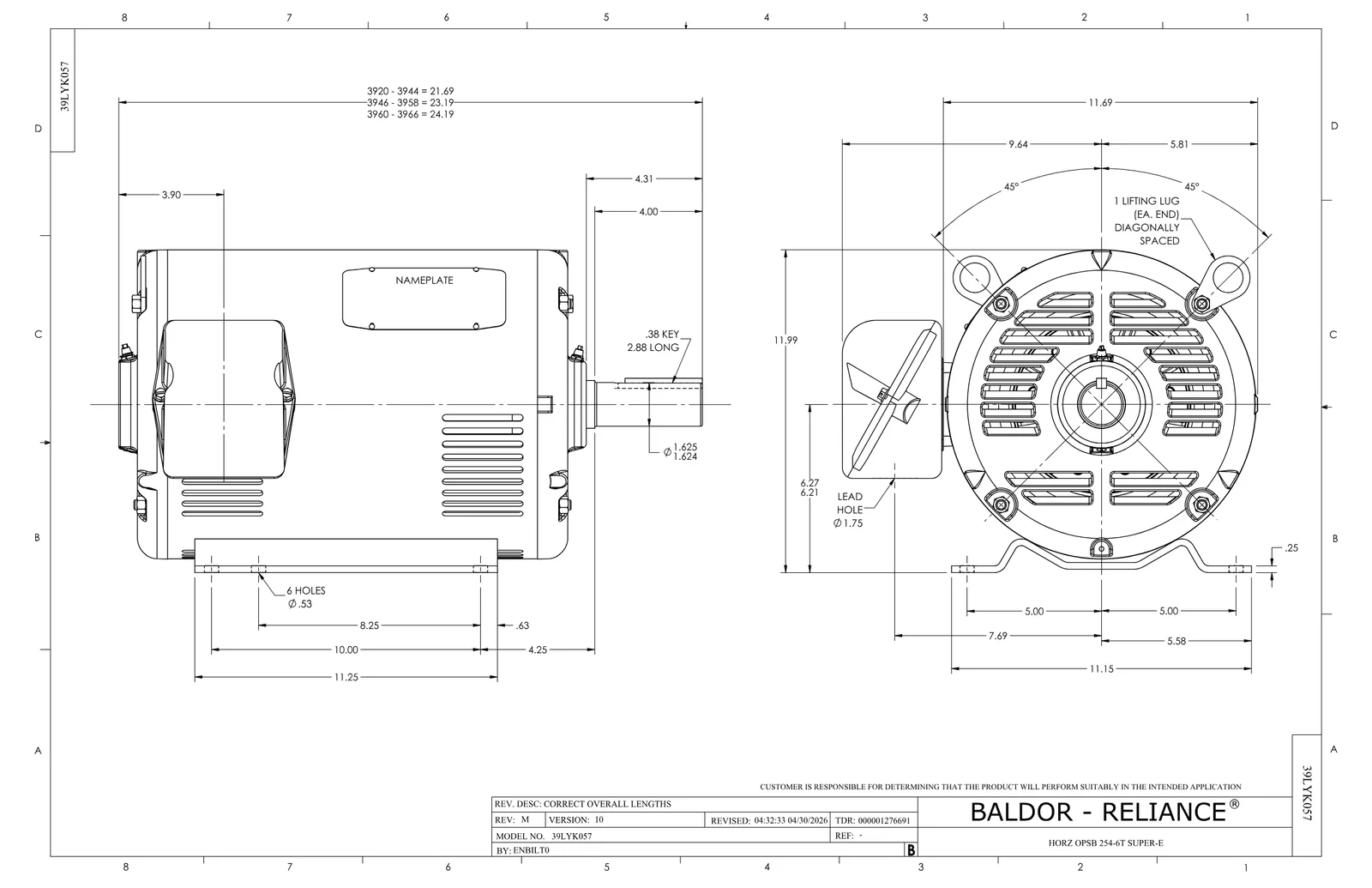

Dimension DrawingDimension SheetPDF·126 KB·English

Technical DrawingDrawingPDF·87 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 6

The genuine spare parts used for servicing and repairing the Baldor EM2513T motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
51XW2520A12	.25-20 X .75, TAPTITE II, HEX WSHR SLTD	4 pcs	1,543 motors
39EP3200A01SP	FR/PU ENDPLATE, MACH	1 pcs	100 motors
09CB3501SP	CONDUIT BOX LID FOR 09CB3001 & 09CB3002	1 pcs	392 motors
MG1050Y01	CELEROL BALDOR GOLD 5 GALLON BUCKET	0.05 gal	1,997 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors

Accessories 1

Genuine accessories that can be used with the Baldor EM2513T motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
