Baldor EM251302T-4

General Purpose Motor - 300 hp, 3600 rpm, 3 ph, 460 V, 447TS Frame, DP (Drip Proof) Enclosure, 60 Hz, 3565 rpm Base, Rigid Base Mount, Continuous Duty

BaldorMFR # EM251302T-4SKU # YLSAFLDA2DORGF3

EnclosureDP

Frame447TS

Frame materialIron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency300.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

General Purpose Motor - 300 hp, 3600 rpm, 3 ph, 460 V, 447TS Frame, DP (Drip Proof) Enclosure, 60 Hz, 3565 rpm Base, Rigid Base Mount, Continuous Duty

Baldor EM251302T-4

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureDP

Frame447TS

Frame materialIron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency300.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)3600 RPM @ 60 HZ

Voltage at frequency460.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUSEEV

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

Current at voltage334.000 A @ 460.0 V

Design codeB

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load95.4 %

Feedback deviceNO FEEDBACK

High voltage full load current (A)334.0 a

Heater indicatorNo Heater

Insulation classF

Inverter codeInverter Ready

IP ratingNONE

KVA codeG

Lifting lugsStandard Lifting Lugs

Motor lead quantity/wire size6 @ 2/0 AWG

Motor typeA44084M

Mounting arrangementF1

Number of poles2

Overall length39.37 IN

Power factor88

Product familyGeneral Industrial

Pulley end bearing typeBall

Pulley face codeStandard

Service factor1.15

Shaft diameter2.375 IN

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)3565 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodWye Start - Delta Run

Thermal device - bearingNone

Thermal device - windingNone

UPC781568778616

Motor Supply Voltage460 V

Base RPM3565 rpm

Mounting TypeRigid Base

Weight1899 lbs

Motor CategoryGeneral Purpose Motor

Product TypeGeneral Purpose Motors

Nameplate

Nameplate numberNP2496L

Documents & CAD

For this product 3

Wiring DiagramWiring DiagramPDF·32 KB·English

DatasheetDatasheetPDF·753 KB·English

Performance CurvePerformance CurvePDF·148 KB·English

Series documents 3· shared by this product series

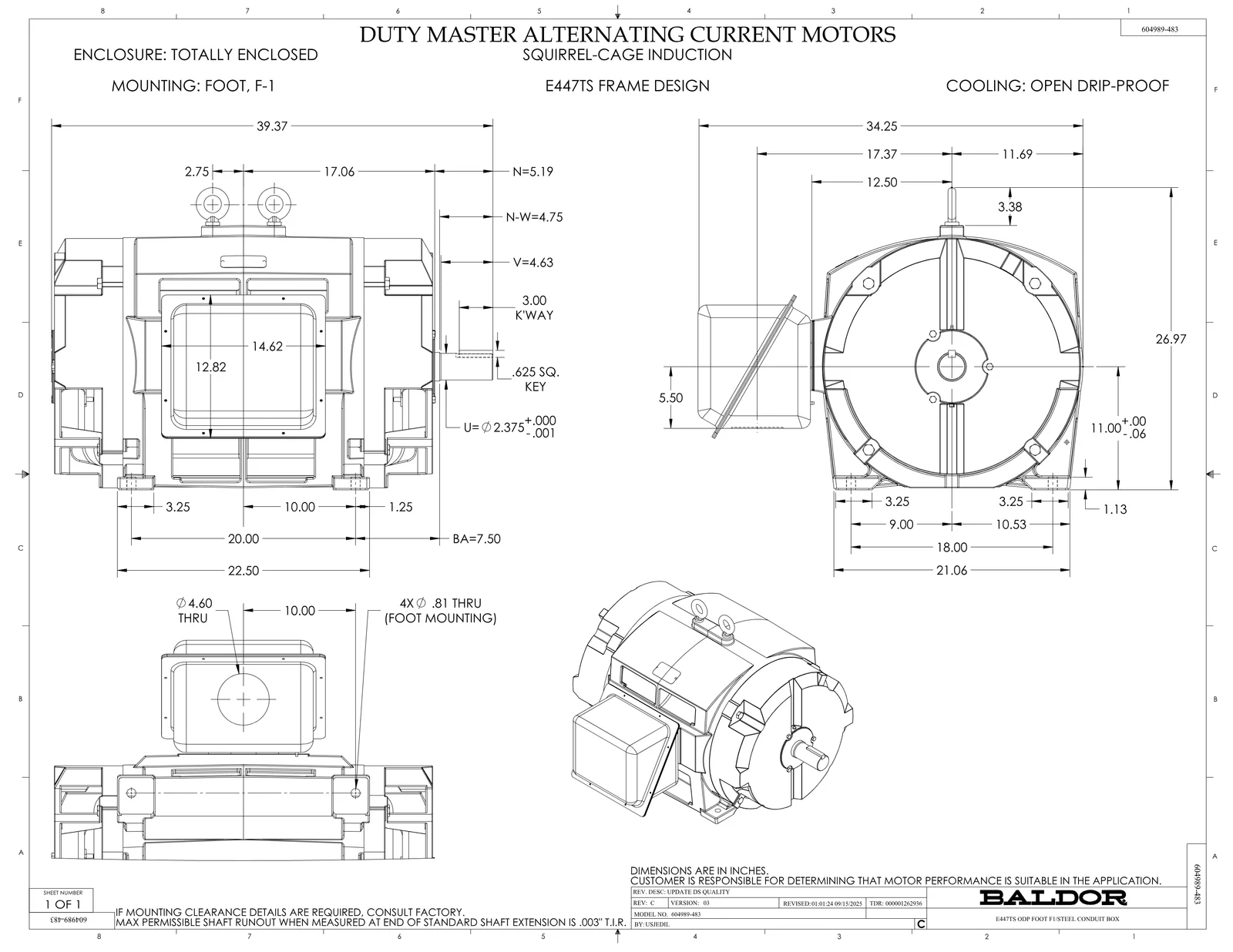

Dimension DrawingDimension SheetPDF·206 KB·English

Technical DrawingDrawingPDF·862 KB·English

Technical DrawingDrawingPDF·87 KB·English

Spare Parts 2

The genuine spare parts used for servicing and repairing the Baldor EM251302T-4 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.
