How can I get a price quote for Baldor EM251152T-4?

You can request a fast quote for Baldor EM251152T-4 from Yılsa Engineering. Reference part number YLSSHK0AFKNAUDG. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor EM251152T-4 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor EM251152T-4 genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor EM251152T-4?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor EM251152T-4

Baldor-Reliance EM251152T-4 is a 150 HP, 3560 rpm, three-phase 460 V, 60 Hz, 405TS frame, ODP enclosure general industrial electric motor.

BaldorMFR # EM251152T-4SKU # YLSSHK0AFKNAUDG

EnclosureODP

Frame405TS

Frame materialCast Iron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency150.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance EM251152T-4 is a 150 HP, 3560 rpm, three-phase 460 V, 60 Hz, 405TS frame, ODP enclosure general industrial electric motor.

Baldor EM251152T-4

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureODP

Frame405TS

Frame materialCast Iron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency150.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)3600 RPM @ 60 HZ

Voltage at frequency460.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUSEEV

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

Current at voltage167.000 A @ 460.0 V

Design codeB

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load95.4 %

Feedback deviceNO FEEDBACK

High voltage full load current (A)167.0 a

Heater indicatorNo Heater

Insulation classB

Inverter codeInverter Ready

IP ratingNONE

KVA codeG

Lifting lugsStandard Lifting Lugs

Motor lead quantity/wire size6 @ 2 AWG

Motor typeA40058M

Mounting arrangementF1

Number of poles2

Overall length30.93 IN

Power factor88

Product familyGeneral Industrial

Pulley end bearing typeBall

Pulley face codeStandard

Service factor1.15

Shaft diameter2.125 IN

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)3560 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodWye Start - Delta Run

Thermal device - bearingNone

Thermal device - windingNone

UPC781568778487

Nameplate

Nameplate numberNP2496L

Documents & CAD

For this product 4

Dimension DrawingDimension SheetPDF·176 KB·English

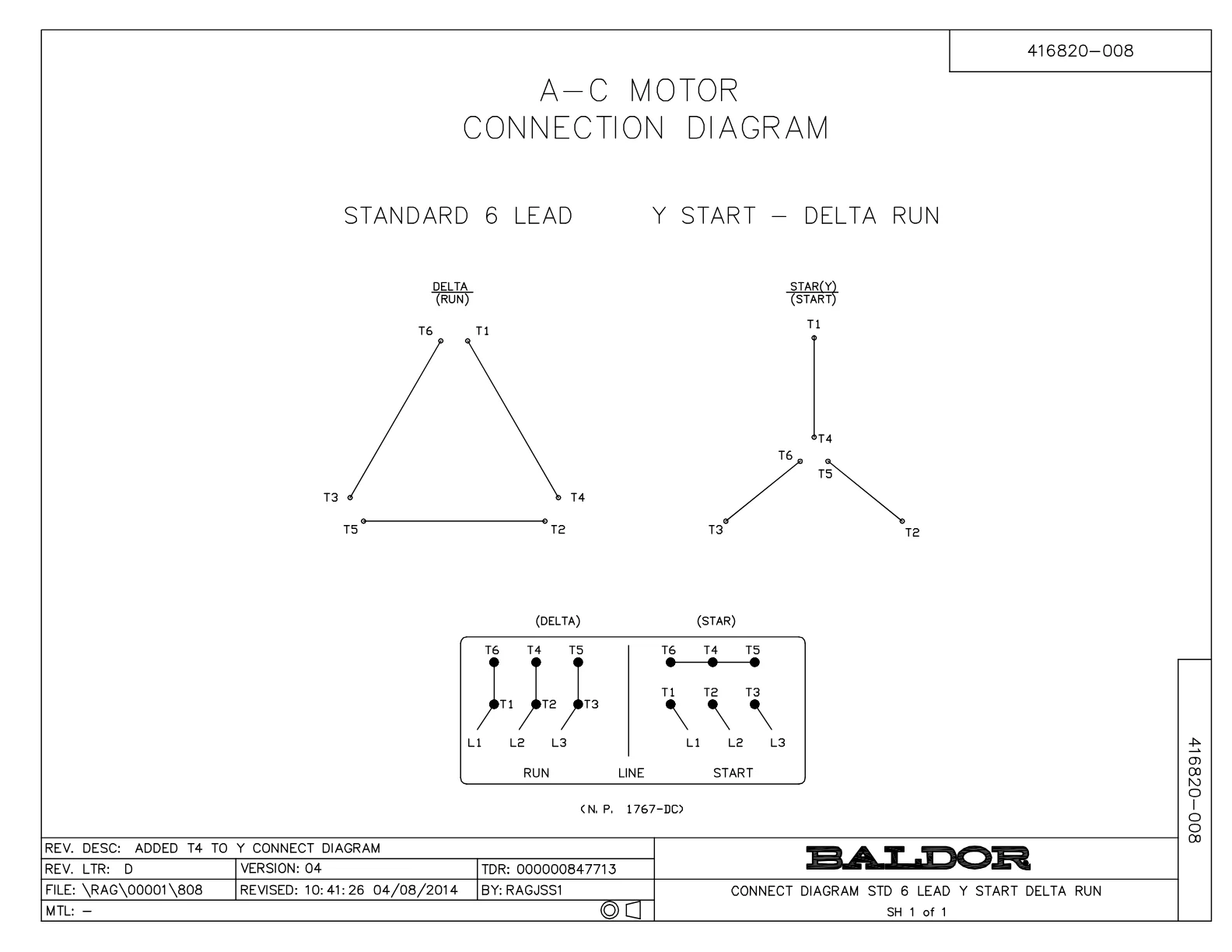

Wiring DiagramWiring DiagramPDF·32 KB·English

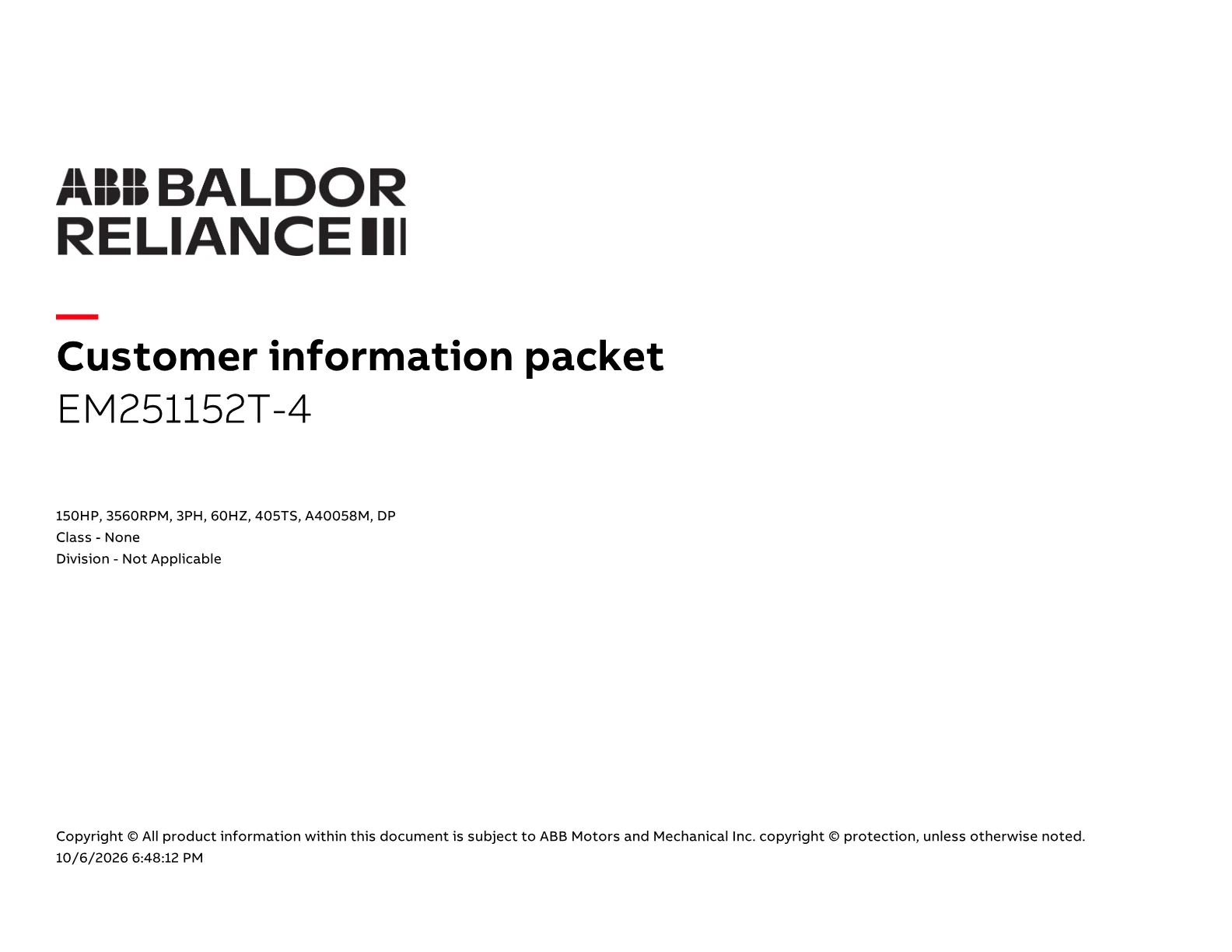

DatasheetDatasheetPDF·671 KB·English

Performance CurvePerformance CurvePDF·96 KB·English

Series documents 2· shared by this product series

Technical DrawingDrawingPDF·862 KB·English

Technical DrawingDrawingPDF·87 KB·English

Spare Parts 3

The genuine spare parts used for servicing and repairing the Baldor EM251152T-4 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.
