How can I get a price quote for Baldor EM2334T-8?

You can request a fast quote for Baldor EM2334T-8 from Yılsa Engineering. Reference part number YLSJY2U2L25KZ4G. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor EM2334T-8 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor EM2334T-8 genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor EM2334T-8?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor EM2334T-8

General Purpose Motor - 20 hp, 1800 rpm, 3 ph, 200 V, 256T Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1770 rpm Base, Foot Mount, Continuous Duty

BaldorMFR # EM2334T-8SKU # YLSJY2U2L25KZ4G

EnclosureTEFC

Frame256T

Frame materialCast Iron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency20.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

General Purpose Motor - 20 hp, 1800 rpm, 3 ph, 200 V, 256T Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1770 rpm Base, Foot Mount, Continuous Duty

Baldor EM2334T-8

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame256T

Frame materialCast Iron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency20.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency200.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUSEEV · NEMA_PREMIUM

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage54.000 A @ 208.0 V · 55.000 A @ 200.0 V

Design codeA

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load93.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)55.0 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeInverter Ready

KVA codeJ

Lifting lugsStandard Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size6 @ 8 AWG

Motor type0960M

Mounting arrangementF1

Number of poles4

Overall length23.36 IN

Power factor83

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

Service factor1.15

Shaft diameter1.625 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorShaft Slinger

Speed (rpm)1770 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodPart Winding

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568118238

Motor Supply Voltage200 V

Base RPM1770 rpm

Mounting TypeFoot

Warranty3 Year Warranty

Type Of BearingBall

IP Rating44

Weight286 lbs

ApplicationsPumps, fans, compressors, blowers, machine tools, conveyors and many other applications requiring 200 volt power.

Additional Details1.15 Service Factor, positively locked drive end bearing on 254T and larger, ball bearings, dynamically balanced rotors.

Harmonization Code8501.52.4000

Motor CategoryGeneral Purpose Motor

Product TypeGeneral Purpose Motors

Nameplate

Catalog numberEM2334T-8

Specification number09P011T604

Horsepower (HP)20

Voltage (V)200

Current (A)55

Speed (rpm)1770

Frame size256T

Frequency (Hz)60

Phase3

Service factor1.15

Code letter (locked rotor kVA)J

NEMA design letterA

Insulation classF

NEMA nominal efficiency (%)93

Power factor83

Rating40C AMB-CONT

CC number010A

Drive end bearing6309

Opposite drive end bearing6208

EnclosureTEFC

Nameplate numberNP3441L

Performance

General characteristics· 200 V, 60 Hz, 20 hp

Line-to-line resistance at 25 °C (ohms)0.064 Ω

Temperature rise at rated load (°C)59° C

Temperature rise at service factor load (°C)70° C

Start configurationDOL

Breakdown torque225 lb-ft

Pull-up torque122 lb-ft

Locked-rotor torque136 lb-ft

Starting current (A)443 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	5	46	68	79	84	86	87	85
Efficiency %	0	89.3	93	93.7	93.5	93	92.2	93.2
Speed rpm	1799	1793	1786	1779	1771	1763	1754	1766
Line amps A	23.02	26.44	33.98	43.77	54.96	67.29	80.32	62.4
Power W	407	4204	8026	11925	15940	20025	24274	18391
Torque lb-ft	0	14.75	29.44	44.24	59.29	74.4	89.89	68.4

Documents & CAD

For this product 3

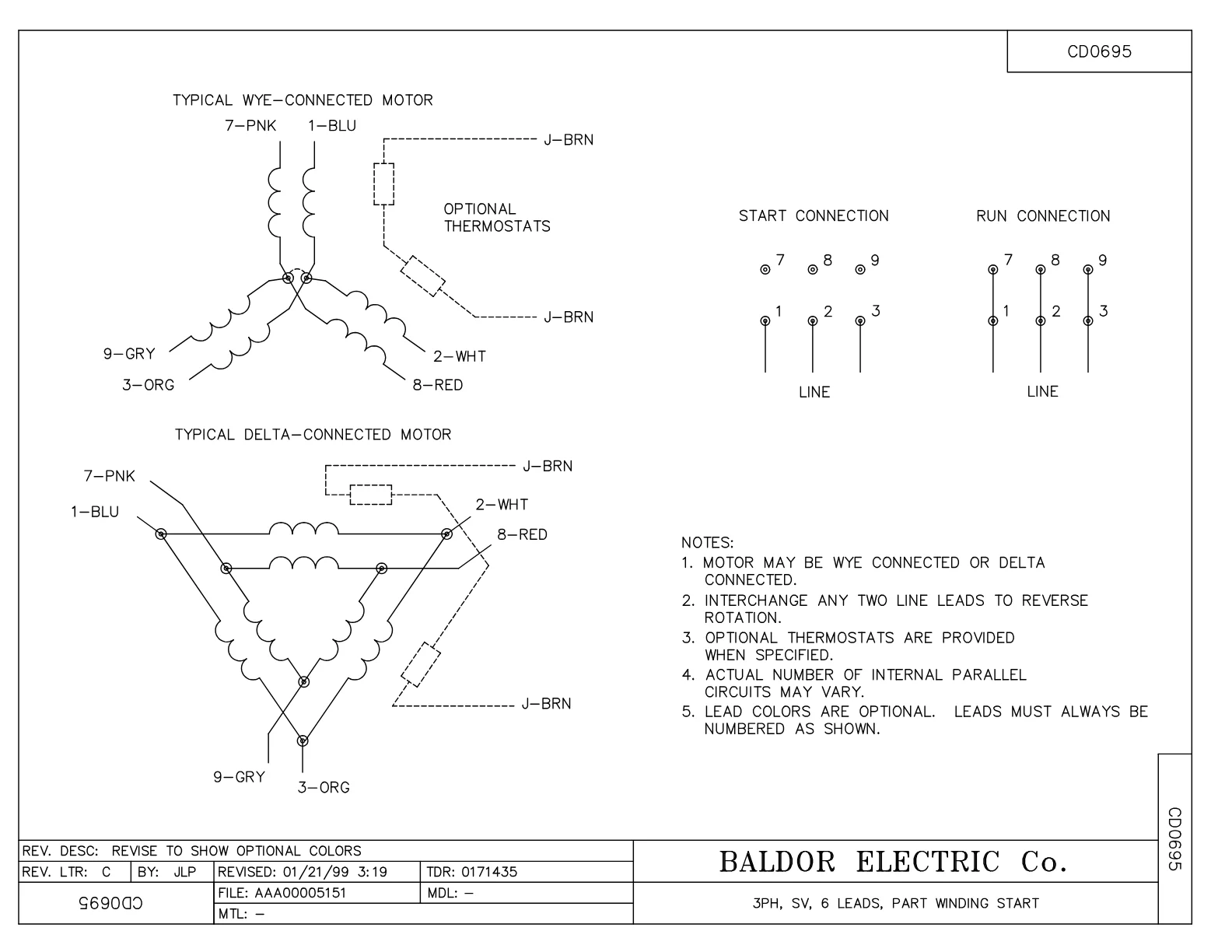

Wiring DiagramWiring DiagramPDF·51 KB·English

DatasheetDatasheetPDF·690 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 2· shared by this product series

Dimension DrawingDimension SheetPDF·186 KB·English

Technical DrawingDrawingPDF·87 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 8

The genuine spare parts used for servicing and repairing the Baldor EM2334T-8 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
09FN3001D01SP	EXTERNAL FAN, PLASTIC (COMES W/SCREW FRO	1 pcs	148 motors
51XW2520A12	.25-20 X .75, TAPTITE II, HEX WSHR SLTD	6 pcs	1,543 motors
09FH4000SP	309 FH - BLACK PRIMER	1 pcs	131 motors
09CB3501SP	CONDUIT BOX LID FOR 09CB3001 & 09CB3002	1 pcs	392 motors
09GS1013SP	GS FOR 09CB3501, 12CB1500 & 12CB1503 LID	1 pcs	245 motors
MG1050Y01	CELEROL BALDOR GOLD 5 GALLON BUCKET	0.05 gal	1,997 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors

Accessories 1

Genuine accessories that can be used with the Baldor EM2334T-8 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
