Baldor EM2334T-58

Baldor-Reliance EM2334T-58 is a 20 HP, 1465 rpm, three-phase 400 V, 50 Hz, 256T frame, TEFC enclosure general purpose electric motor.

BaldorMFR # EM2334T-58SKU # YLSAXYDHL8GA7BN

EnclosureTEFC

Frame256T

Frame materialCast Iron

Frequency (Hz)50.00 Hz

Motor letter typeThree Phase

Output at frequency20.000 HP @ 50 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance EM2334T-58 is a 20 HP, 1465 rpm, three-phase 400 V, 50 Hz, 256T frame, TEFC enclosure general purpose electric motor.

Baldor EM2334T-58

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame256T

Frame materialCast Iron

Frequency (Hz)50.00 Hz

Motor letter typeThree Phase

Output at frequency20.000 HP @ 50 HZ

Phase3

Synchronous speed at frequency (rpm)1500 RPM @ 50 HZ

Voltage at frequency400.0 V @ 50 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCE · CSA · CURUS · UKCA · UR · WEEE

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage28.000 A @ 400.0 V

Design codeA

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load92.1 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)28.0 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeNot Inverter

KVA codeH

Lifting lugsStandard Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size6 @ 12 AWG

Motor type0956M

Mounting arrangementF1

Number of poles4

Overall length23.55 IN

Power factor84

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

RoHS statusROHS COMPLIANT

Service factor1.15

Shaft diameter1.625 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorShaft Slinger

Speed (rpm)1465 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodWye Start - Delta Run

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568773918

Nameplate

Catalog numberEM2334T-58

Specification number09F103Z534G1

Horsepower (HP)20/15KW

Phase3

Voltage (V)400

Current (A)28

Speed (rpm)1465 1/MIN IC411 138KG

Frame size256T

Frequency (Hz)50

Ingress protection (IP)54

Service factor1.15

Code letter (locked rotor kVA)H

NEMA design letterA

Insulation classF

Nominal efficiency (%)92.1

Power factor84

Usable at 208VN/A

Rating40C AMB-S1 CONT

Drive end bearing6309

Opposite drive end bearing6208

EnclosureTEFC

Nameplate numberNP3444L

Performance

General characteristics· 400 V, 50 Hz, 20 hp

Line-to-line resistance at 25 °C (ohms)0.324 Ω

Temperature rise at rated load (°C)78° C

Temperature rise at service factor load (°C)96° C

Start configurationDOL

Breakdown torque369 lb-ft

Pull-up torque111 lb-ft

Locked-rotor torque168 lb-ft

Starting current (A)203 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	5	43	66	77	84	86	87	85
Efficiency %	0	87.2	91.5	92.3	92.2	91.3	89.8	91.7
Speed rpm	1499	1493	1485	1476	1468	1458	1445	1462
Line amps A	12.8	14.2	17.8	22.9	28.1	34.4	42.7	31.9
Power W	473	4184	8187	12186	16273	20545	25835	18836
Torque lb-ft	0	17.2	35.5	53.6	71.9	90.5	113	83.1

Documents & CAD

For this product 3

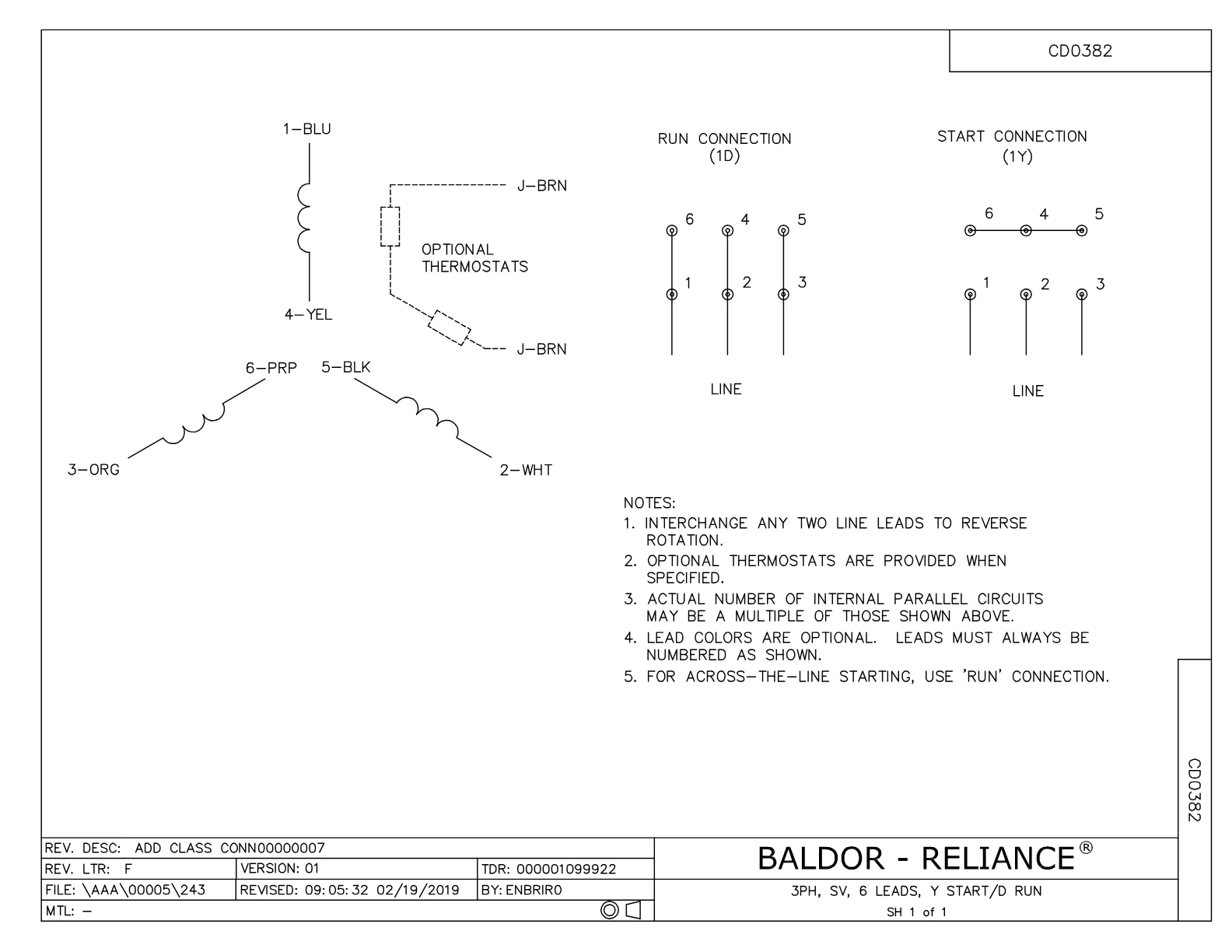

Wiring DiagramWiring DiagramPDF·37 KB·English

DatasheetDatasheetPDF·651 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 2· shared by this product series

Dimension DrawingDimension SheetPDF·167 KB·English

Technical DrawingDrawingPDF·87 KB·English

Spare Parts 8

The genuine spare parts used for servicing and repairing the Baldor EM2334T-58 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
09FN3001C01SP	EXTERNAL FAN, PLASTIC (COMES W/SCREW FRO	1 pcs	7 motors
51XW2520A12	.25-20 X .75, TAPTITE II, HEX WSHR SLTD	6 pcs	1,543 motors
09EP1101A11SP	PU ENDPLATE, MACH	1 pcs	23 motors
09CB3501SP	CONDUIT BOX LID FOR 09CB3001 & 09CB3002	1 pcs	392 motors
09GS1013SP	GS FOR 09CB3501, 12CB1500 & 12CB1503 LID	1 pcs	245 motors
MG1050Y01	CELEROL BALDOR GOLD 5 GALLON BUCKET	0.05 gal	1,997 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
