Baldor EM2334T-12 AC Motors
General Purpose Motor - 20 hp, 1800 rpm, 3 ph, 230/460 V, 256T Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1770 rpm Base, Foot Mount, Continuous Duty
ITEM #6907a76fad9cc32ae1309c56 MFR #EM2334T-12 SKU #YLS1I43APTJGSTU
Quick Specs
Motor Phase: 3 ph
Motor Horsepower: 20 hp
Synchronous Rpm: 1800 rpm
Motor Supply Voltage: 230/460 V
Frame Size: 256T
Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
Overview
General Purpose Motor - 20 hp, 1800 rpm, 3 ph, 230/460 V, 256T Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1770 rpm Base, Foot Mount, Continuous Duty
Specifications
Motor Phase 3 ph
Motor Horsepower 20 hp
Synchronous Rpm 1800 rpm
Motor Supply Voltage 230/460 V
Frame Size 256T
Enclosure Type TEFC (Totally Enclosed Fan Cooled)
Frequency Rating 60 Hz
Base RPM 1770 rpm
Duty Condition Type Continuous Duty
Mounting Type Foot
Full Load Current 46.00 / 23.00 A
Full Load Efficiency 93.00 %
Amps @ Voltage 50.0 A @ 208 V; 46.0 A @ 230 V; 23.0 A @ 460 V
Volts @ Frequency 230 V @ 60 Hz; 460 V @ 60 Hz
Description Keyword 20 hp
Shaft Diameter 1.6250 in
Overall Length C Dimension 23.28 in
Service Factor 1.15
Frame Material Cast Iron
Insulation Class F
Standards Met CSA EEV, UR, CSA
Weight 303 lbs
Applications Pumps, compressors, fans, conveyors, machine tools and other general purpose three phase applications.
Additional Details Suitable for mounting in any position. Ball bearings, heavy-gauge steel and cast-iron frames, gasketed conduit boxes, 1.15 service factor or greater, and low-loss electrical grade lamination steel.
Harmonization Code 8501.52.4000
UPC_NO 781568547397
Manufacturer Catalog http://www.baldor.com/mvc/DownloadCenter/Files/CA501
Manufacturer Product Page http://www.baldor.com/catalog/EM2334T-12
Motor Category General Purpose Motor

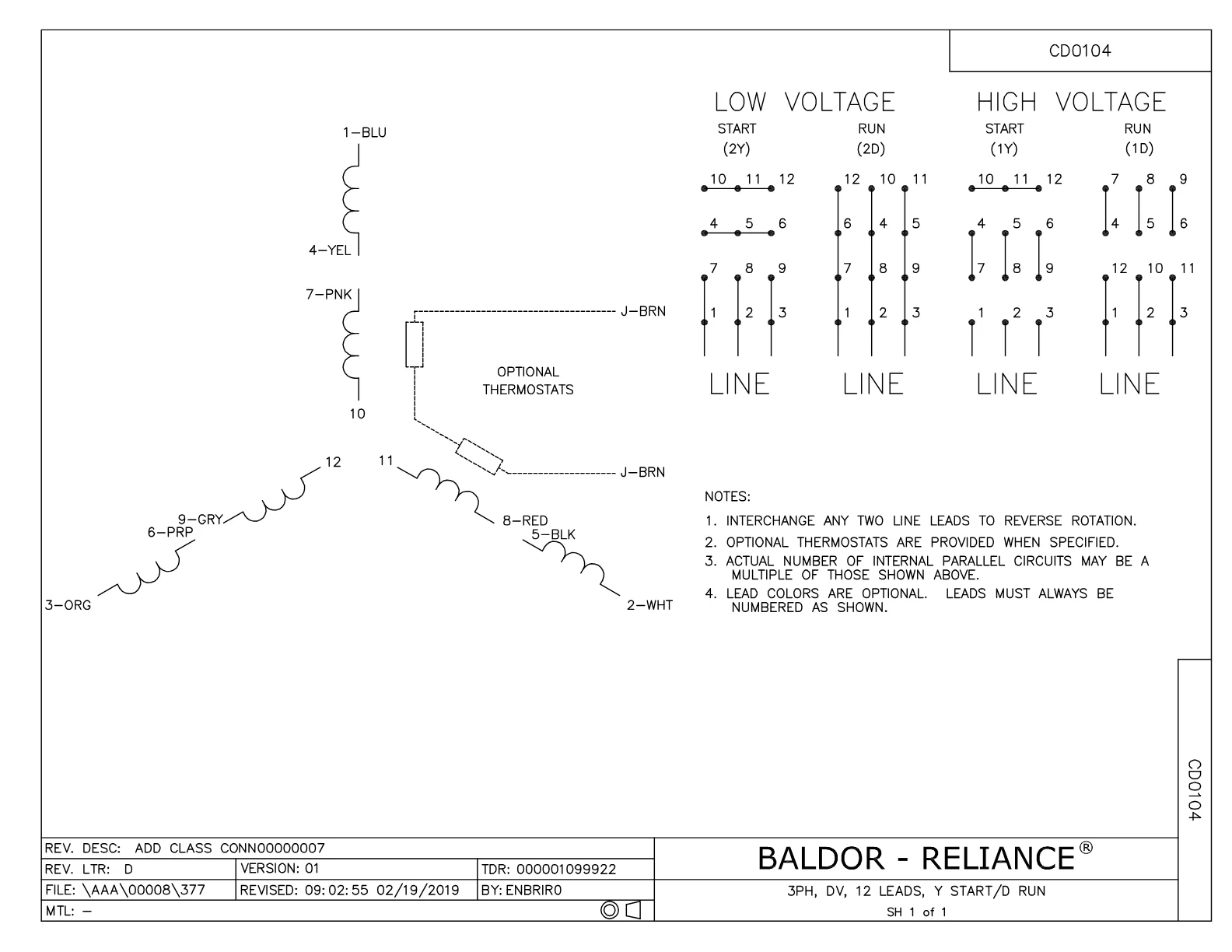

Wiring Diagram https://www.baldorvip.com/servlet/productInfoPacket?nameplate=X&layoutdiagram=X&electrical=X&connectiondiagram=X&language=E&matnr=EM2334T-12&vkorg=BEC
Instructional Video https://youtu.be/j-mFjRPjiFU?list=PLUJtYxZcxl_oZa19yqrOGvU3YxQu5APRV
Product Type General Purpose Motors
