Baldor EM2275

Baldor-Reliance EM2275 is a 5 HP, 1160 rpm, three-phase 230/460 V, 60 Hz, 254U frame, TEFC enclosure general purpose electric motor.

BaldorMFR # EM2275SKU # YLSSRO0YZ2GNAWO

EnclosureTEFC

Frame254U

Frame materialCast Iron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency5.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance EM2275 is a 5 HP, 1160 rpm, three-phase 230/460 V, 60 Hz, 254U frame, TEFC enclosure general purpose electric motor.

Baldor EM2275

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame254U

Frame materialCast Iron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency5.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1200 RPM @ 60 HZ

Voltage at frequency460.0 V @ 60 HZ · 230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUSEEV · NEMA_PREMIUM

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage15.800 A @ 208.0 V · 7.300 A @ 460.0 V · 14.600 A @ 230.0 V

Design codeA

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load90.2 %

Electrically isolated bearingNot Electrically Isolated

Enclosure modificationSevere Duty Features

Feedback deviceNO FEEDBACK

High voltage full load current (A)7.3 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeInverter Ready

KVA codeK

Lifting lugsStandard Lifting Lugs

Locked bearing indicatorNo Locked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size9 @ 14 AWG

Motor type0748M

Mounting arrangementF1

Number of poles6

Overall length20.82 IN

Power factor72

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

Service factor1.15

Shaft diameter1.375 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1160 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568783436

Nameplate

Catalog numberEM2275

Specification number07H287X823G2

Horsepower (HP)5

Voltage (V)230/460

Current (A)14.6/7.3

Speed (rpm)1160

Frame size254U

Frequency (Hz)60

Phase3

Service factor1.15

Code letter (locked rotor kVA)K

NEMA design letterA

Insulation classF

NEMA nominal efficiency (%)90.2

Power factor72

Rating40C AMB-CONT

CC number010A

Drive end bearing6309

Opposite drive end bearing6307

EnclosureTEFC

Nameplate numberNP1259L

Performance

General characteristics· 230 V, 60 Hz, 5 hp

Line-to-line resistance at 25 °C (ohms)0.419 Ω

Temperature rise at rated load (°C)50° C

Temperature rise at service factor load (°C)61° C

Start configurationDOL

Breakdown torque77.4 lb-ft

Pull-up torque46.7 lb-ft

Locked-rotor torque56.1 lb-ft

Starting current (A)104 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	5	34	54	65	72	75	76	74
Efficiency %	0	85.8	90.1	90.8	90.3	89.1	87.6	89.6
Speed rpm	1199	1190	1181	1173	1163	1151	1138	1156
Line amps A	7.4	8.02	9.58	11.8	14.6	17.5	20.9	16.3
Power W	135	1100	2049	3064	4171	5230	6365	4806
Torque lb-ft	0	5.58	11	16.7	22.8	28.5	34.5	26.2

Documents & CAD

For this product 4

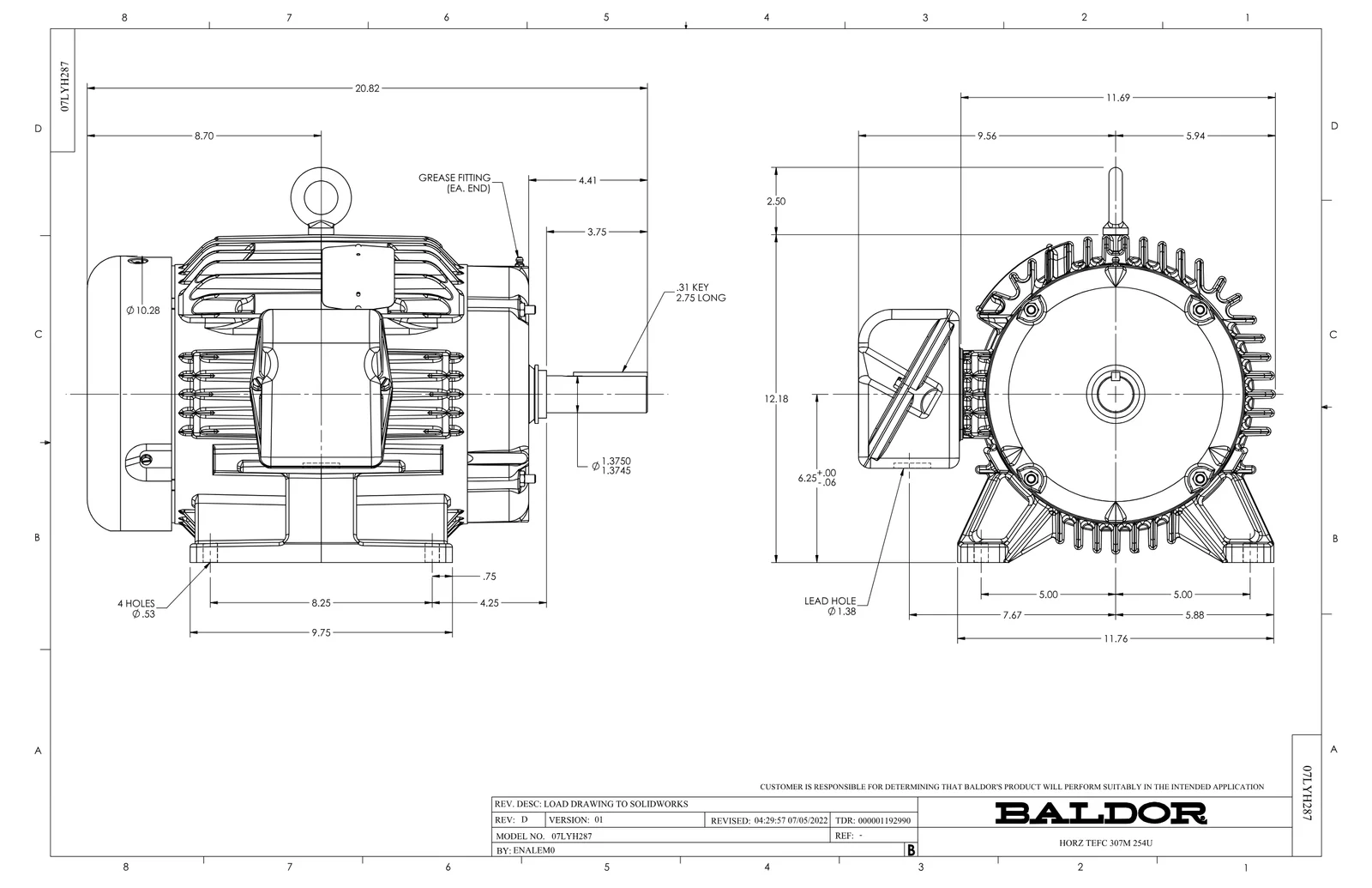

Dimension DrawingDimension SheetPDF·181 KB·English

Wiring DiagramWiring DiagramPDF·41 KB·English

DatasheetDatasheetPDF·667 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

CAD Files 2

2D Drawing

Spare Parts 9

The genuine spare parts used for servicing and repairing the Baldor EM2275 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
37FN3002C01	EXFN, PLASTIC, 6.00 OD, 1.155 ID	1 pcs	245 motors
09CB3002SP	CB W/1.38 LEAD HOLE FOR 37, 39, 307 & 30	1 pcs	88 motors
51XW2520A12	.25-20 X .75, TAPTITE II, HEX WSHR SLTD	4 pcs	1,543 motors
07FH4007SP	PRIMED	1 pcs	189 motors
09CB3501SP	CONDUIT BOX LID FOR 09CB3001 & 09CB3002	1 pcs	392 motors
09GS1013SP	GS FOR 09CB3501, 12CB1500 & 12CB1503 LID	1 pcs	245 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MG1050Y01	CELEROL BALDOR GOLD 5 GALLON BUCKET	0.036 gal	1,997 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
