Baldor EL3609T

General Purpose Motor - 3 hp, 1800 rpm, 1 ph, 230 V, 184T Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1755 rpm Base, Foot Mount, Continuous Duty

BaldorMFR # EL3609TSKU # YLSJUF5U0V9PEL0

EnclosureTEFC

Frame184T

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency3.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

General Purpose Motor - 3 hp, 1800 rpm, 1 ph, 230 V, 184T Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1755 rpm Base, Foot Mount, Continuous Duty

Features and Benefits

Low-loss electrical-grade lamination steel
Heavy-gauge steel frames
Three-year warranty
Suitable for energy-saving applications where continuous operation is required

Baldor EL3609T

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame184T

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency3.000 HP @ 60 HZ

Phase1

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUS · CURUSEEV · NEMA PREMIUM (OLD LOGO) · CSA EEV · C UR US

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage11.800 A @ 230.0 V

Design codeL

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load85.5 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)11.8 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeNot Inverter

KVA codeH

Lifting lugsNo Lifting Lugs

Locked bearing indicatorNo Locked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size2 @ 14 AWG, A PH

Motor type3640LC

Mounting arrangementF1

Number of poles4

Overall length18.06 IN

Power factor96

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

Service factor1.15

Shaft diameter1.125 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1755 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568138656

Motor Supply Voltage230 V

Base RPM1755 rpm

Mounting TypeFoot

Warranty3 Year Warranty

Type Of BearingBall

IP Rating44

Weight90 lbs

ApplicationsCompressors, pumps, fans, farm equipment, conveyors, material handling equipment, machine tools and others.

Additional DetailsHeavy gauge steel frames and a heavy duty base seam welded to the frame, ball bearings, a “Snap Action” starting switch and gasketed conduit box and capacitor cover.

Harmonization Code8501.40.6040

Motor CategoryGeneral Purpose Motor

Product TypeGeneral Purpose Motors

Nameplate

Catalog numberEL3609T

Specification number36E004Y528E7

Horsepower (HP)3

Voltage (V)230

Current (A)11.8

Speed (rpm)1755

Frame size184T

Frequency (Hz)60

Phase1

Service factor1.15

Code letter (locked rotor kVA)H

NEMA design letterL

Insulation classF

NEMA nominal efficiency (%)85.5

Power factor96

Rating40C AMB-CONT

Drive end bearing6206

Opposite drive end bearing6205

EnclosureTEFC

Nameplate numberNP2116L

Performance

General characteristics· 230 V, 60 Hz, 3 hp

Line-to-line resistance at 25 °C (ohms)0.662 Ω / 1.52 Ohms B Ph

Temperature rise at rated load (°C)59° C

Temperature rise at service factor load (°C)75° C

Start configurationDOL

Breakdown torque21 lb-ft

Pull-up torque18 lb-ft

Locked-rotor torque25 lb-ft

Starting current (A)85 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	61	92	96	97	97	96	96	95
Efficiency %	0	71	83.1	85.9	85.7	83.6	80	84.4
Speed rpm	1799	1787	1775	1762	1745	1728	1705	1735
Line amps A	1.9	3.7	6.1	8.9	11.8	15.3	19.5	14.1
Power W	267	804	1365	1967	2603	3303	4087	0
Torque lb-ft	0	2.25	4.5	6.75	9	11.25	13.5	0

Documents & CAD

For this product 3

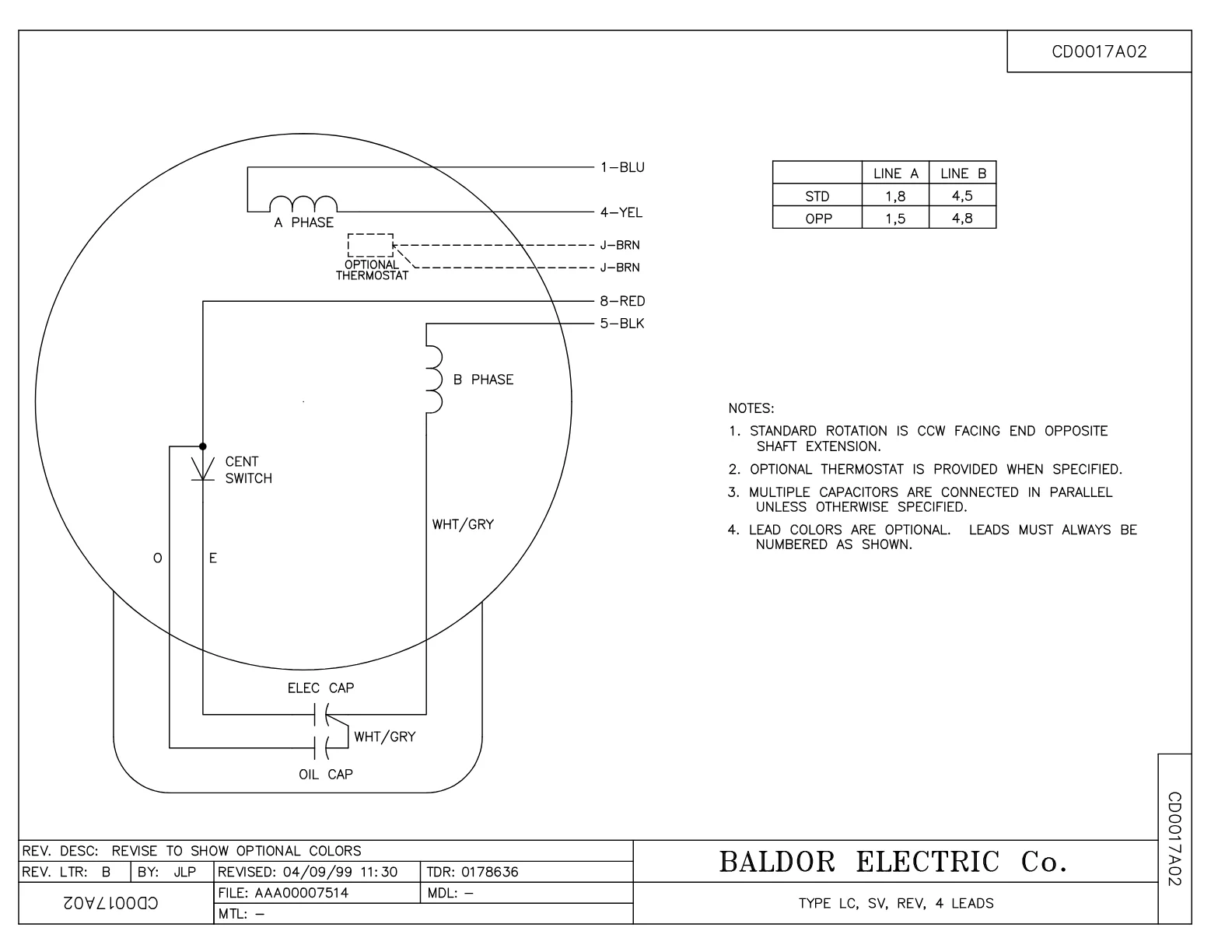

Wiring DiagramWiring DiagramPDF·37 KB·English

DatasheetDatasheetPDF·597 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 1· shared by this product series

Dimension DrawingDimension SheetPDF·108 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 11

The genuine spare parts used for servicing and repairing the Baldor EL3609T motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
OC3035F09SP	CYL OIL CAP 35MFD/370V	1 pcs	18 motors
EC1145C06SP	ELEC CAP 230V 2.0 X 4.3	1 pcs	4 motors
36GS1000SP	GASKET-CONDUIT BOX, .06 THICK #SV-330 LE	1 pcs	831 motors
36EP3104A01	FREP MACH W/GRSR, RAISED FH PADS	1 pcs	141 motors
36EP3100A01SP	PUEP ASSEMBLY FOR ROUTING PURPOSES	1 pcs	74 motors
37GS1001SP	GASKET, CONDUIT BOX LID, .06 THICK LEXID	1 pcs	329 motors
36CB3800SP	CAPACITOR COVER, CAST	1 pcs	16 motors
36FN3000C01SP	EXFN, PLASTIC, 5.25 OD, .912 ID	1 pcs	334 motors
MG1050Y01	CELEROL BALDOR GOLD 5 GALLON BUCKET	0.022 gal	1,997 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors

Accessories 2

Genuine accessories that can be used with the Baldor EL3609T motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
