Baldor EL1410T

General Purpose Motor - 5 hp, 1800 rpm, 1 ph, 230 V, 184T Frame, OPSB (Open Slotted Band) Enclosure, 60 Hz, 1735 rpm Base, Foot Mount, Continuous Duty

BaldorMFR # EL1410TSKU # YLSD99N951G8K1J

EnclosureOPSB

Frame184T

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency5.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

General Purpose Motor - 5 hp, 1800 rpm, 1 ph, 230 V, 184T Frame, OPSB (Open Slotted Band) Enclosure, 60 Hz, 1735 rpm Base, Foot Mount, Continuous Duty

Features and Benefits

Low-loss electrical-grade lamination steel
Heavy-gauge steel frames
Three-year warranty
Suitable for energy-saving applications where continuous operation is required

Baldor EL1410T

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureOPSB

Frame184T

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency5.000 HP @ 60 HZ

Phase1

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUS · CURUSEEV · NEMA PREMIUM (OLD LOGO) · CSA EEV · C UR US

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage19.100 A @ 230.0 V

Design codeL

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load86.5 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)19.1 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeNot Inverter

KVA codeG

Lifting lugsNo Lifting Lugs

Locked bearing indicatorNo Locked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size2 @ 10 AWG, A PH

Motor type3646LC

Mounting arrangementF1

Number of poles4

Overall length18.00 IN

Power factor97

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

Service factor1.15

Shaft diameter1.125 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1735 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568138571

Motor Supply Voltage230 V

Base RPM1735 rpm

Mounting TypeFoot

Warranty3 Year Warranty

Type Of BearingBall

IP Rating22/23

Weight127 lbs

ApplicationsCompressors, pumps, conveyors, machine tools, air handling, and others.

Additional DetailsCopper windings, dynamically balanced rotors, ball bearings, heavy gauge steel frames, and other industrial quality features.

Harmonization Code8501.40.6040

Motor CategoryGeneral Purpose Motor

Product TypeGeneral Purpose Motors

Nameplate

Catalog numberEL1410T

Specification number36H982Y585G1

Horsepower (HP)5

Voltage (V)230

Current (A)19.1

Speed (rpm)1735

Frame size184T

Frequency (Hz)60

Phase1

Service factor1.15

Code letter (locked rotor kVA)G

NEMA design letterL

Insulation classF

NEMA nominal efficiency (%)86.5

Power factor97

Rating40C AMB-CONT

Drive end bearing6206

Opposite drive end bearing6205

EnclosureOPSB

Nameplate numberNP2116L

Performance

General characteristics· 230 V, 60 Hz, 5 hp

Line-to-line resistance at 25 °C (ohms)0.42 Ω / 0.89 Ohms B Ph

Temperature rise at rated load (°C)72° C

Temperature rise at service factor load (°C)110° C

Start configurationDOL

Breakdown torque37 lb-ft

Pull-up torque27 lb-ft

Locked-rotor torque42 lb-ft

Starting current (A)129 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	59	89	95	96	96	96	95	96
Efficiency %	0	69.9	83	86.6	86	79.8	74.6	82.3
Speed rpm	1799	1784	1770	1754	1735	1706	1672	1718
Line amps A	3.4	6.4	10.3	14.5	19.6	26.3	34	23.62
Power W	461	1359	2272	3237	4298	5694	7163	0
Torque lb-ft	0	3.75	7.5	11.25	15	18.75	22.5	0

Documents & CAD

For this product 4

Dimension DrawingDimension SheetPDF·109 KB·English

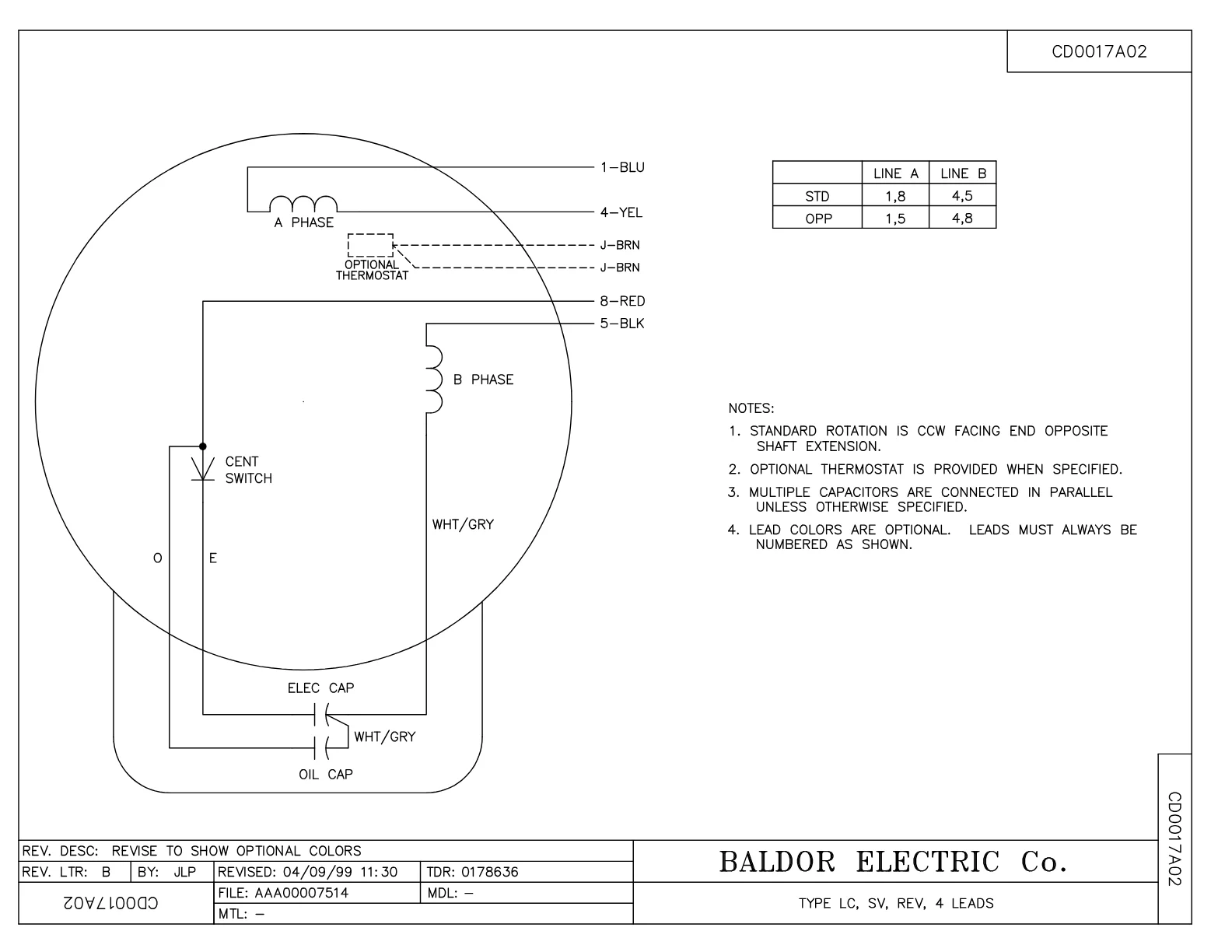

Wiring DiagramWiring DiagramPDF·37 KB·English

DatasheetDatasheetPDF·600 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 6

The genuine spare parts used for servicing and repairing the Baldor EL1410T motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
36GS1000SP	GASKET-CONDUIT BOX, .06 THICK #SV-330 LE	1 pcs	831 motors
36EP3100A01SP	PUEP ASSEMBLY FOR ROUTING PURPOSES	1 pcs	74 motors
37GS1001SP	GASKET, CONDUIT BOX LID, .06 THICK LEXID	1 pcs	329 motors
MG1050Y01	CELEROL BALDOR GOLD 5 GALLON BUCKET	0.022 gal	1,997 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
