Baldor EL1406T

Baldor-Reliance EL1406T is a 3 HP, 3450 rpm, single-phase 115/230 V, 60 Hz, 182T frame, ODP enclosure general purpose electric motor.

BaldorMFR # EL1406TSKU # YLS8OGZZK6VLS

EnclosureODP

Frame182T

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency3.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance EL1406T is a 3 HP, 3450 rpm, single-phase 115/230 V, 60 Hz, 182T frame, ODP enclosure general purpose electric motor.

Baldor EL1406T

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureODP

Frame182T

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency3.000 HP @ 60 HZ

Phase1

Synchronous speed at frequency (rpm)3600 RPM @ 60 HZ

Voltage at frequency230.0 V @ 60 HZ · 115.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUS · CURUSEEV · NEMA_PREMIUM

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage12.300 A @ 230.0 V · 24.600 A @ 115.0 V

Design codeL

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load81.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)12.3 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeNot Inverter

KVA codeG

Lifting lugsNo Lifting Lugs

Locked bearing indicatorNo Locked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size4 @ 14 AWG, A PH

Motor type3628LC

Mounting arrangementF1

Number of poles2

Overall length15.00 IN

Power factor98

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

Service factor1.15

Shaft diameter1.125 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)3450 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568484647

Nameplate

Catalog numberEL1406T

Specification number36E002S117E7

Horsepower (HP)3

Voltage (V)115/230

Current (A)24.6/12.3

Speed (rpm)3450

Frame size182T

Frequency (Hz)60

Phase1

Service factor1.15

Code letter (locked rotor kVA)G

NEMA design letterL

Insulation classF

NEMA nominal efficiency (%)81

Power factor98

Rating40C AMB-CONT

Drive end bearing6206

Opposite drive end bearing6205

EnclosureOPEN

Nameplate numberNP2116L

Performance

General characteristics· 230 V, 60 Hz, 3 hp

Line-to-line resistance at 25 °C (ohms)0.74602 Ω / 0.85786 Ohms B Ph

Temperature rise at rated load (°C)32° C

Temperature rise at service factor load (°C)39° C

Start configurationDOL

Breakdown torque22.1 lb-ft

Pull-up torque6.56 lb-ft

Locked-rotor torque8.88 lb-ft

Starting current (A)78 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	84	98	98	98	98	97	96	97
Efficiency %	0	67.4	77.6	81.1	81.1	79.6	75.5	80.2
Speed rpm	3580.6	3559	3533.3	3506	3471.6	3436.5	3370.6	3451
Line amps A	1.46	3.72	6.42	9.17	12.3	15.7	21	14.3
Power W	284	838	1453	2075	2769	3518	4611	3218
Torque lb-ft	0	1.12	2.25	3.38	4.56	5.74	7.27	5.27

Documents & CAD

For this product 3

Wiring DiagramWiring DiagramPDF·40 KB·English

DatasheetDatasheetPDF·598 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 1· shared by this product series

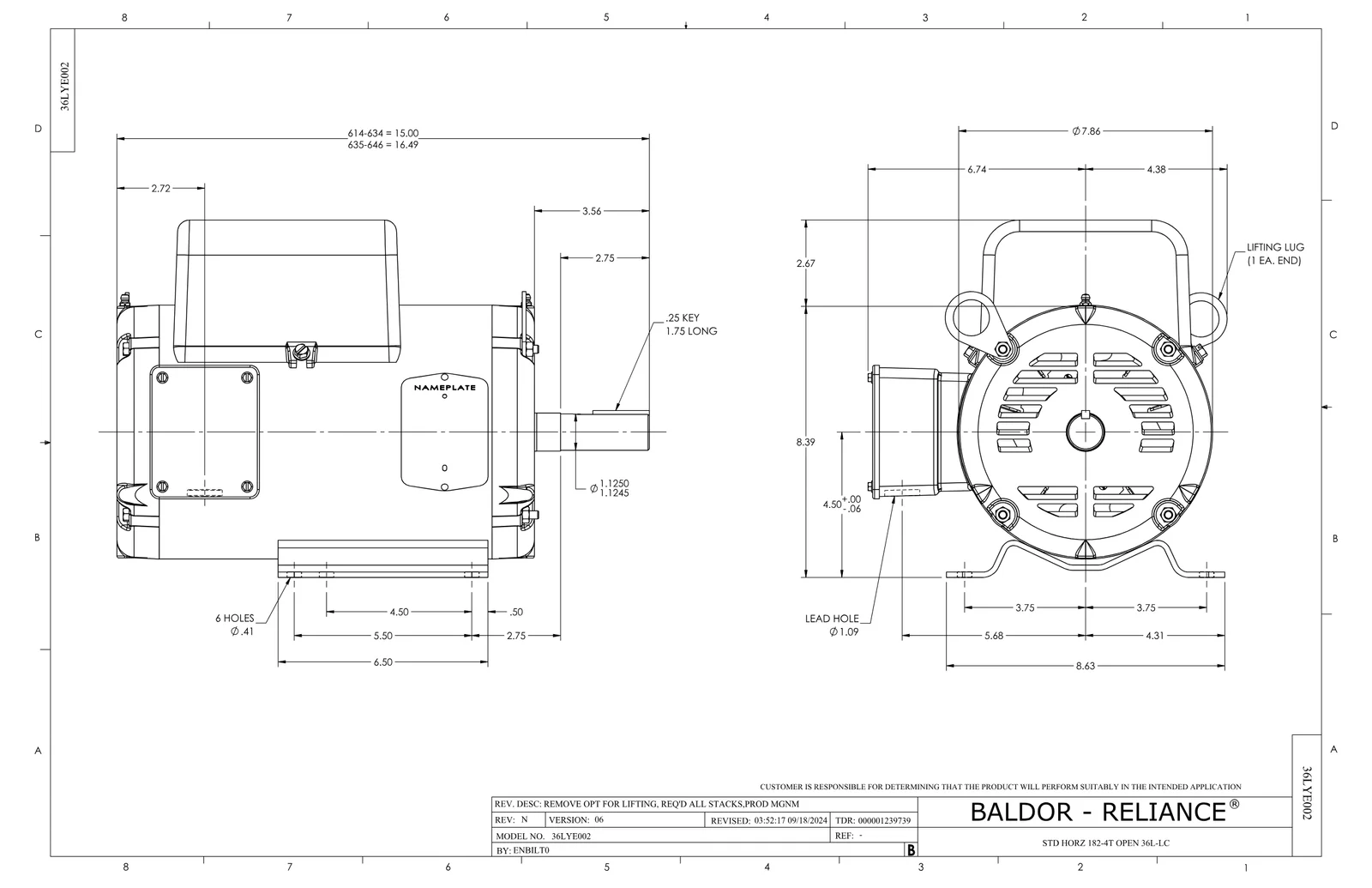

Dimension DrawingDimension SheetPDF·114 KB·English

CAD Files 7

3D Model

2D Drawing

Spare Parts 5

The genuine spare parts used for servicing and repairing the Baldor EL1406T motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
EC1815A06SP	ELEC CAP 115V 2.0 X 4.3	1 pcs	4 motors
36CB3800SP	CAPACITOR COVER, CAST	1 pcs	16 motors
MG1050Y01	CELEROL BALDOR GOLD 5 GALLON BUCKET	0.022 gal	1,997 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
