Baldor EL1319T

Baldor-Reliance EL1319T is a 1.5 HP, 1750 rpm, single-phase 115/208/230 V, 60 Hz, 145T frame, open (OPEN) enclosure general purpose electric motor.

BaldorMFR # EL1319TSKU # YLS0L0GBOSH1HF8

EnclosureOPEN

Frame145T

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency1.500 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance EL1319T is a 1.5 HP, 1750 rpm, single-phase 115/208/230 V, 60 Hz, 145T frame, open (OPEN) enclosure general purpose electric motor.

Baldor EL1319T

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureOPEN

Frame145T

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency1.500 HP @ 60 HZ

Phase1

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency115.0 V @ 60 HZ · 208.0 V @ 60 HZ · 230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUS · C UR US

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage12.800 A @ 115.0 V · 5.800 A @ 230.0 V · 6.300 A @ 208.0 V

Design codeL

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load83.8 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)5.8 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeNot Inverter

IP ratingNONE

KVA codeK

Lifting lugsNo Lifting Lugs

Locked bearing indicatorNo Locked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size7 @ 18 AWG

Motor type3536LC

Mounting arrangementF1

Number of poles4

Overall length13.00 IN

Power factor90

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

Service factor1.15

Shaft diameter0.875 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1750 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568219683

Nameplate

Catalog numberEL1319T

Specification number35EE002G129

Horsepower (HP)1.5

Voltage (V)115/208-230

Current (A)12.8/6.3-5.8

Speed (rpm)1750

Frame size145T

Frequency (Hz)60

Phase1

Service factor1.15

Code letter (locked rotor kVA)K

NEMA design letterL

Insulation classF

NEMA nominal efficiency (%)83.8

Power factor90

Rating40C AMB-CONT

Drive end bearing6205

Opposite drive end bearing6203

EnclosureOPEN

Nameplate numberNP2116L

Performance

General characteristics· 115 V, 60 Hz, 1.5 hp

Line-to-line resistance at 25 °C (ohms)0.42539 Ω / 1.0691 Ohms B Ph

Temperature rise at rated load (°C)34° C

Temperature rise at service factor load (°C)41° C

Start configurationDOL

Breakdown torque12.8 lb-ft

Pull-up torque10.2 lb-ft

Locked-rotor torque15.7 lb-ft

Starting current (A)105 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	26	63	79	86	90	92	93	91
Efficiency %	0	67.5	79.8	83.5	84.2	83.2	80.9	83.6
Speed rpm	1796.9	1787	1777	1766.1	1753.9	1739.6	1722.1	1745
Line amps A	5.12	5.8	7.77	10.1	12.8	15.9	19.4	14.7
Power W	155	418	703	1008	1332	1685	2074	1544
Torque lb-ft	0	1.111	2.224	3.357	4.502	5.671	6.861	5.2

Documents & CAD

For this product 3

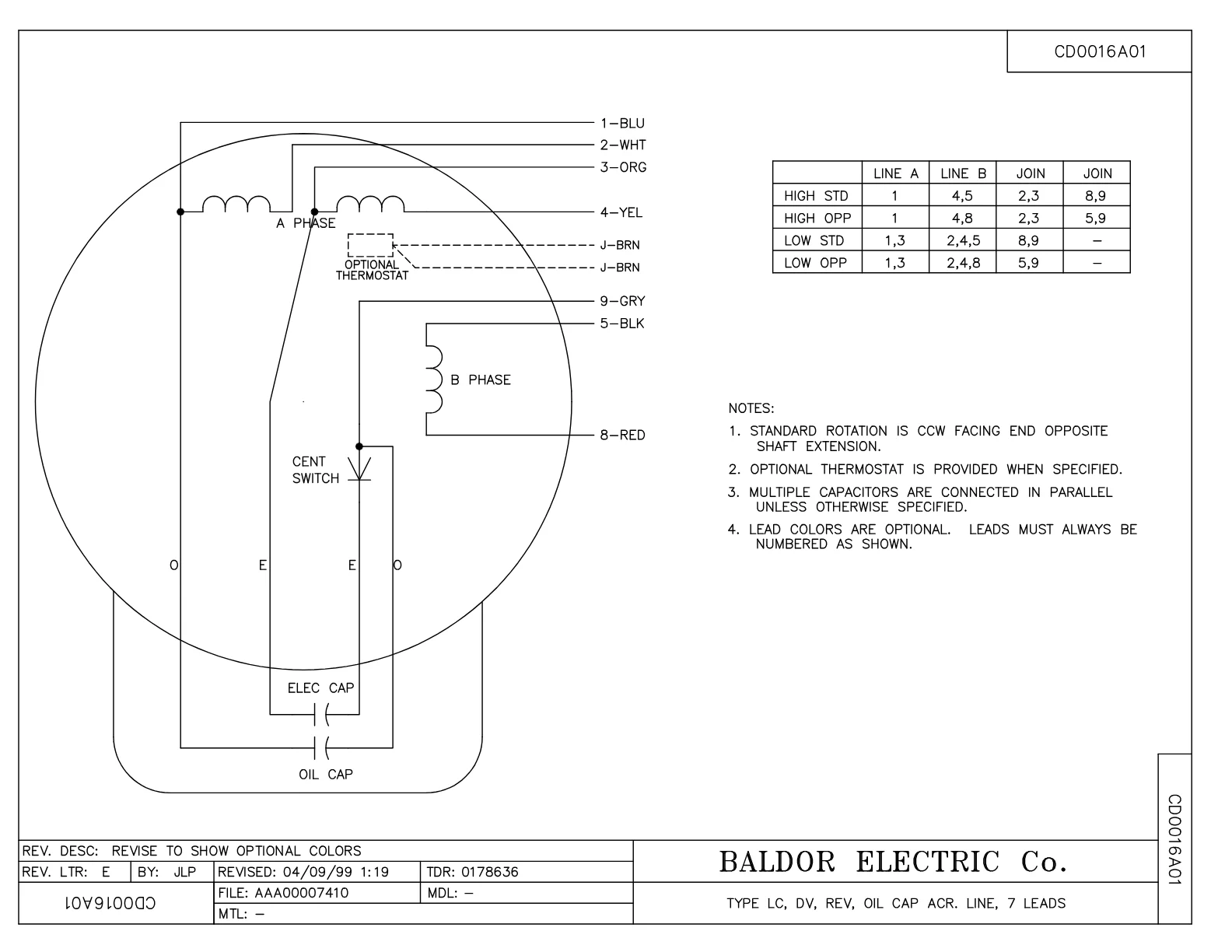

Wiring DiagramWiring DiagramPDF·42 KB·English

DatasheetDatasheetPDF·604 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 1· shared by this product series

Dimension DrawingDimension SheetPDF·110 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 5

The genuine spare parts used for servicing and repairing the Baldor EL1319T motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
OC3050F09SP	CAPACITOR 50 MFD 370 VAC	1 pcs	69 motors
EC1540A06SP	ELEC CAP, 540-648 MFD, 125V, 2.06D X 4.	1 pcs	53 motors
MG1050Y01	CELEROL BALDOR GOLD 5 GALLON BUCKET	0.017 gal	1,997 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors

Accessories 2

Genuine accessories that can be used with the Baldor EL1319T motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
