Baldor EL11306A

EL11306A

BaldorMFR # EL11306ASKU # YLS98TCNNETHLEA

EnclosureODP

Frame56

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency.750 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor EL11306A (EL11306A) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Baldor EL11306A — price, stock availability and technical specifications.

Baldor EL11306A

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureODP

Frame56

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency.750 HP @ 60 HZ

Phase1

Synchronous speed at frequency (rpm)3600 RPM @ 60 HZ

Voltage at frequency115.0 V @ 60 HZ · 230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUSEEV

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage3.300 A @ 230.0 V · 4.700 A @ 208.0 V · 6.300 A @ 115.0 V

Design codeN

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load76.2 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)3.3 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classB

Inverter codeNot Inverter

KVA codeJ

Lifting lugsNo Lifting Lugs

Locked bearing indicatorNo Locked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size6 @ 18 AWG

Motor type3428LC

Mounting arrangementF1

Number of poles2

Overall length11.00 IN

Power factor95

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

RoHS statusROHS COMPLIANT

Service factor1.25

Shaft diameter0.625 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)3450 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1Automatic Thermal Overload

Winding thermal 1 locationSB

Winding thermal 2None

UPC781568798805

Product TypeGeneral Purpose Motors

Nameplate

Catalog numberEL11306A

Specification number34F353R220G1

Horsepower (HP).75

Voltage (V)115/230

Current (A)6.3/3.3

Speed (rpm)3450

Frame size56

Frequency (Hz)60

Phase1

Service factor1.25

Code letter (locked rotor kVA)J

NEMA design letterN

Insulation classB

Full load average efficiency (%)76.2

Power factor95

Rating40C AMB-CONT

Drive end bearing6203

Opposite drive end bearing6203

EnclosureOPEN

Nameplate numberNP3273L

Performance

General characteristics· 230 V, 60 Hz, 0.75 hp

Line-to-line resistance at 25 °C (ohms)2.4012 Ω / 2.118 Ohms B Ph

Temperature rise at rated load (°C)12° C

Temperature rise at service factor load (°C)16° C

Start configurationDOL

Breakdown torque3.88 lb-ft

Pull-up torque2.07 lb-ft

Locked-rotor torque3.92 lb-ft

Starting current (A)24.8 A

Line-to-line resistance at 25 °C (ohms)0.58846 Ω / 2.1681 Ohms B Ph

Temperature rise at rated load (°C)27° C

Temperature rise at service factor load (°C)36° C

Start configurationDOL

Breakdown torque3.28 lb-ft

Pull-up torque2.55 lb-ft

Locked-rotor torque3.81 lb-ft

Starting current (A)49.8 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	57	77	89	93	95	95	95	95
Efficiency %	0	62.6	74.2	78.2	77.5	76.1	74.7	76.1
Speed rpm	3584.2	3567.6	3537.1	3504.2	3465	3419.8	3372.1	3420
Line amps A	0.961	1.23	1.84	2.51	3.32	4.21	5.14	4.21
Power W	126	218	376	538	723	922	1127	922
Torque lb-ft	0	0.269	0.555	0.846	1.14	1.44	1.76	1.44

Documents & CAD

For this product 3

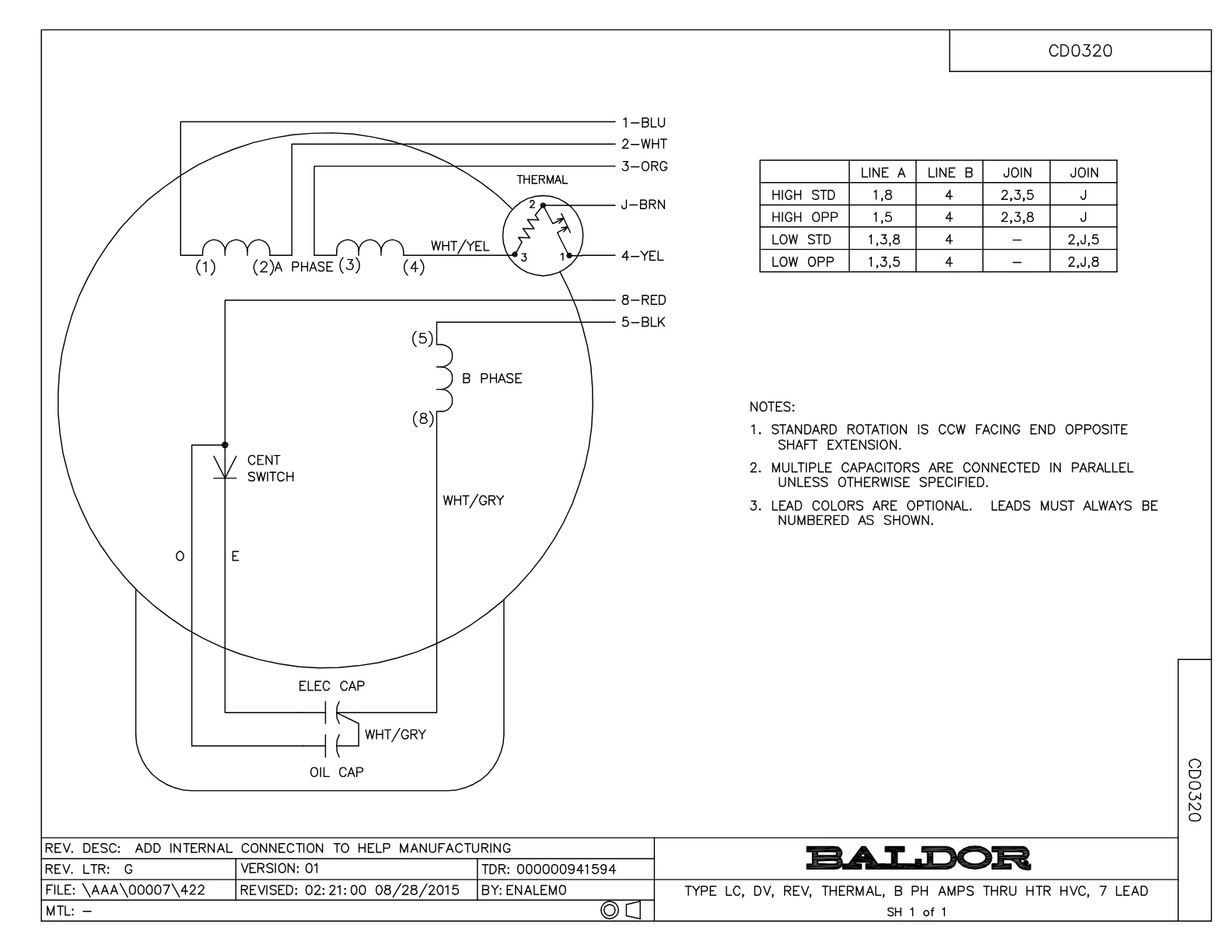

Wiring DiagramWiring DiagramPDF·39 KB·English

DatasheetDatasheetPDF·681 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 1· shared by this product series

Dimension DrawingDimension SheetPDF·115 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 5

The genuine spare parts used for servicing and repairing the Baldor EL11306A motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
OC3030F11SP	CAPACITOR 30 MFD 370 VAC	1 pcs	33 motors
EC1400A03SP	ELEC CAP, 400-480 MFD, 125V, 1.81D X 3.	1 pcs	37 motors
MG1050Y01	CELEROL BALDOR GOLD 5 GALLON BUCKET	0.014 gal	1,997 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
LB1118	LABEL,WARNING (ROLL LABEL)	1 pcs	223 motors
