Baldor EL11305

General Purpose Motor - 1/2 hp, 1200 rpm, 1 ph, 115/230 V, 56H Frame, ODP (Open Drip-Proof) Enclosure, 60 Hz, 1140 rpm Base, Foot Mount, Continuous Duty

BaldorMFR # EL11305SKU # YLS8JN8B7J1MZRB

EnclosureODP

Frame56H

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency.500 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

General Purpose Motor - 1/2 hp, 1200 rpm, 1 ph, 115/230 V, 56H Frame, ODP (Open Drip-Proof) Enclosure, 60 Hz, 1140 rpm Base, Foot Mount, Continuous Duty

Baldor EL11305

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureODP

Frame56H

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency.500 HP @ 60 HZ

Phase1

Synchronous speed at frequency (rpm)1200 RPM @ 60 HZ

Voltage at frequency115.0 V @ 60 HZ · 230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUSEEV

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage2.800 A @ 230.0 V · 4.900 A @ 115.0 V

Design codeN

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load75.3 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)2.8 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeNot Inverter

KVA codeF

Lifting lugsNo Lifting Lugs

Locked bearing indicatorNo Locked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size7 @ 18 AWG

Motor type3524LC

Mounting arrangementF1

Number of poles6

Overall length11.75 IN

Power factor88

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

RoHS statusROHS COMPLIANT

Service factor1.25

Shaft diameter0.625 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1165 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568735213

Motor Supply Voltage115/230 V

Base RPM1140 rpm

Mounting TypeFoot

Weight46 lbs

ApplicationsCompressors, pumps, conveyors, machine tools, air handling, and others.

Additional DetailsCompliant with DOE Small Motor Rule 2010.

Harmonization Code8501.40.4040

Motor CategoryGeneral Purpose Motor

Product TypeGeneral Purpose Motors

Nameplate

Catalog numberEL11305

Specification number35E007G062

Horsepower (HP).5

Voltage (V)115/230

Current (A)4.9/2.8

Speed (rpm)1165

Frame size56H

Frequency (Hz)60

Phase1

Service factor1.25

Code letter (locked rotor kVA)F

NEMA design letterN

Insulation classF

Full load average efficiency (%)75.3

Power factor88

Rating40C AMB-CONT

Drive end bearing6205

Opposite drive end bearing6203

EnclosureODP

Nameplate numberNP3155L

Performance

General characteristics· 115 V, 60 Hz, 0.5 hp

Line-to-line resistance at 25 °C (ohms)1.9537 Ω / 2.4113 Ohms B Ph

Temperature rise at rated load (°C)34° C

Temperature rise at service factor load (°C)43° C

Start configurationDOL

Breakdown torque4.92 lb-ft

Pull-up torque4.14 lb-ft

Locked-rotor torque7.43 lb-ft

Starting current (A)22.3 A

Line-to-line resistance at 25 °C (ohms)7.8011 Ω / 2.401 Ohms B Ph

Temperature rise at rated load (°C)39° C

Temperature rise at service factor load (°C)40° C

Start configurationDOL

Breakdown torque5.72 lb-ft

Pull-up torque5.25 lb-ft

Locked-rotor torque6.26 lb-ft

Starting current (A)17.6 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	38	61	76	83	88	90	91	90
Efficiency %	0	49.7	66.6	73.7	76.3	76.1	72.9	76.1
Speed rpm	1199	1190.5	1182.9	1174.7	1164.5	1153	1134.4	1153
Line amps A	2.5	2.72	3.24	3.97	4.87	5.92	7.34	5.92
Power W	109	192	283	381	490	616	768	616
Torque lb-ft	0	0.5642	1.121	1.683	2.262	2.86	3.476	2.86

Documents & CAD

For this product 3

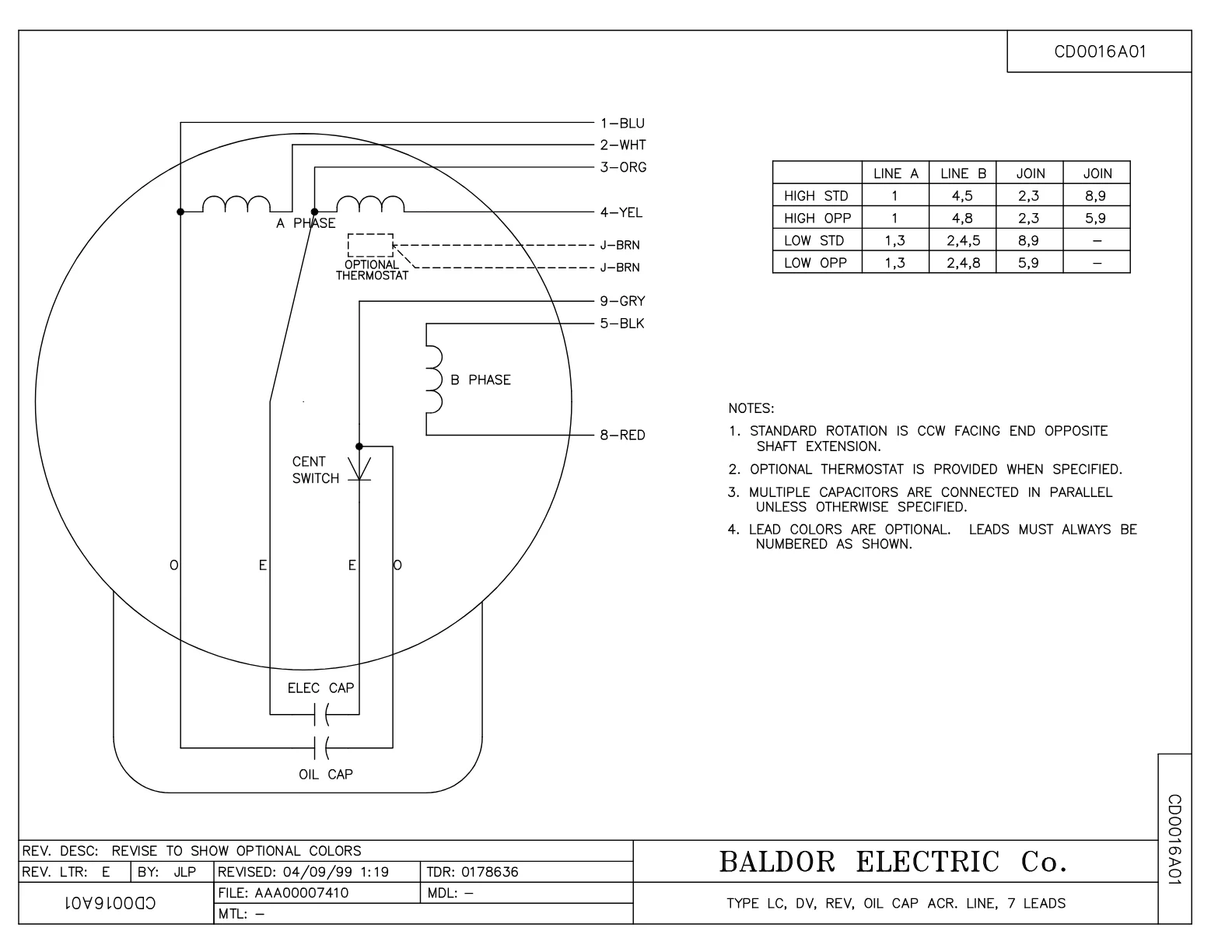

Wiring DiagramWiring DiagramPDF·42 KB·English

DatasheetDatasheetPDF·677 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 1· shared by this product series

Dimension DrawingDimension SheetPDF·112 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 4

The genuine spare parts used for servicing and repairing the Baldor EL11305 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
OC3035F09SP	CYL OIL CAP 35MFD/370V	1 pcs	18 motors
EC1270A02SP	ELEC CAP, 270-324 MFD, 125V, 1.48D X 3.	1 pcs	65 motors
MG1050Y01	CELEROL BALDOR GOLD 5 GALLON BUCKET	0.017 gal	1,997 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
