Baldor EJMM3610T

Close Coupled Pump Motor - 3 hp, 3600 rpm, 3 ph, 230/460 V, 182JM Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 3450 rpm Base, C-Face / Foot Mounted Mount, Continuous Duty

BaldorMFR # EJMM3610TSKU # YLSEJLWCQ8A23UM

EnclosureTEFC

Frame182JM

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency3.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Close Coupled Pump Motor - 3 hp, 3600 rpm, 3 ph, 230/460 V, 182JM Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 3450 rpm Base, C-Face / Foot Mounted Mount, Continuous Duty

Baldor EJMM3610T

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame182JM

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency3.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)3600 RPM @ 60 HZ

Voltage at frequency230.0 V @ 60 HZ · 460.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsNEMA_PREMIUM · NEMA PREMIUM · CURUSEEV

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage3.600 A @ 460.0 V · 7.200 A @ 230.0 V · 7.900 A @ 208.0 V

Design codeB

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load86.5 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)3.6 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeInverter Ready

KVA codeL

Lifting lugsNo Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size9 @ 18 AWG

Motor type3532M

Mounting arrangementF1

Number of poles2

Overall length16.80 IN

Power factor92

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeC-Face

Pulley shaft indicatorTapped & Key

Rodent screenNone

Service factor1.15

Shaft diameter0.875 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorShaft Slinger

Speed (rpm)3450 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568394830

Motor CategoryClose Coupled Pump Motor

Motor Supply Voltage230/460 V

Base RPM3450 rpm

IP Rating44

Harmonization Code8501.52.4000

Weight57 lbs

ApplicationsApplications for circulating and transferring fluids. Mounting designed to support pump unit.

Additional DetailsOver-sized ball bearings with locked drive end construction to minimize endplay. Super-E® motors have NEMA Premium® efficiency.

Mounting TypeC-Face / Foot Mounted

Product TypePump Motors

Nameplate

Catalog numberEJMM3610T

Specification number35M205Q060G1

Horsepower (HP)3

Voltage (V)230/460

Current (A)7.2/3.6

Speed (rpm)3450

Frame size182JM

Frequency (Hz)60

Phase3

Service factor1.15

Code letter (locked rotor kVA)L

NEMA design letterB

Insulation classF

NEMA nominal efficiency (%)86.5

Power factor92

Rating40C AMB-CONT

CC number010A

EnclosureTEFC

Drive end bearing6207

Opposite drive end bearing6203

Nameplate numberNP3441LUA

Performance

General characteristics· 460 V, 60 Hz, 3 hp

Line-to-line resistance at 25 °C (ohms)4.72 Ω

Temperature rise at rated load (°C)61° C

Temperature rise at service factor load (°C)76° C

Start configurationDOL

Breakdown torque18 lb-ft

Pull-up torque11 lb-ft

Locked-rotor torque16 lb-ft

Starting current (A)33 A

Line-to-line resistance at 25 °C (ohms)1.17 Ω

Temperature rise at rated load (°C)61° C

Temperature rise at service factor load (°C)73° C

Start configurationDOL

Breakdown torque18 lb-ft

Pull-up torque11 lb-ft

Locked-rotor torque16 lb-ft

Starting current (A)66 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	11	62	81	88	92	93	94	93
Efficiency %	0	83.7	87.9	88.2	87.2	85.6	83.5	86.2
Speed rpm	3599	3562	3531	3498	3462	3421	3375	3437
Line amps A	1.2	1.5	2.1	2.8	3.6	4.5	5.4	4.1
Power W	105	680	1284	1901	2538	3193	3875	2931
Torque lb-ft	0	1.125	2.25	3.375	4.5	5.625	6.75	5.17

Documents & CAD

For this product 4

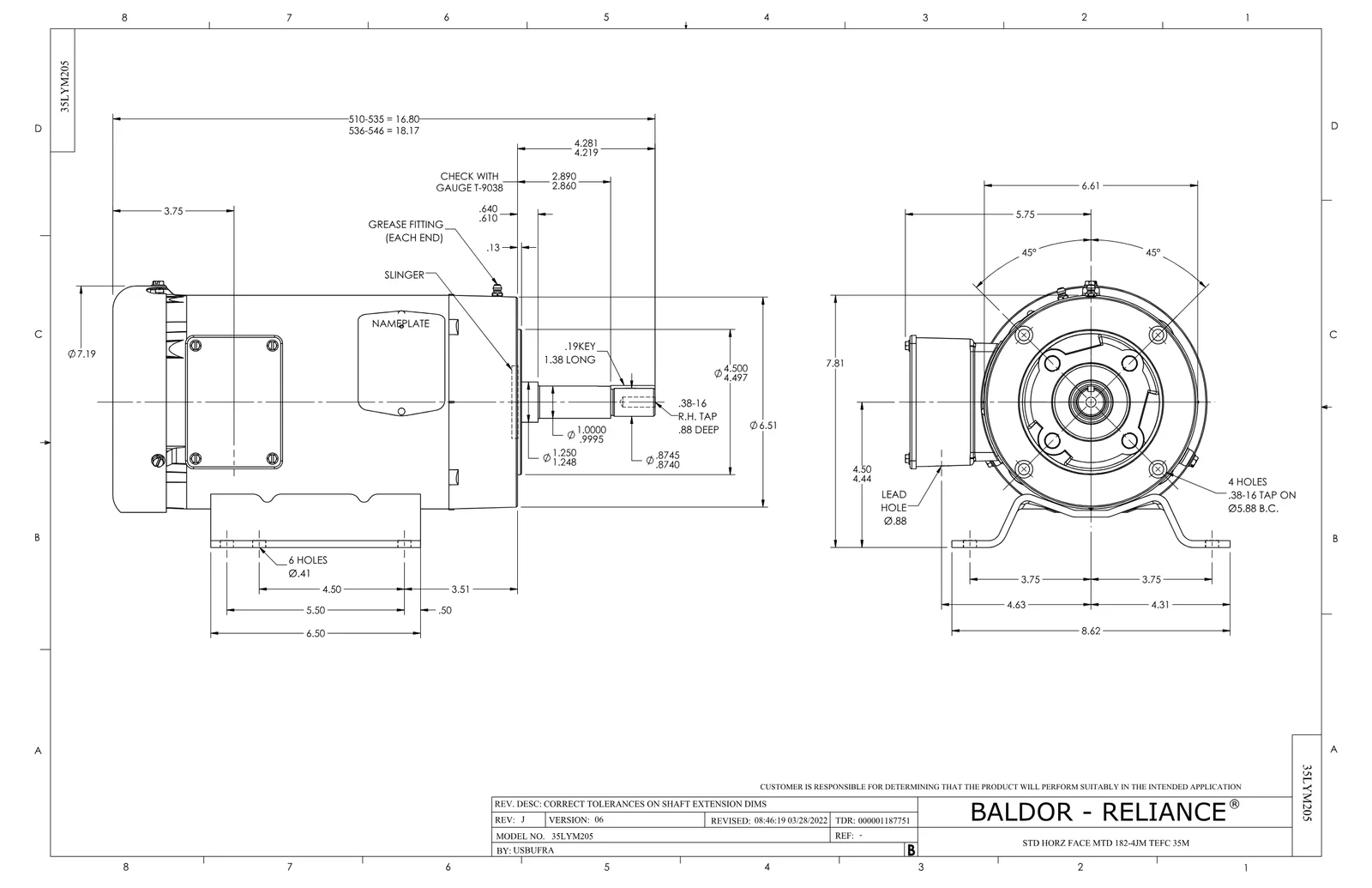

Dimension DrawingDimension SheetPDF·103 KB·English

Wiring DiagramWiring DiagramPDF·41 KB·English

DatasheetDatasheetPDF·669 KB·English

Performance CurvePerformance CurvePDF·59 KB·English

Spare Parts 5

The genuine spare parts used for servicing and repairing the Baldor EJMM3610T motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
36GS1000SP	GASKET-CONDUIT BOX, .06 THICK #SV-330 LE	1 pcs	831 motors
35FH4005A84SP	IEC FH W/GRSR, NO DIMPLES PRIMED	1 pcs	167 motors
34FN3002B01	EXTERNAL FAN, PLASTIC, .637/.639 HUB W/	1 pcs	623 motors
MG1050Y01	CELEROL BALDOR GOLD 5 GALLON BUCKET	0.017 gal	1,997 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
