Baldor EJMM3311T

Close Coupled Pump Motor - 7-1/2 hp, 1800 rpm, 3 ph, 230/460 V, 213JM Frame, OPSB (Open Slotted Band) Enclosure, 60 Hz, 1770 rpm Base, C-Face / Foot Mounted Mount, Continuous Duty

BaldorMFR # EJMM3311TSKU # YLS8NVX71MGBM5E

EnclosureODP

Frame213JM

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency7.500 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Close Coupled Pump Motor - 7-1/2 hp, 1800 rpm, 3 ph, 230/460 V, 213JM Frame, OPSB (Open Slotted Band) Enclosure, 60 Hz, 1770 rpm Base, C-Face / Foot Mounted Mount, Continuous Duty

Baldor EJMM3311T

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureODP

Frame213JM

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency7.500 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency460.0 V @ 60 HZ · 230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUSEEV · NEMA_PREMIUM

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage20.600 A @ 208.0 V · 9.800 A @ 460.0 V · 19.600 A @ 230.0 V

Design codeA

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load91.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)9.8 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeInverter Ready

KVA codeJ

Lifting lugsStandard Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size9 @ 14 AWG

Motor type3734M

Mounting arrangementF1

Number of poles4

Overall length18.19 IN

Power factor79

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeC-Face

Pulley shaft indicatorTapped & Key

Rodent screenIncluded

Service factor1.15

Shaft diameter0.875 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1770 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568138410

Motor CategoryClose Coupled Pump Motor

Motor Supply Voltage230/460 V

Base RPM1770 rpm

Warranty3 Year Warranty

Type Of BearingBall

IP Rating22/23

Harmonization Code8501.52.4000

Weight132 lbs

ApplicationsApplications for circulating and transferring fluids. Mounting designed to support pump unit.

Additional DetailsOver-sized ball bearings with locked drive end construction to minimize endplay. Super-E® motors have NEMA Premium® efficiency.

Mounting TypeC-Face / Foot Mounted

Product TypePump Motors

Nameplate

Catalog numberEJMM3311T

Specification number37F784L863G1

Horsepower (HP)7.5

Voltage (V)230/460

Current (A)19.6/9.8

Speed (rpm)1770

Frame size213JM

Frequency (Hz)60

Phase3

Service factor1.15

Code letter (locked rotor kVA)J

NEMA design letterA

Insulation classF

NEMA nominal efficiency (%)91

Power factor79

Rating40C AMB-CONT

CC number010A

EnclosureOPSB

Drive end bearing6309

Opposite drive end bearing6206

Usable at (V)50HZ 7.5HP 190/380V 23.2/11.6A

Nameplate numberNP3553LUA

Performance

General characteristics· 460 V, 60 Hz, 7.5 hp

Line-to-line resistance at 25 °C (ohms)1.67 Ω

Temperature rise at rated load (°C)35° C

Temperature rise at service factor load (°C)47° C

Start configurationDOL

Breakdown torque74.8 lb-ft

Pull-up torque37.1 lb-ft

Locked-rotor torque45.4 lb-ft

Starting current (A)72 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	6	39	60	73	79	82	83	81
Efficiency %	0	85	90.1	91.1	90.9	90.1	89	90.3
Speed rpm	1799	1793	1786	1779	1772	1764	1755	1766
Line amps A	4.87	5.34	6.47	7.99	9.87	11.9	14.2	11.1
Power W	228	1673	3116	4605	6189	7770	9424	7143
Torque lb-ft	0	5.53	11	16.5	22.2	27.8	33.5	25.5

Documents & CAD

For this product 3

Wiring DiagramWiring DiagramPDF·41 KB·English

DatasheetDatasheetPDF·645 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 1· shared by this product series

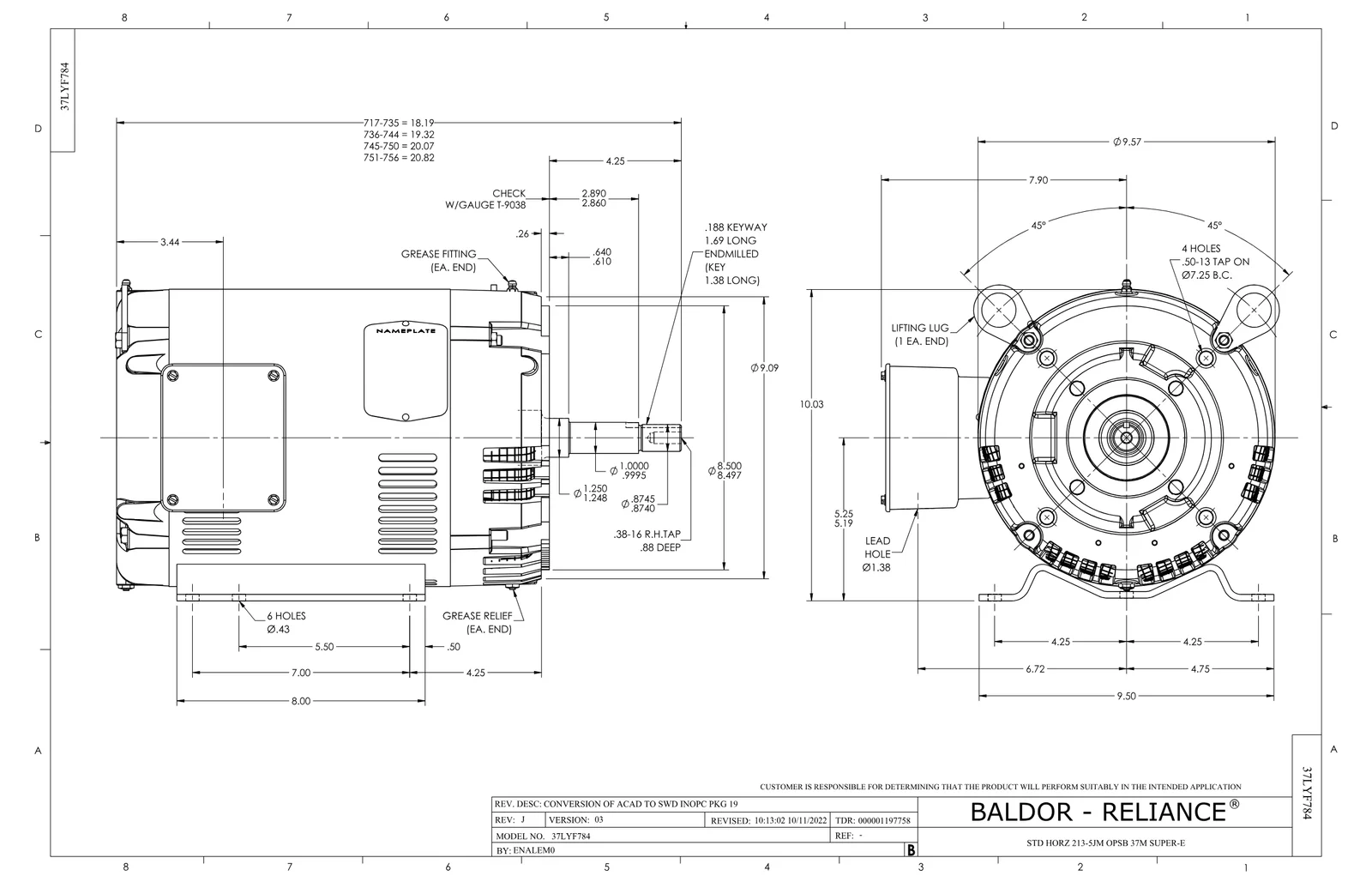

Dimension DrawingDimension SheetPDF·159 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 3

The genuine spare parts used for servicing and repairing the Baldor EJMM3311T motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
MG1050Y01	CELEROL BALDOR GOLD 5 GALLON BUCKET	0.028 gal	1,997 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
