How can I get a price quote for Baldor EJMM3158T-G?

You can request a fast quote for Baldor EJMM3158T-G from Yılsa Engineering. Reference part number YLS33SF6EFWZTSS. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor EJMM3158T-G in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor EJMM3158T-G genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor EJMM3158T-G?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor EJMM3158T-G

Close Coupled Pump Motor - 3 hp, 3600 rpm, 3 ph, 230/460 V, 145JM Frame, OPSB (Open Slotted Band) Enclosure, 60 Hz, 3450 rpm Base, C-Face / Foot Mounted Mount, Continuous Duty

BaldorMFR # EJMM3158T-GSKU # YLS33SF6EFWZTSS

EnclosureOPSB

Frame145JM

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency3.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Close Coupled Pump Motor - 3 hp, 3600 rpm, 3 ph, 230/460 V, 145JM Frame, OPSB (Open Slotted Band) Enclosure, 60 Hz, 3450 rpm Base, C-Face / Foot Mounted Mount, Continuous Duty

Baldor EJMM3158T-G

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureOPSB

Frame145JM

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency3.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)3600 RPM @ 60 HZ

Voltage at frequency230.0 V @ 60 HZ · 460.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUSEEV · NEMA PREMIUM · NEMA_PREMIUM

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage8.000 A @ 208.0 V · 7.600 A @ 230.0 V · 3.800 A @ 460.0 V

Design codeB

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load85.5 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)3.8 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classH

Inverter codeInverter Ready

KVA codeK

Lifting lugsNo Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size9 @ 18 AWG

Motor type3530M

Mounting arrangementF1

Number of poles2

Overall length15.13 IN

Power factor87

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeC-Face

Pulley shaft indicatorTapped & Key

Rodent screenIncluded

RoHS statusROHS COMPLIANT

Service factor1.15

Shaft diameter0.875 IN

Shaft extension locationPulley End

Shaft ground indicatorShaft Grounding

Shaft rotationReversible

Shaft slinger indicatorShaft Slinger

Speed (rpm)3450 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568663912

Motor CategoryClose Coupled Pump Motor

Motor Supply Voltage230/460 V

Base RPM3450 rpm

Harmonization Code8501.52.4000

Weight51 lbs

ApplicationsCommercial and industrial pump motor applications where adjustable speed drives are utilized.

Additional DetailsClass H insulated motor with AEGIS® bearing protection ring installed internally. Oversized ball bearings with locked drive end construction to minimize endplay.

Mounting TypeC-Face / Foot Mounted

Product TypePump Motors

Nameplate

Catalog numberEJMM3158T-G

Specification number35Z957P988G1

Horsepower (HP)3

Voltage (V)230/460

Current (A)7.6/3.8

Speed (rpm)3450

Frame size145JM

Frequency (Hz)60

Phase3

Service factor1.15

Code letter (locked rotor kVA)K

NEMA design letterB

Insulation classH

NEMA nominal efficiency (%)85.5

Power factor87

Rating40C AMB-CONT

CC number010A

EnclosureOPSB

Drive end bearing6206

Opposite drive end bearing6203

Usable at (V)50HZ 3HP 190/380V 9/4.5A

Nameplate numberNP3553LUA

Performance

General characteristics· 460 V, 60 Hz, 3 hp

Line-to-line resistance at 25 °C (ohms)5.8893 Ω

Temperature rise at rated load (°C)33° C

Temperature rise at service factor load (°C)40° C

Start configurationDOL

Breakdown torque18.1 lb-ft

Pull-up torque11.3 lb-ft

Locked-rotor torque15.1 lb-ft

Starting current (A)32.5 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	13	50	72	82	87	90	91	89
Efficiency %	0	76.1	84.3	86	85.8	84.7	83	85.1
Speed rpm	3592.4	3569.1	3541.6	3510.6	3478.3	3442.7	3400.2	3457
Line amps A	1.55	1.77	2.29	2.97	3.73	4.58	5.53	4.24
Power W	155	704	1316	1952	2600	3287	4032	3012
Torque lb-ft	0	1.05	2.19	3.34	4.515	5.68	6.92	5.21

Documents & CAD

For this product 4

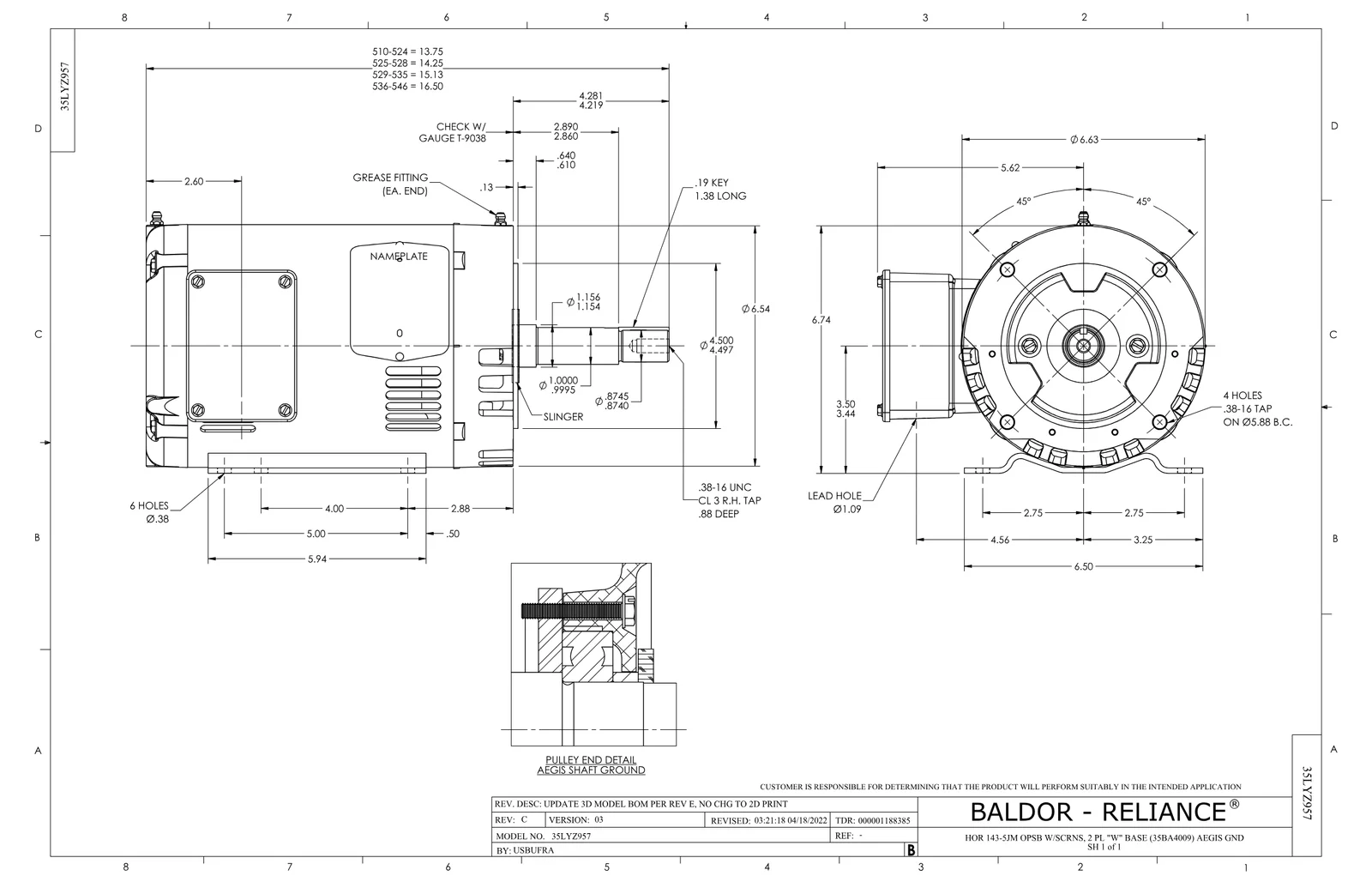

Dimension DrawingDimension SheetPDF·140 KB·English

Wiring DiagramWiring DiagramPDF·41 KB·English

DatasheetDatasheetPDF·631 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

CAD Files 13

3D Model

2D Drawing

Spare Parts 3

The genuine spare parts used for servicing and repairing the Baldor EJMM3158T-G motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
MG1050Y01	CELEROL BALDOR GOLD 5 GALLON BUCKET	0.017 gal	1,997 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
