Baldor EJMM3155T

Baldor-Reliance EJMM3155T is a 2 HP, 3450 rpm, 3-phase 230/460 V 60 Hz, 145JM frame, OPSB enclosed general purpose three-phase induction motor.

BaldorMFR # EJMM3155TSKU # YLSXCQMOXZ85AJX

EnclosureOPSB

Frame145JM

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency2.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance EJMM3155T is a 2 HP, 3450 rpm, 3-phase 230/460 V 60 Hz, 145JM frame, OPSB enclosed general purpose three-phase induction motor.

Baldor EJMM3155T

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureOPSB

Frame145JM

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency2.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)3600 RPM @ 60 HZ

Voltage at frequency230.0 V @ 60 HZ · 460.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsNEMA_PREMIUM · NEMA PREMIUM · CURUSEEV

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage2.500 A @ 460.0 V · 5.000 A @ 230.0 V · 5.600 A @ 208.0 V

Design codeB

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load85.5 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)2.5 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeInverter Ready

KVA codeK

Lifting lugsNo Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size9 @ 18 AWG

Motor type3524M

Mounting arrangementF1

Number of poles2

Overall length13.75 IN

Power factor87

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeC-Face

Pulley shaft indicatorTapped & Key

Rodent screenIncluded

Service factor1.15

Shaft diameter0.875 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorShaft Slinger

Speed (rpm)3450 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568138274

Nameplate

Catalog numberEJMM3155T

Specification number35T922Q054G1

Horsepower (HP)2

Voltage (V)230/460

Current (A)5/2.5

Speed (rpm)3450

Frame size145JM

Frequency (Hz)60

Phase3

Service factor1.15

Code letter (locked rotor kVA)K

NEMA design letterB

Insulation classF

NEMA nominal efficiency (%)85.5

Power factor87

Rating40C AMB-CONT

CC number010A

EnclosureOPSB

Drive end bearing6206

Opposite drive end bearing6203

Usable at (V)50HZ 2HP 190/380V 6/3A

Nameplate numberNP3553LUA

Performance

General characteristics· 460 V, 60 Hz, 2 hp

Line-to-line resistance at 25 °C (ohms)7.37 Ω

Temperature rise at rated load (°C)31° C

Temperature rise at service factor load (°C)37° C

Start configurationDOL

Breakdown torque11 lb-ft

Pull-up torque8 lb-ft

Locked-rotor torque9.6 lb-ft

Starting current (A)21.5 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	12	51	70	81	86	87	88	87
Efficiency %	0	78.3	85.2	86.9	86.5	85.6	84.2	86
Speed rpm	3599	3570	3541	3510	3476	3441	3403	3455
Line amps A	1	1.2	1.6	2	2.5	3.1	3.7	2.86
Power W	96	486	886	1292	1714	2141	2583	1970
Torque lb-ft	0	0.75	1.5	2.25	3	3.75	4.5	3.45

Documents & CAD

For this product 3

Wiring DiagramWiring DiagramPDF·41 KB·English

DatasheetDatasheetPDF·597 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 1· shared by this product series

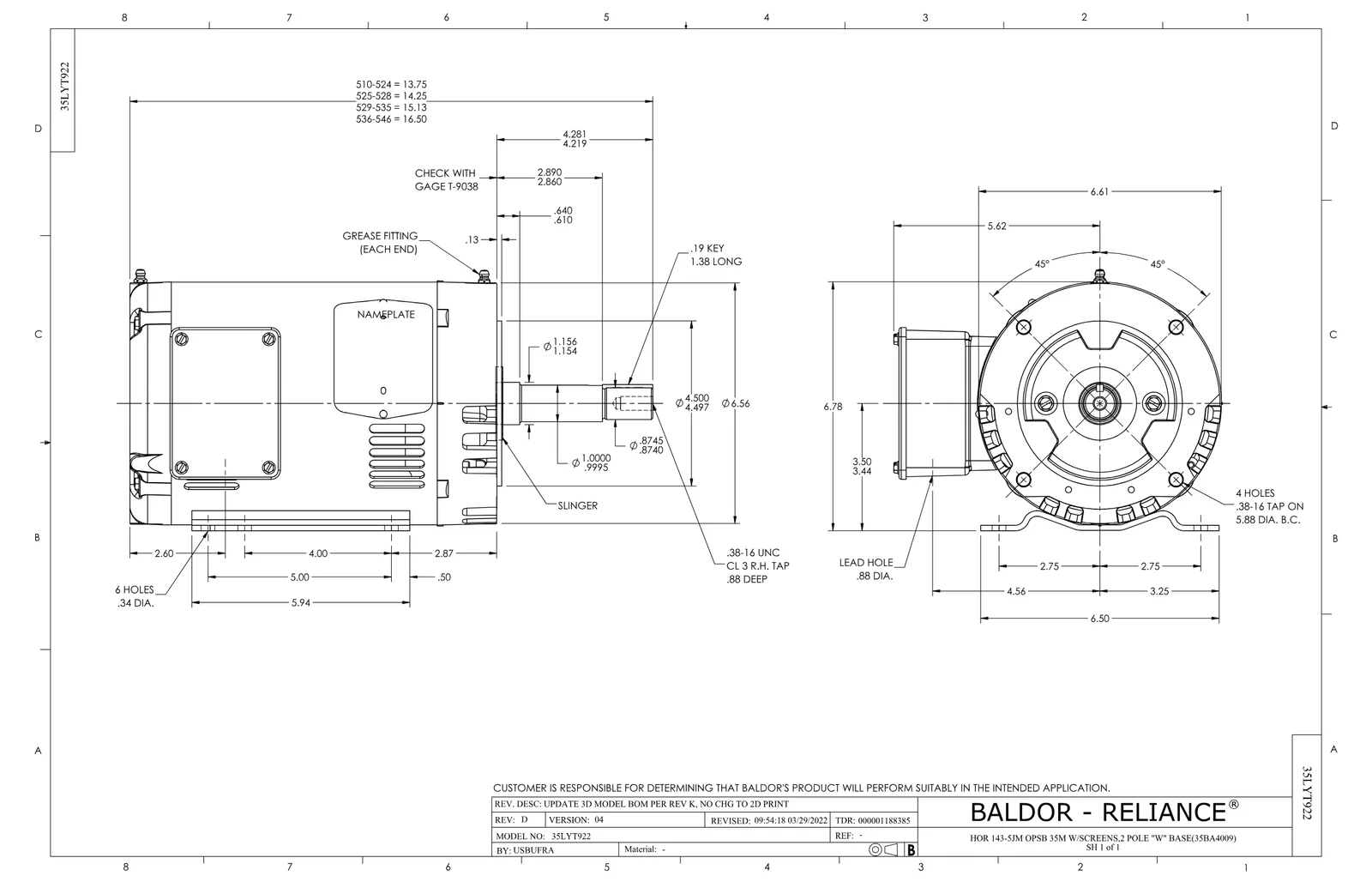

Dimension DrawingDimension SheetPDF·111 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 2

The genuine spare parts used for servicing and repairing the Baldor EJMM3155T motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.
