Baldor EJMM2539T-G

Baldor-Reliance EJMM2539T-G is a 40 HP, 1770 rpm, 3-phase 230/460 V 60 Hz, 324JM frame, OPSB enclosed general purpose three-phase induction motor.

BaldorMFR # EJMM2539T-GSKU # YLSL2XFHPOGKSTU

EnclosureOPSB

Frame324JM

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency40.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance EJMM2539T-G is a 40 HP, 1770 rpm, 3-phase 230/460 V 60 Hz, 324JM frame, OPSB enclosed general purpose three-phase induction motor.

Baldor EJMM2539T-G

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureOPSB

Frame324JM

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency40.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency230.0 V @ 60 HZ · 460.0 V @ 60 HZ

Agency approvalsCURUSEEV · NEMA PREMIUM · NEMA_PREMIUM

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage99.000 A @ 208.0 V · 98.000 A @ 230.0 V · 49.000 A @ 460.0 V

Design codeA

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load94.1 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)49.0 a

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeInverter Ready

IP ratingIP23

KVA codeH

Lifting lugsStandard Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead terminationFlying Leads

Motor lead quantity/wire size9 @ 8 AWG

Motor type4064M

Mounting arrangementF1

Number of poles4

Overall length27.44 IN

Power factor82

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeC-Face

Pulley shaft indicatorTapped & Key

Rodent screenIncluded

Service factor1.15

Shaft diameter1.250 IN

Shaft ground indicatorShaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1770 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568911761

Nameplate

Catalog numberEJMM2539T-G

EnclosureOPSB

Specification number40E285X166G2

CC number010A

Frame size324JM

Horsepower (HP)40

Insulation classH

Frequency (Hz)60

Speed (rpm)1770

Phase3

NEMA design letterA

Voltage (V)230/460

Code letter (locked rotor kVA)H

Opposite drive end bearing6309

Drive end bearing6312

Current (A)98/49

Rating40C AMB-CONT

NEMA nominal efficiency (%)94.1

GreasePOLYREX EM

Power factor82

Service factor1.15

Usable at (V)50HZ 40HP 190/380V 114/57A

Nameplate numberNP3554LUA

Performance

General characteristics· 460 V, 60 Hz, 40 hp

Line-to-line resistance at 25 °C (ohms)0.16236 Ω

Temperature rise at rated load (°C)41° C

Temperature rise at service factor load (°C)51° C

Start configurationDOL

Breakdown torque427 lb-ft

Pull-up torque187 lb-ft

Locked-rotor torque246 lb-ft

Starting current (A)330 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	4	43	65	76	82	85	85	84
Efficiency %	0	91.1	94	94.5	94.2	93.6	92.8	93.8
Speed rpm	1798.9	1792.4	1785	1777.8	1770.2	1762.1	1752.8	1765
Line amps A	21.1	24.1	30.7	39.2	48.7	59.3	71.3	55.1
Power W	654	8234	16004	23853	31893	39995	48344	36754
Torque lb-ft	0	29.2	58.9	88.8	119	149	180	137

Documents & CAD

For this product 3

Wiring DiagramWiring DiagramPDF·41 KB·English

DatasheetDatasheetPDF·626 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 2· shared by this product series

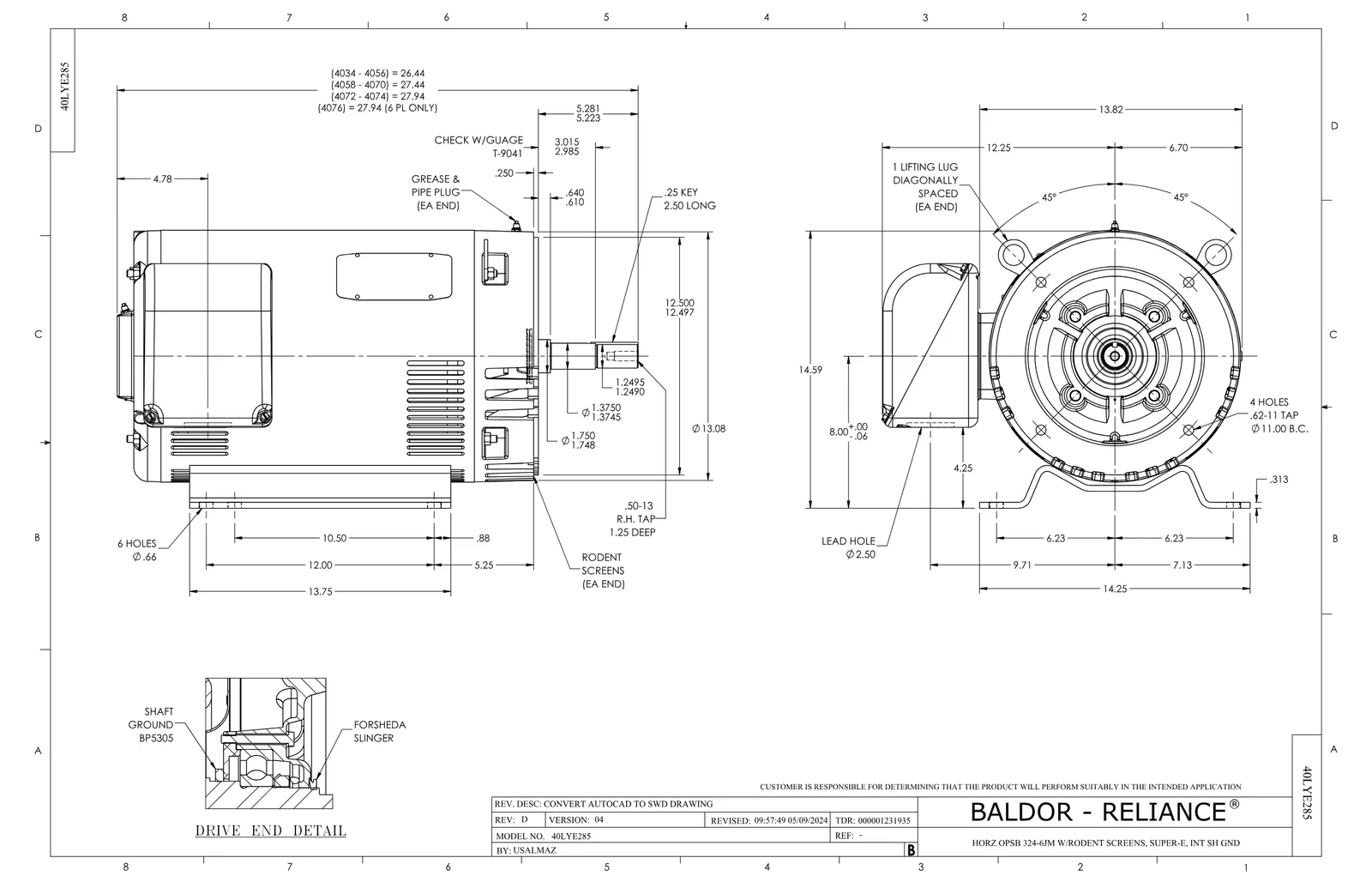

Dimension DrawingDimension SheetPDF·139 KB·English

Technical DrawingDrawingPDF·87 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 5

The genuine spare parts used for servicing and repairing the Baldor EJMM2539T-G motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
HW1001A31	LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I	10 pcs	1,025 motors
51XW2520A12	.25-20 X .75, TAPTITE II, HEX WSHR SLTD	4 pcs	1,543 motors
MG1050Y01	CELEROL BALDOR GOLD 5 GALLON BUCKET	0.125 gal	1,997 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
