Baldor EJMM2538T

Close Coupled Pump Motor - 40 hp, 3600 rpm, 3 ph, 230/460 V, 286JM Frame, OPSB (Open Slotted Band) Enclosure, 60 Hz, 3510 rpm Base, C-Face / Foot Mounted Mount, Continuous Duty

BaldorMFR # EJMM2538TSKU # YLSFX0TT8KAL7AQ

EnclosureODP

Frame286JM

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency40.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Close Coupled Pump Motor - 40 hp, 3600 rpm, 3 ph, 230/460 V, 286JM Frame, OPSB (Open Slotted Band) Enclosure, 60 Hz, 3510 rpm Base, C-Face / Foot Mounted Mount, Continuous Duty

Baldor EJMM2538T

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureODP

Frame286JM

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency40.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)3600 RPM @ 60 HZ

Voltage at frequency460.0 V @ 60 HZ · 230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUSEEV · NEMA_PREMIUM

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage90.000 A @ 230.0 V · 99.000 A @ 208.0 V · 45.000 A @ 460.0 V

Design codeA

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load92.4 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)45.0 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeInverter Ready

KVA codeH

Lifting lugsStandard Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size9 @ 8 AWG

Motor type3956M

Mounting arrangementF1

Number of poles2

Overall length26.56 IN

Power factor90

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeC-Face

Pulley shaft indicatorTapped & Key

Rodent screenIncluded

Service factor1.15

Shaft diameter1.375 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorShaft Slinger

Speed (rpm)3510 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568138199

Motor CategoryClose Coupled Pump Motor

Motor Supply Voltage230/460 V

Base RPM3510 rpm

Warranty3 Year Warranty

Type Of BearingBall

IP Rating22/23

Harmonization Code8501.52.8040

Weight377 lbs

ApplicationsApplications for circulating and transferring fluids. Mounting designed to support pump unit.

Additional DetailsOver-sized ball bearings with locked drive end construction to minimize endplay. Super-E® motors have NEMA Premium® efficiency.

Mounting TypeC-Face / Foot Mounted

Product TypePump Motors

Nameplate

Catalog numberEJMM2538T

EnclosureOPSB

Specification number39E312X287

CC number010A

Frame size286JM

Horsepower (HP)40

Insulation classF

Frequency (Hz)60

Speed (rpm)3510

Phase3

NEMA design letterA

Voltage (V)230/460

kVA codeH

Opposite drive end bearing6208

Drive end bearing6312

Current (A)90/45

Rating40C AMB-CONT

GreasePOLYREX EM

NEMA nominal efficiency (%)92.4

Power factor90

Service factor1.15

Nameplate numberNP2138LUA

Performance

General characteristics· 460 V, 60 Hz, 40 hp

Line-to-line resistance at 25 °C (ohms)0.211 Ω

Temperature rise at rated load (°C)60° C

Temperature rise at service factor load (°C)77° C

Start configurationDOL

Breakdown torque252 lb-ft

Pull-up torque80.9 lb-ft

Locked-rotor torque115 lb-ft

Starting current (A)326 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	5	65	82	88	90	91	92	91
Efficiency %	0	92.7	94.1	93.8	92.7	91.4	89.9	91.9
Speed rpm	3599	3578	3555	3531	3503	3474	3441	3486
Line amps A	11.3	16.1	24.4	34.1	45.3	56.6	68.6	52.08
Power W	450	8320	16286	24342	32581	40963	49502	37610
Torque lb-ft	0	15.175	30.35	45.525	60.7	75.875	91.05	69.8

Documents & CAD

For this product 3

Wiring DiagramWiring DiagramPDF·37 KB·English

DatasheetDatasheetPDF·600 KB·English

Performance CurvePerformance CurvePDF·61 KB·English

Series documents 2· shared by this product series

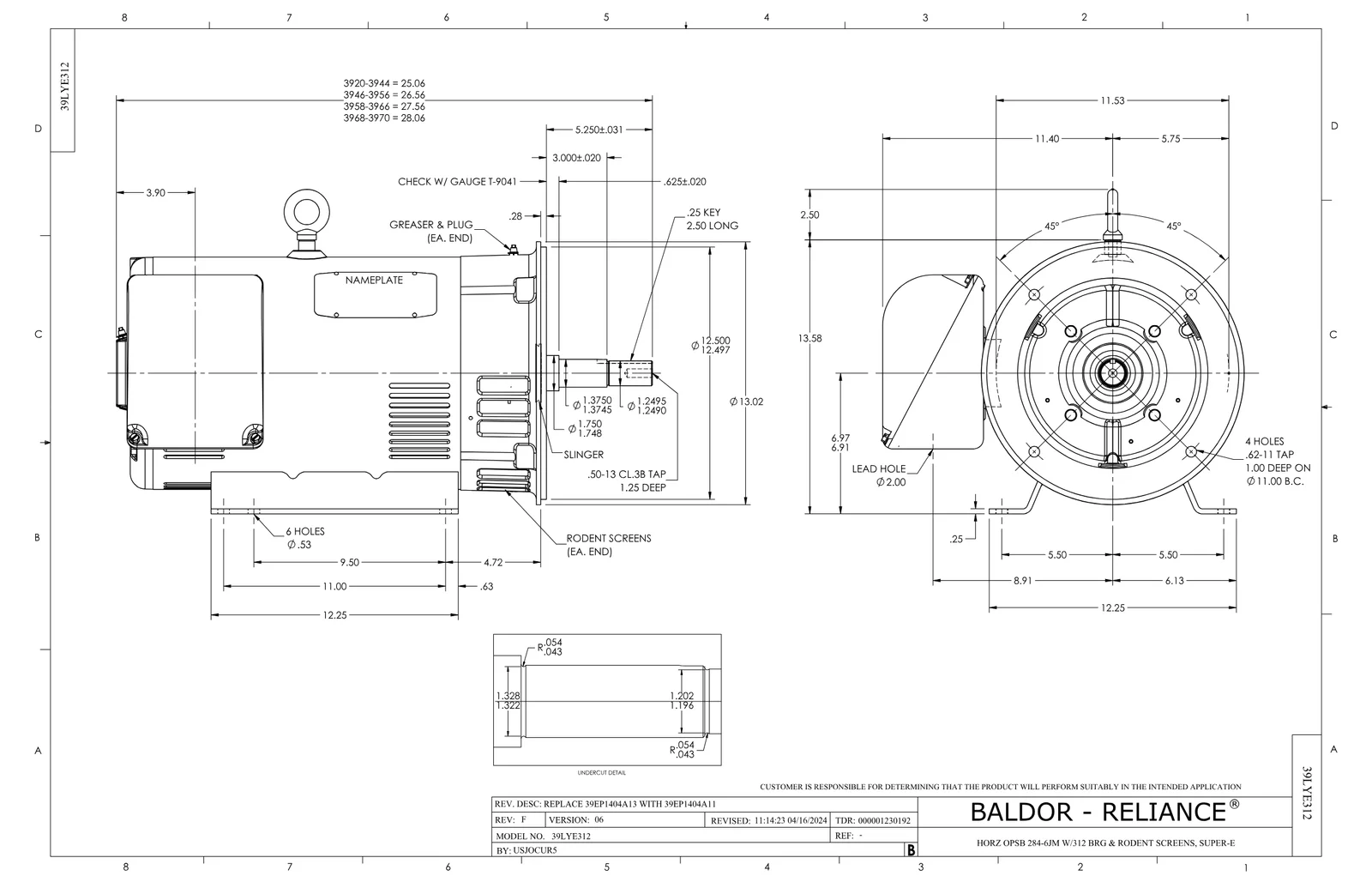

Dimension DrawingDimension SheetPDF·115 KB·English

Technical DrawingDrawingPDF·87 KB·English

CAD Files 8

3D Model

2D Drawing

Spare Parts 7

The genuine spare parts used for servicing and repairing the Baldor EJMM2538T motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
HW1001A31	LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I	10 pcs	1,025 motors
10CB3000SP	KOBX, CAST W/2.00 LEAD HOLE	1 pcs	220 motors
39EP3200A01SP	FR/PU ENDPLATE, MACH	1 pcs	100 motors
51XW2520A12	.25-20 X .75, TAPTITE II, HEX WSHR SLTD	4 pcs	1,543 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
MG1050Y01	CELEROL BALDOR GOLD 5 GALLON BUCKET	0.05 gal	1,997 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
