Baldor EIM3540A-P

Baldor-Reliance EIM3540A-P is a 1 HP, 1760 rpm (60 Hz) / 1450 rpm (50 Hz), 3-phase 460 V 60 Hz / 380 V 50 Hz, 56YZ frame, TENV enclosed general purpose three-phase induction motor.

BaldorMFR # EIM3540A-PSKU # YLSBBQKMV1NJI3A

EnclosureTENV

Frame56YZ

Frame materialSteel

Frequency (Hz)50.00 Hz · 60.00 Hz

Motor letter typeThree Phase

Output at frequency1.000 HP @ 50 HZ · 1.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance EIM3540A-P is a 1 HP, 1760 rpm (60 Hz) / 1450 rpm (50 Hz), 3-phase 460 V 60 Hz / 380 V 50 Hz, 56YZ frame, TENV enclosed general purpose three-phase induction motor.

Baldor EIM3540A-P

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTENV

Frame56YZ

Frame materialSteel

Frequency (Hz)50.00 Hz · 60.00 Hz

Motor letter typeThree Phase

Output at frequency1.000 HP @ 50 HZ · 1.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency460.0 V @ 60 HZ · 380.0 V @ 50 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUSEEV · NEMA PREMIUM · NEMA PREMIUM (OLD LOGO)

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorNo Mounting

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage1.700 A @ 380.0 V · 1.500 A @ 460.0 V

Design codeB

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load85.5 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)1.5 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeInverter Ready

IP ratingNONE

KVA codeM

Lifting lugsNo Lifting Lugs

Locked bearing indicatorNo Locked Bearing

Motor lead exitLead Hole

Motor lead terminationFlying Leads

Motor lead quantity/wire size3 @ 18 AWG

Motor type3524M

Mounting arrangementF1

Number of poles4

Overall length10.80 IN

Power factor72

Product familyGeneral Purpose

Pulley end bearing typeNo Bearing

Pulley face codeNo Endplate

Pulley shaft indicatorPump Coupling Shaft

Rodent screenNone

RoHS statusROHS COMPLIANT

Service factor1.00

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1450 rpm · 1760 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1Automatic Thermal Overload

Winding thermal 1 locationES

Winding thermal 2None

UPC781568832516

Nameplate

Catalog numberEIM3540A-P

Specification number35K666G309G1

Horsepower (HP)1

Voltage (V)460//380

Current (A)1.5//1.7

Speed (rpm)1760//1450

Frame size56YZ

Frequency (Hz)60//50

Phase3

Service factor1.00

Code letter (locked rotor kVA)M

NEMA design letterB

Insulation classF

NEMA nominal efficiency (%)85.5

Power factor72

Rating40C AMB-CONT

CC number010A

Opposite drive end bearing6203

EnclosureTENV

Nameplate numberNP3126L

Performance

General characteristics· 460 V, 60 Hz, 1 hp

Line-to-line resistance at 25 °C (ohms)15 Ω

Temperature rise at rated load (°C)66° C

Start configurationDOL

Breakdown torque14.3 lb-ft

Pull-up torque10.2 lb-ft

Locked-rotor torque11.9 lb-ft

Starting current (A)13.9 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%
Power factor %	8	32	50	63	72	78	82
Efficiency %	0	73.5	82.9	85.7	86.2	86	85.1
Speed rpm	1798	1788	1778	1768	1756	1744	1732
Line amps A	0.97	1.01	1.12	1.28	1.5	1.73	2
Power W	64	259	448	648	863	1084	1313
Torque lb-ft	0	0.75	1.47	2.21	2.98	3.76	4.54

Documents & CAD

For this product 4

Dimension DrawingDimension SheetPDF·104 KB·English

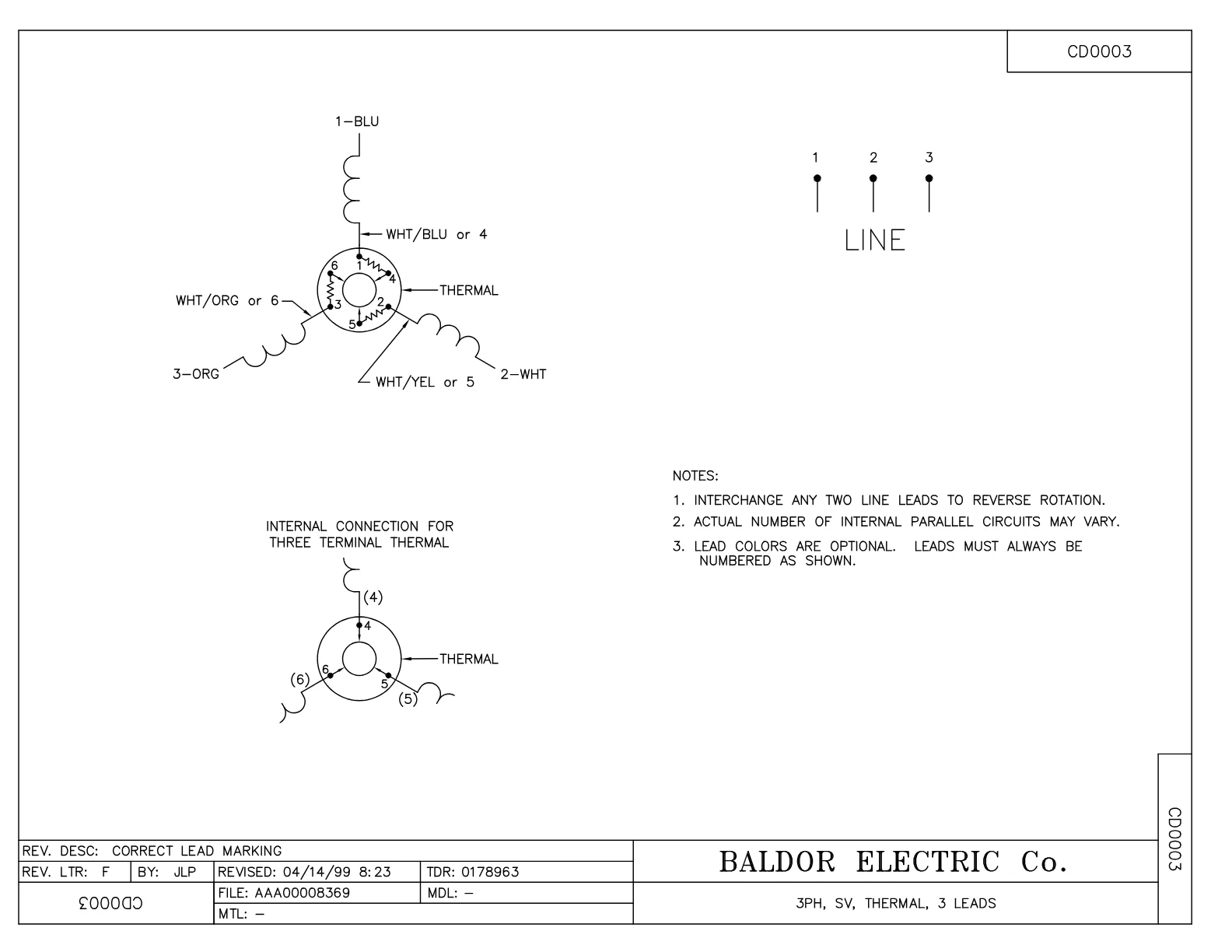

Wiring DiagramWiring DiagramPDF·34 KB·English

DatasheetDatasheetPDF·582 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Spare Parts 3

The genuine spare parts used for servicing and repairing the Baldor EIM3540A-P motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
51XW2520A12	.25-20 X .75, TAPTITE II, HEX WSHR SLTD	4 pcs	1,543 motors
LB1118	LABEL,WARNING (ROLL LABEL)	1 pcs	223 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
