Baldor EHM2523T-8

Baldor-Reliance EHM2523T-8 is a 15 HP, 1765 rpm, 3-phase 200 V 60 Hz, 254T frame, ODP enclosed general purpose three-phase induction motor.

BaldorMFR # EHM2523T-8SKU # YLSMGENOEIYUAC

EnclosureODP

Frame254T

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency15.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance EHM2523T-8 is a 15 HP, 1765 rpm, 3-phase 200 V 60 Hz, 254T frame, ODP enclosed general purpose three-phase induction motor.

Baldor EHM2523T-8

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureODP

Frame254T

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency15.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency200.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCSA · UR

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage40.000 A @ 208.0 V · 41.000 A @ 200.0 V

Design codeA

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load93.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)41.0 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeInverter Ready

KVA codeH

Lifting lugsStandard Lifting Lugs

Locked bearing indicatorNo Locked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size6 @ 8 AWG

Motor type3948M

Mounting arrangementF1

Number of poles4

Overall length23.19 IN

Power factor85

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

Service factor1.15

Shaft diameter1.625 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1765 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodPart Winding

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568519233

Nameplate

Catalog numberEHM2523T-8

Specification number39R006Y389G1

Horsepower (HP)15

Voltage (V)200

Current (A)41

Speed (rpm)1765

Frame size254T

Frequency (Hz)60

Phase3

Service factor1.15

Code letter (locked rotor kVA)H

NEMA design letterA

Insulation classF

NEMA nominal efficiency (%)93

Power factor85

Rating40C AMB-CONT

CC number010A

Usable at 208VN/A

Drive end bearing6309

Opposite drive end bearing6208

EnclosureOPSB

Nameplate numberNP2094E06B03

Performance

General characteristics· 200 V, 60 Hz, 15 hp

Line-to-line resistance at 25 °C (ohms)0.108 Ω

Temperature rise at rated load (°C)26° C

Temperature rise at service factor load (°C)32° C

Start configurationDOL

Breakdown torque145 lb-ft

Pull-up torque62.18 lb-ft

Locked-rotor torque79.47 lb-ft

Starting current (A)277 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	5	50	72	81	85	87	87	86
Efficiency %	0	89.8	93	93.5	93	92.3	91.3	92.6
Speed rpm	1799	1792	1785	1778	1769	1760	1750	1764
Line amps A	15.15	18.08	24.24	31.96	40.84	50.2	60.92	46.5
Power W	287	3142	6026	8972	12008	15070	18400	13845
Torque lb-ft	0	11.09	22.12	33.22	44.48	55.67	67.59	51.2

Documents & CAD

For this product 3

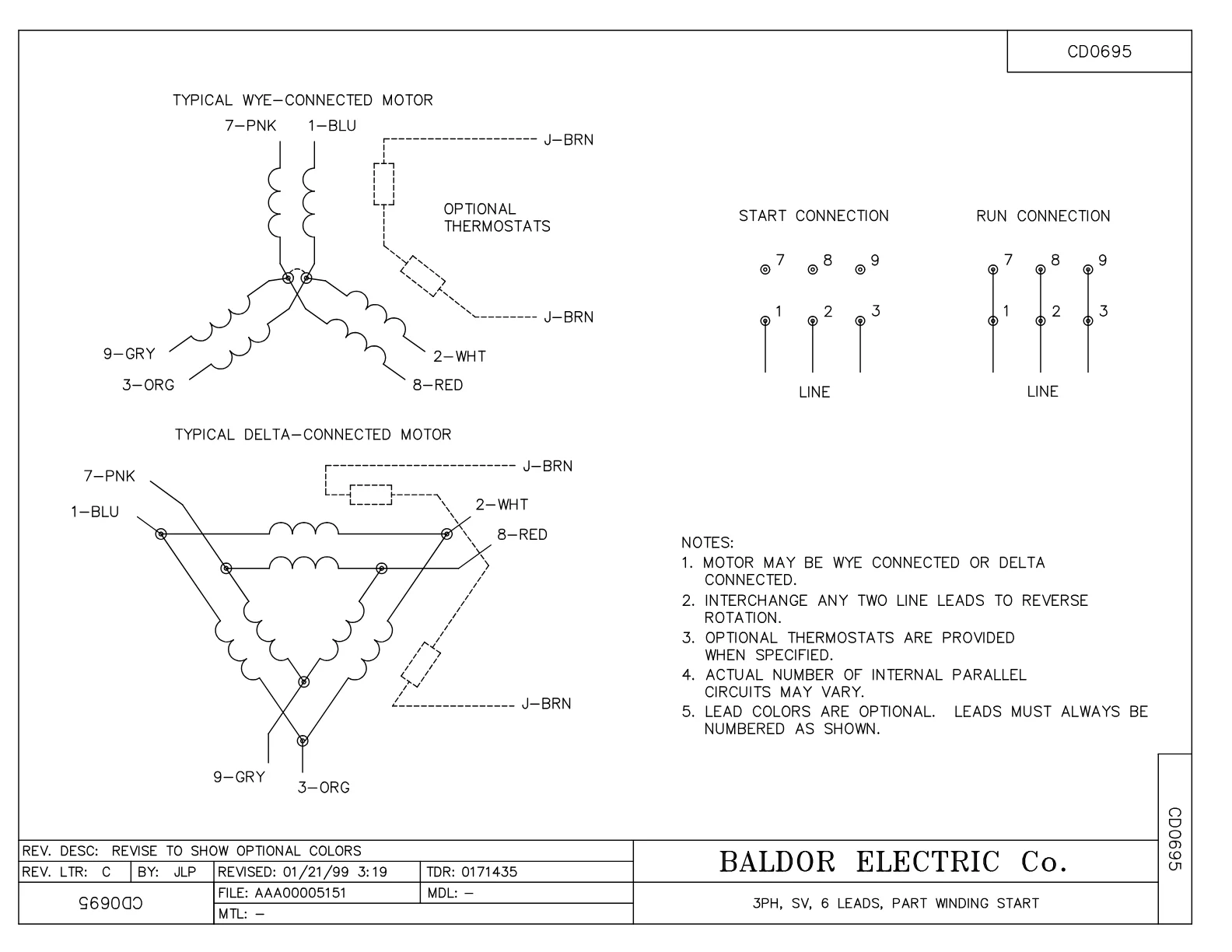

Wiring DiagramWiring DiagramPDF·51 KB·English

DatasheetDatasheetPDF·623 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 2· shared by this product series

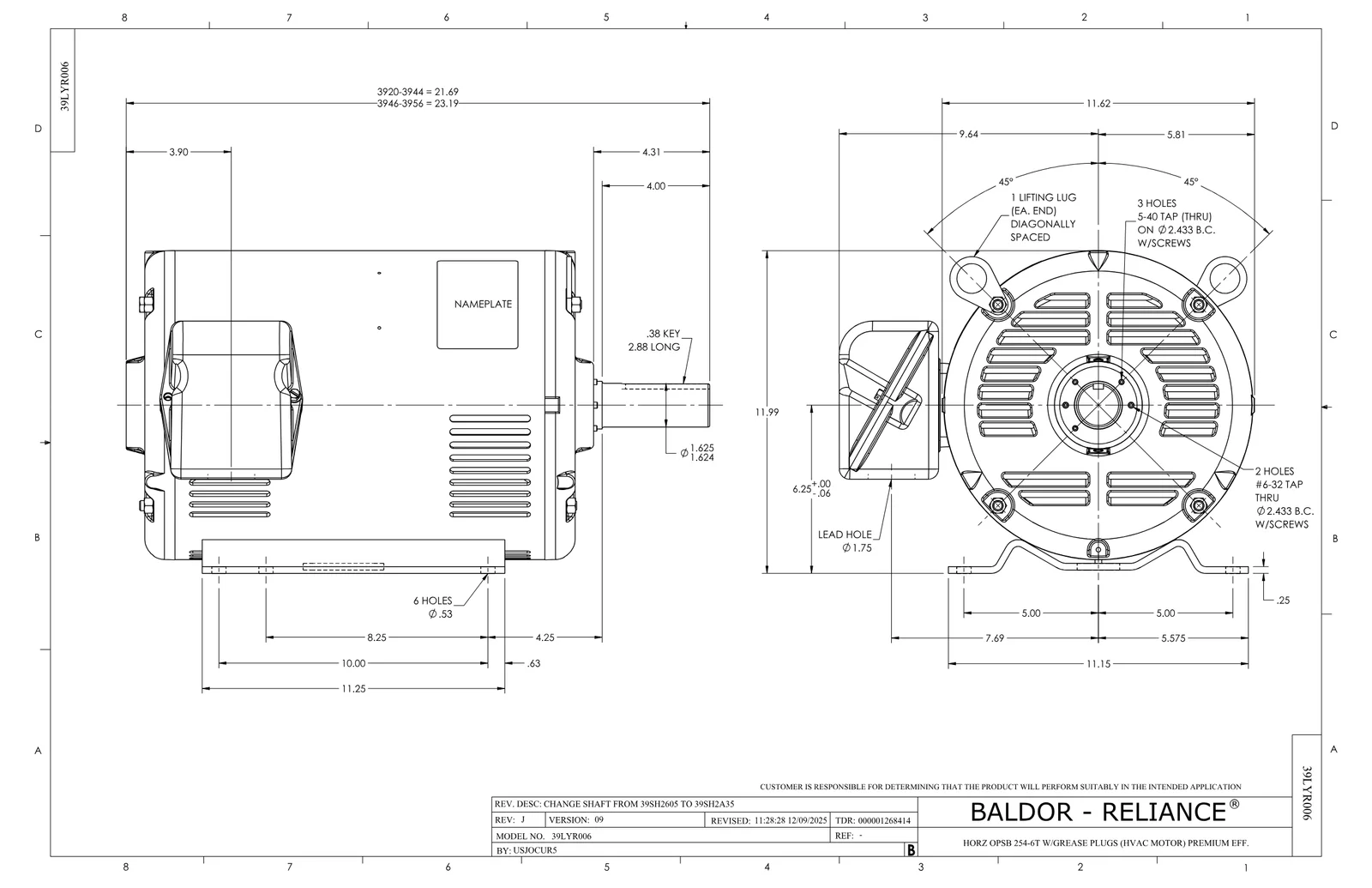

Dimension DrawingDimension SheetPDF·125 KB·English

Technical DrawingDrawingPDF·87 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 3

The genuine spare parts used for servicing and repairing the Baldor EHM2523T-8 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
51XW2520A12	.25-20 X .75, TAPTITE II, HEX WSHR SLTD	4 pcs	1,543 motors
39EP3200A01SP	FR/PU ENDPLATE, MACH	1 pcs	100 motors
09CB3501SP	CONDUIT BOX LID FOR 09CB3001 & 09CB3002	1 pcs	392 motors
