Baldor EGDM4104T

Farm Duty Motor - 30 hp, 1800 rpm, 3 ph, 230/460 V, 286TZ Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1760 rpm Base, Rigid Base Mount, Continuous Duty

BaldorMFR # EGDM4104TSKU # YLSJAZ8LOBZN7FW

EnclosureTEFC

Frame286TZ

Frame materialCast Iron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency30.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Farm Duty Motor - 30 hp, 1800 rpm, 3 ph, 230/460 V, 286TZ Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1760 rpm Base, Rigid Base Mount, Continuous Duty

Baldor EGDM4104T

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame286TZ

Frame materialCast Iron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency30.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency230.0 V @ 60 HZ · 460.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCSA EEV · NEMA_PREMIUM · UR

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage78.000 A @ 208.0 V · 76.000 A @ 230.0 V · 38.000 A @ 460.0 V

Design codeA

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load93.6 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)38.0 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeInverter Ready

IP ratingNONE

KVA codeJ

Lifting lugsStandard Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size9 @ 8 AWG

Motor type1056M

Mounting arrangementF1

Number of poles4

Overall length28.76 IN

Power factor80

Product familyGeneral Purpose

Pulley end bearing typeSealed Bearing

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

Service factor1.15

Shaft diameter1.875 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorShaft Slinger

Speed (rpm)1760 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568522431

Motor CategoryGrain Dryer Motor (Centrifugal)

Motor Supply Voltage230/460 V

Base RPM1760 rpm

Weight445 lbs

Mounting TypeRigid Base

Product TypeFarm Duty Motors

Nameplate

Catalog numberEGDM4104T

Specification number10K051Y538G1

Horsepower (HP)30

Voltage (V)230/460

Current (A)76/38

Speed (rpm)1760

Frame size286TZ

Frequency (Hz)60

Phase3

Service factor1.15

Code letter (locked rotor kVA)J

NEMA design letterA

Insulation classF

NEMA nominal efficiency (%)93.6

Power factor80

Rating40C AMB-CONT

CC number010A

Drive end bearing6311

Opposite drive end bearing6309

EnclosureTEFC

Nameplate numberNP3126L

Performance

General characteristics· 460 V, 60 Hz, 30 hp

Line-to-line resistance at 25 °C (ohms)0.19377 Ω

Temperature rise at rated load (°C)64° C

Temperature rise at service factor load (°C)76° C

Start configurationDOL

Breakdown torque330 lb-ft

Pull-up torque142 lb-ft

Locked-rotor torque178 lb-ft

Starting current (A)270 A

Line-to-line resistance at 25 °C (ohms)0.202 Ω

Temperature rise at rated load (°C)52° C

Temperature rise at service factor load (°C)63° C

Start configurationDOL

Breakdown torque248 lb-ft

Pull-up torque103 lb-ft

Locked-rotor torque129 lb-ft

Starting current (A)228 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	5	41	63	73	80	82	85	81
Efficiency %	0	87.6	92.3	93.5	93.7	93.4	92.9	93.5
Speed rpm	1798.9	1792.2	1787.6	1782.4	1776.5	1770.3	1762.1	1773
Line amps A	17.9	19.8	24.3	30.7	37.6	45.6	55.2	42.4
Power W	739	6422	12170	17959	23905	29888	37297	27495
Torque lb-ft	0	22.1	44.1	66.2	88.7	111	138	102

Documents & CAD

For this product 4

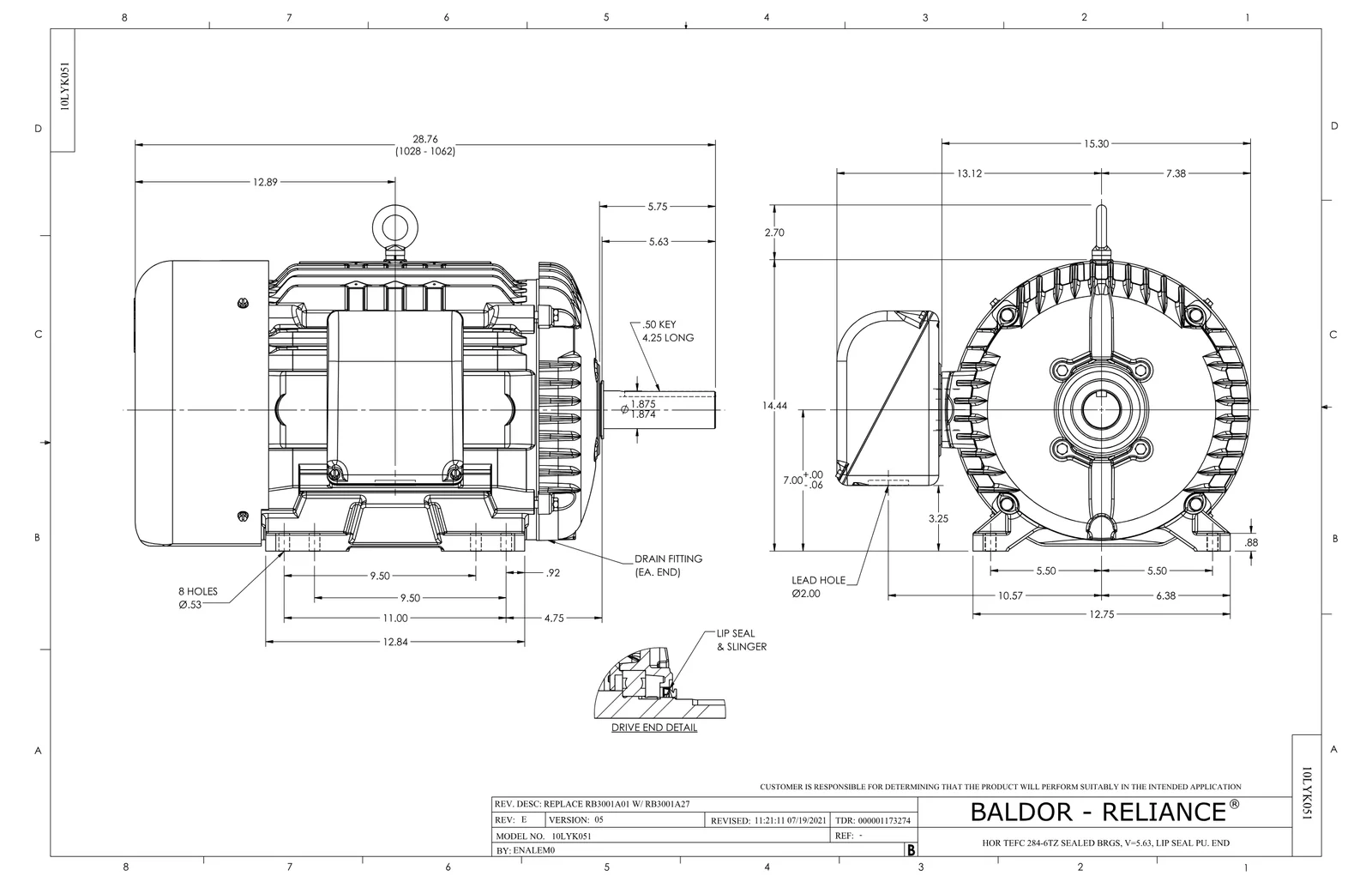

Dimension DrawingDimension SheetPDF·189 KB·English

Wiring DiagramWiring DiagramPDF·37 KB·English

DatasheetDatasheetPDF·756 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 1· shared by this product series

Technical DrawingDrawingPDF·87 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 7

The genuine spare parts used for servicing and repairing the Baldor EGDM4104T motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
10CB3000SP	KOBX, CAST W/2.00 LEAD HOLE	1 pcs	220 motors
HW1001A31	LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I	8 pcs	1,025 motors
10GS1000	GASKET, CONDUIT BOX LID	1 pcs	209 motors
51XW2520A12	.25-20 X .75, TAPTITE II, HEX WSHR SLTD	4 pcs	1,543 motors
09FN3001C02	EXTERNAL FAN, PLASTIC (COMES W/SCREW FRO	1 pcs	155 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
