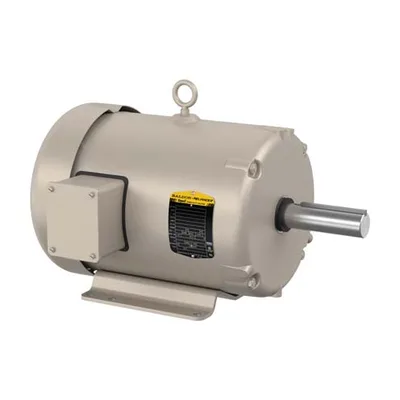

Baldor EGDM3710T

Farm Duty Motor - 7-1/2 hp, 1800 rpm, 3 ph, 230/460 V, 213TZ Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1770 rpm Base, Rigid Base Mount, Continuous Duty

BaldorMFR # EGDM3710TSKU # YLSB50QSGRO0ZMA

EnclosureTEFC

Frame213TZ

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency7.500 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Farm Duty Motor - 7-1/2 hp, 1800 rpm, 3 ph, 230/460 V, 213TZ Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1770 rpm Base, Rigid Base Mount, Continuous Duty

Baldor EGDM3710T

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame213TZ

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency7.500 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency230.0 V @ 60 HZ · 460.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCSA EEV · NEMA_PREMIUM · UR

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage9.500 A @ 460.0 V · 20.000 A @ 208.0 V · 19.000 A @ 230.0 V

Design codeA

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load91.7 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)9.5 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeInverter Ready

KVA codeJ

Lifting lugsStandard Lifting Lugs

Locked bearing indicatorNo Locked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size9 @ 14 AWG

Motor type3738M

Mounting arrangementF1

Number of poles4

Overall length20.03 IN

Power factor80

Product familyGeneral Purpose

Pulley end bearing typeSealed Bearing

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

RoHS statusROHS COMPLIANT

Service factor1.15

Shaft diameter1.375 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorShaft Slinger

Speed (rpm)1770 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568524145

Motor CategoryGrain Dryer Motor (Centrifugal)

Motor Supply Voltage230/460 V

Base RPM1770 rpm

Weight151 lbs

Mounting TypeRigid Base

Product TypeFarm Duty Motors

Nameplate

Catalog numberEGDM3710T

Specification number37N385L864G1

Horsepower (HP)7.5

Voltage (V)230/460

Current (A)19/9.5

Speed (rpm)1770

Frame size213TZ

Frequency (Hz)60

Phase3

Service factor1.15

Code letter (locked rotor kVA)J

NEMA design letterA

Insulation classF

NEMA nominal efficiency (%)91.7

Power factor80

Rating40C AMB-CONT

CC number010A

Drive end bearing6307

Opposite drive end bearing6206

EnclosureTEFC

Nameplate numberNP3126L

Performance

General characteristics· 460 V, 60 Hz, 7.5 hp

Line-to-line resistance at 25 °C (ohms)1.48 Ω

Temperature rise at rated load (°C)64° C

Temperature rise at service factor load (°C)84° C

Start configurationDOL

Breakdown torque69.8 lb-ft

Pull-up torque31.5 lb-ft

Locked-rotor torque41 lb-ft

Starting current (A)70.7 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	5	42	64	75	80	83	84	83
Efficiency %	0	87.1	91.4	92	91.7	90.7	89.6	90.7
Speed rpm	1799	1793	1786	1778	1770	1760	1750	1761
Line amps A	4.32	4.83	6.03	7.64	9.5	11.6	13.9	10.7
Power W	187	1610	3066	4556	6089	7705	9370	7084
Torque lb-ft	0	5.53	11	16.7	22.2	28	33.8	25.7

Documents & CAD

For this product 4

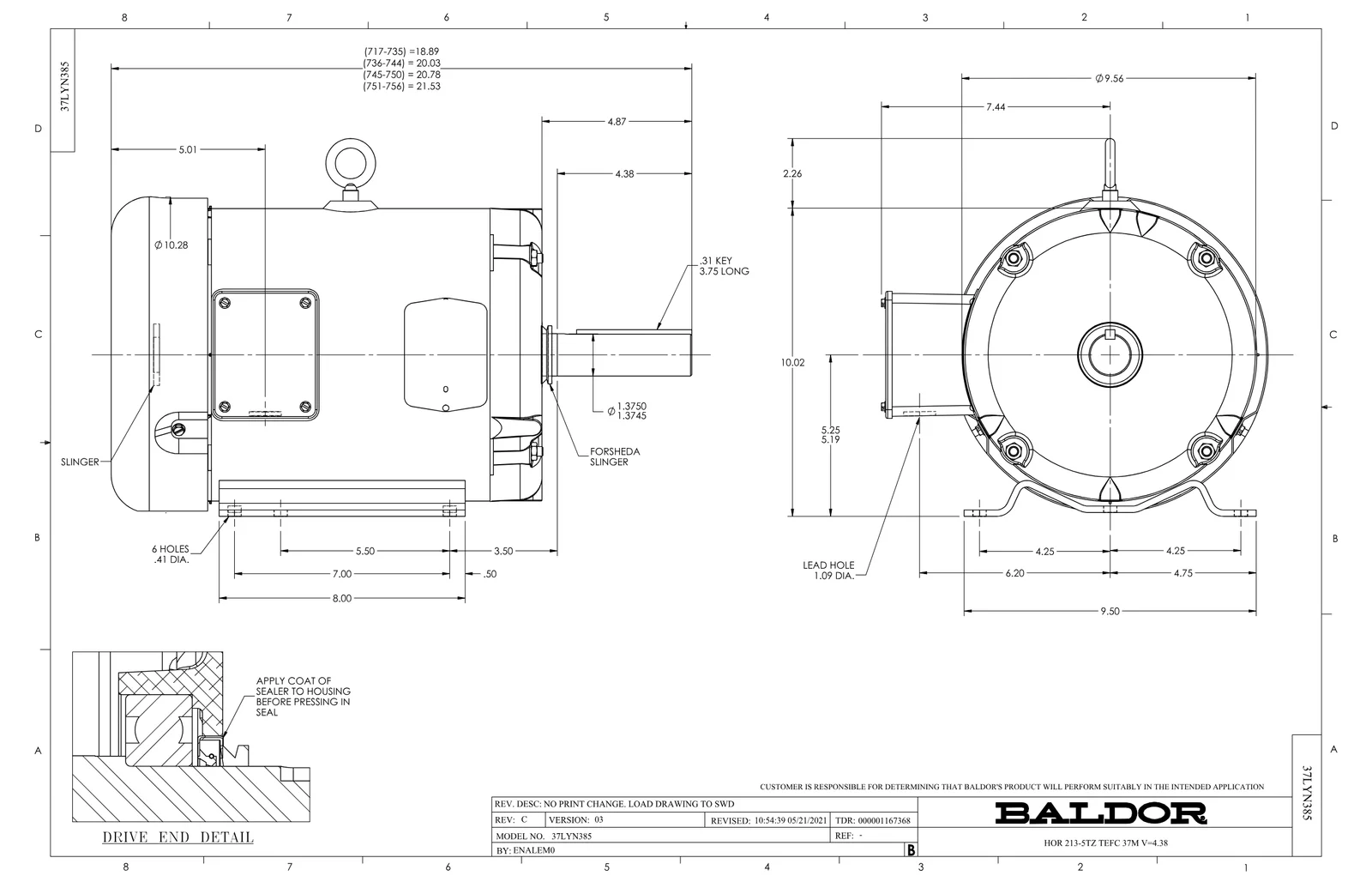

Dimension DrawingDimension SheetPDF·107 KB·English

Wiring DiagramWiring DiagramPDF·41 KB·English

DatasheetDatasheetPDF·592 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 7

The genuine spare parts used for servicing and repairing the Baldor EGDM3710T motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
37FN3002C01	EXFN, PLASTIC, 6.00 OD, 1.155 ID	1 pcs	245 motors
37CB3000SP	CONDUIT BOX, CAST, W/1.089/1.100 CAST LE	1 pcs	6 motors
37GS1000SP	GASKET, CONDUIT BOX STD., .06 THICK LEXI	1 pcs	264 motors
51XW2520A12	.25-20 X .75, TAPTITE II, HEX WSHR SLTD	2 pcs	1,543 motors
37GS1001SP	GASKET, CONDUIT BOX LID, .06 THICK LEXID	1 pcs	329 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
