Baldor EGDM2334T

Farm Duty Motor - 20 hp, 1800 rpm, 3 ph, 230/460 V, 256TZ Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1770 rpm Base, Rigid Base Mount, Continuous Duty

BaldorMFR # EGDM2334TSKU # YLSL4SFXPYPR2CZ

EnclosureTEFC

Frame256TZ

Frame materialCast Iron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency20.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Farm Duty Motor - 20 hp, 1800 rpm, 3 ph, 230/460 V, 256TZ Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1770 rpm Base, Rigid Base Mount, Continuous Duty

Baldor EGDM2334T

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame256TZ

Frame materialCast Iron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency20.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency230.0 V @ 60 HZ · 460.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsUR · NEMA_PREMIUM · CSA EEV

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage24.000 A @ 460.0 V · 48.000 A @ 230.0 V · 52.000 A @ 208.0 V

Design codeA

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load93.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)24.0 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeInverter Ready

KVA codeJ

Lifting lugsStandard Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size9 @ 10 AWG

Motor type0960M

Mounting arrangementF1

Number of poles4

Overall length24.55 IN

Power factor83

Product familyGeneral Purpose

Pulley end bearing typeSealed Bearing

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

Service factor1.15

Shaft diameter1.625 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorShaft Slinger

Speed (rpm)1770 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568522905

Motor CategoryGrain Dryer Motor (Centrifugal)

Motor Supply Voltage230/460 V

Base RPM1770 rpm

Weight323 lbs

Mounting TypeRigid Base

Product TypeFarm Duty Motors

Nameplate

Catalog numberEGDM2334T

Specification number09L721T459G1

Horsepower (HP)20

Voltage (V)230/460

Current (A)48/24

Speed (rpm)1770

Frame size256TZ

Frequency (Hz)60

Phase3

Service factor1.15

Code letter (locked rotor kVA)J

NEMA design letterA

Insulation classF

NEMA nominal efficiency (%)93

Power factor83

Rating40C AMB-CONT

CC number010A

Drive end bearing6309

Opposite drive end bearing6208

EnclosureTEFC

Nameplate numberNP3126L

Performance

General characteristics· 460 V, 60 Hz, 20 hp

Line-to-line resistance at 25 °C (ohms)0.33814 Ω

Temperature rise at rated load (°C)58° C

Temperature rise at service factor load (°C)70° C

Start configurationDOL

Breakdown torque232 lb-ft

Pull-up torque126 lb-ft

Locked-rotor torque141 lb-ft

Starting current (A)198 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	5	45	67	78	83	86	87	85
Efficiency %	0	89.2	93	93.7	93.6	93.1	92.4	93.3
Speed rpm	1798.9	1793.2	1786.4	1779.1	1771.9	1763.7	1755.3	1767
Line amps A	10.4	11.8	15	19.2	24	29.3	34.9	27.2
Power W	415	4199	8031	11931	15926	19995	24229	18367
Torque lb-ft	0	14.71	29.44	44.27	59.27	74.36	89.85	68.3

Documents & CAD

For this product 4

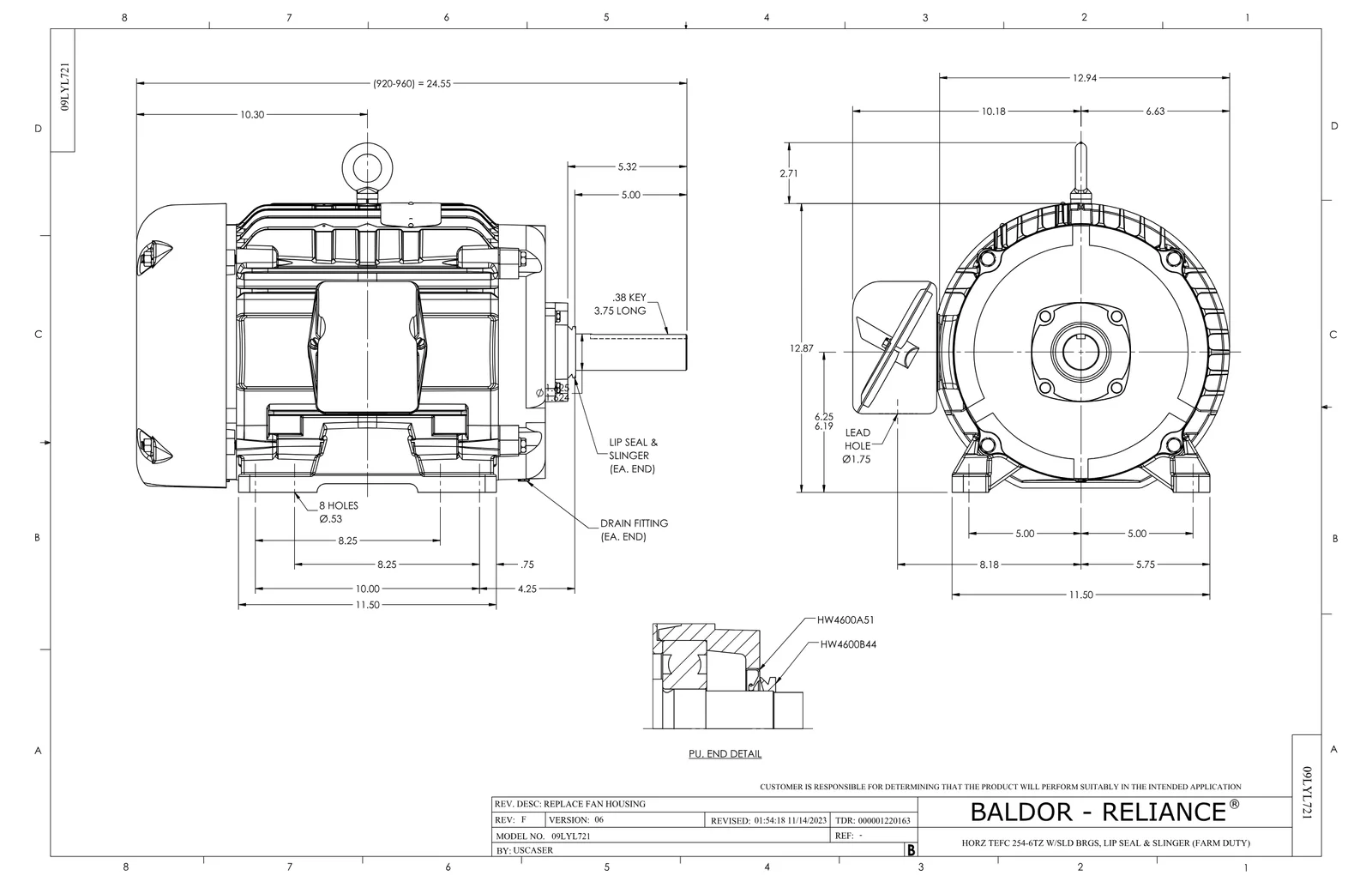

Dimension DrawingDimension SheetPDF·157 KB·English

Wiring DiagramWiring DiagramPDF·37 KB·English

DatasheetDatasheetPDF·640 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 1· shared by this product series

Technical DrawingDrawingPDF·87 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 7

The genuine spare parts used for servicing and repairing the Baldor EGDM2334T motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
09FN3001D01SP	EXTERNAL FAN, PLASTIC (COMES W/SCREW FRO	1 pcs	148 motors
51XW2520A12	.25-20 X .75, TAPTITE II, HEX WSHR SLTD	6 pcs	1,543 motors
HW4600A51	SEAL 1.688 X 2.686 X 0.313 SINGLE LIP-CR	1 pcs	12 motors
09CB3501SP	CONDUIT BOX LID FOR 09CB3001 & 09CB3002	1 pcs	392 motors
09GS1013SP	GS FOR 09CB3501, 12CB1500 & 12CB1503 LID	1 pcs	245 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
