Baldor EFM2535T

General Purpose Motor - 30 hp, 1800 rpm, 3 ph, 230/460 V, 286T Frame, OPSB (Open Slotted Band) Enclosure, 60 Hz, 1775 rpm Base, Foot Mount, Continuous Duty

BaldorMFR # EFM2535TSKU # YLS6K61N53IZG4F

EnclosureODP

Frame286T

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency30.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

General Purpose Motor - 30 hp, 1800 rpm, 3 ph, 230/460 V, 286T Frame, OPSB (Open Slotted Band) Enclosure, 60 Hz, 1775 rpm Base, Foot Mount, Continuous Duty

Baldor EFM2535T

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureODP

Frame286T

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency30.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency230.0 V @ 60 HZ · 460.0 V @ 60 HZ

Agency approvalsNEMA_PREMIUM · CURUSEEV

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage37.000 A @ 460.0 V · 74.000 A @ 230.0 V · 77.000 A @ 208.0 V

Design codeA

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load94.1 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)37.0 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeInverter Ready

KVA codeH

Lifting lugsStandard Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size9 @ 8 AWG

Motor type4060M

Mounting arrangementF2

Number of poles4

Overall length26.06 IN

Power factor80

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenIncluded

Service factor1.15

Shaft diameter1.875 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1775 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568173220

Motor Supply Voltage230/460 V

Base RPM1775 rpm

Mounting TypeFoot

Warranty3 Year Warranty

Type Of BearingBall

IP Rating22/23

Weight372 lbs

ApplicationsPumps, compressors, fans, conveyors, machine tools and other applications requiring three phase F-2 mounted motors.

Additional DetailsCopper windings, ball bearings, heavy-gauge steel frame with base seam-welded.

Harmonization Code8501.52.8040

Motor CategoryGeneral Purpose Motor

Product TypeGeneral Purpose Motors

Nameplate

Catalog numberEFM2535T

EnclosureOPSB

Specification number40E402X339

CC number010A

Frame size286T

Horsepower (HP)30

Insulation classF

Frequency (Hz)60

Speed (rpm)1775

Phase3

NEMA design letterA

Voltage (V)230/460

kVA codeH

Opposite drive end bearing6309

Drive end bearing6311

Current (A)74/37

Rating40C AMB-CONT

GreasePOLYREX EM

NEMA nominal efficiency (%)94.1

Power factor80

Service factor1.15

Nameplate numberNP2138L

Performance

General characteristics· 460 V, 60 Hz, 30 hp

Line-to-line resistance at 25 °C (ohms)0.22043 Ω

Temperature rise at rated load (°C)29° C

Temperature rise at service factor load (°C)35° C

Start configurationDOL

Breakdown torque280 lb-ft

Pull-up torque130 lb-ft

Locked-rotor torque161 lb-ft

Starting current (A)252 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	4	44	67	77	82	85	85	84
Efficiency %	0	90.5	93.8	94.4	94.3	93.9	93.2	94.1
Speed rpm	1798.9	1793.6	1788.1	1782.5	1776.9	1770.4	1763.1	1773
Line amps A	15.4	17.7	22.5	29	36.3	44.3	53	41.1
Power W	539	6264	11977	17844	23767	29853	36074	27419
Torque lb-ft	0	22.2	44.2	66.5	88.8	111	134	102

Documents & CAD

For this product 4

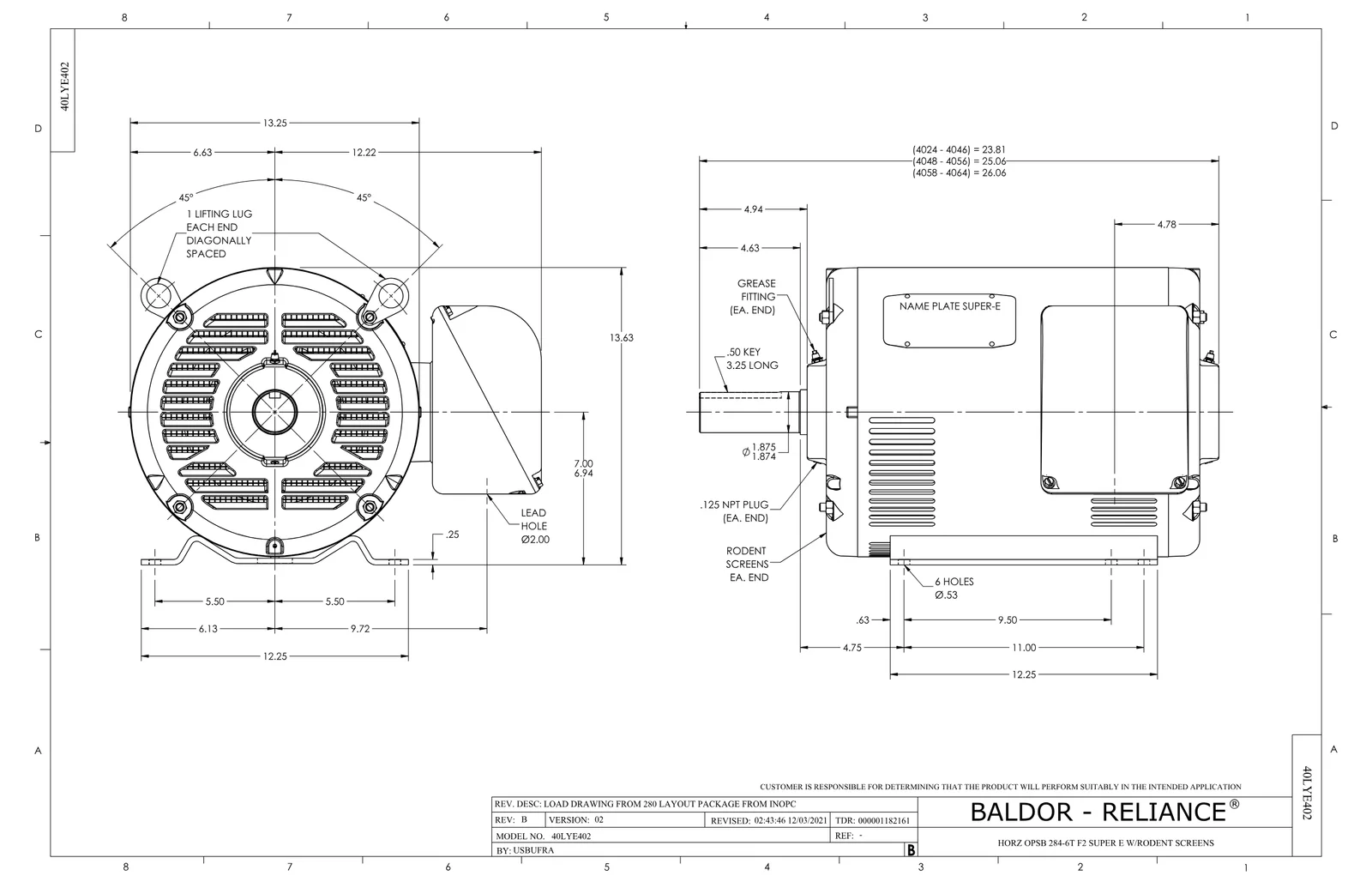

Dimension DrawingDimension SheetPDF·149 KB·English

Wiring DiagramWiring DiagramPDF·41 KB·English

DatasheetDatasheetPDF·645 KB·English

Performance CurvePerformance CurvePDF·61 KB·English

Series documents 1· shared by this product series

Technical DrawingDrawingPDF·87 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 6

The genuine spare parts used for servicing and repairing the Baldor EFM2535T motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
HW1001A31	LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I	6 pcs	1,025 motors
10CB3000SP	KOBX, CAST W/2.00 LEAD HOLE	1 pcs	220 motors
51XW2520A12	.25-20 X .75, TAPTITE II, HEX WSHR SLTD	4 pcs	1,543 motors
MG1050Y01	CELEROL BALDOR GOLD 5 GALLON BUCKET	0.07 gal	1,997 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors

Accessories 1

Genuine accessories that can be used with the Baldor EFM2535T motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
