Baldor EFM2531T

General Purpose Motor - 25 hp, 1500 rpm / 1800 rpm, 3 ph, 230/460//190/380-415 V, 284T Frame, OPSB (Open Slotted Band) Enclosure, 60 Hz, 1475 rpm / 1775 rpm Base, Foot Mount, Continuous Duty

BaldorMFR # EFM2531TSKU # YLSC1FC9NJQBZJR

EnclosureODP

Frame284T

Frame materialSteel

Frequency (Hz)50.00 Hz · 60.00 Hz

Motor letter typeThree Phase

Output at frequency20.000 HP @ 50 HZ · 25.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

General Purpose Motor - 25 hp, 1500 rpm / 1800 rpm, 3 ph, 230/460//190/380-415 V, 284T Frame, OPSB (Open Slotted Band) Enclosure, 60 Hz, 1475 rpm / 1775 rpm Base, Foot Mount, Continuous Duty

Baldor EFM2531T

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureODP

Frame284T

Frame materialSteel

Frequency (Hz)50.00 Hz · 60.00 Hz

Motor letter typeThree Phase

Output at frequency20.000 HP @ 50 HZ · 25.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency380.0 V @ 50 HZ · 230.0 V @ 60 HZ · 190.0 V @ 50 HZ · 460.0 V @ 60 HZ · 415.0 V @ 50 HZ

Agency approvalsWEEE · UR · CSA EEV · CURUSEEV · CE · NEMA_PREMIUM

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage64.000 A @ 208.0 V · 60.000 A @ 230.0 V · 58.000 A @ 190.0 V · 30.000 A @ 460.0 V · 30.000 A @ 415.0 V · 29.000 A @ 380.0 V

Design codeA

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load93.6 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)29.0 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeInverter Ready

KVA codeG

Lifting lugsStandard Lifting Lugs

Locked bearing indicatorNo Locked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size9 @ 10 AWG

Motor type4050M

Mounting arrangementF2

Number of poles4

Overall length25.06 IN

Power factor82

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

Service factor1.15

Shaft diameter1.875 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1475 rpm · 1775 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568173237

Motor Supply Voltage230/460//190/380-415 V

Base RPM1475 rpm / 1775 rpm

Mounting TypeFoot

Warranty3 Year Warranty

Type Of BearingBall

IP Rating22/23

Weight332 lbs

ApplicationsPumps, compressors, fans, conveyors, machine tools and other applications requiring three phase F-2 mounted motors.

Additional DetailsCopper windings, ball bearings, heavy-gauge steel frame with base seam-welded.

Harmonization Code8501.52.8040

Motor CategoryGeneral Purpose Motor

Product TypeGeneral Purpose Motors

Nameplate

Catalog numberEFM2531T

Specification number40E208X806

Ingress protection (IP)22

Horsepower (HP)25HP/18.5KW//20HP/15KW

Voltage (V)230/460//190/380-415

Current (A)60/30//58/29-30

Speed (1/min)1775//1475

Frame size284T

Frequency (Hz)60//50

Phase3

Service factor1.15

Code letter (locked rotor kVA)G

NEMA design letterA

Insulation classF

NEMA nominal efficiency (%)93.6//92.1

Power factor82

Rating40C AMB-CONT

Weight313

CC number010A

EnclosureOPSB

Drive end bearing6311

Opposite drive end bearing6309

Nameplate numberNP4295L

Performance

General characteristics· 460 V, 60 Hz, 25 hp

Line-to-line resistance at 25 °C (ohms)0.35407 Ω

Temperature rise at rated load (°C)28° C

Temperature rise at service factor load (°C)34° C

Start configurationDOL

Breakdown torque232 lb-ft

Pull-up torque116 lb-ft

Locked-rotor torque133 lb-ft

Starting current (A)192 A

Line-to-line resistance at 25 °C (ohms)0.335 Ω

Temperature rise at rated load (°C)27° C

Temperature rise at service factor load (°C)32° C

Start configurationDOL

Breakdown torque267 lb-ft

Pull-up torque144 lb-ft

Locked-rotor torque165 lb-ft

Starting current (A)202 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	5	45	67	78	82	85	85	84
Efficiency %	0	89.4	93.1	93.8	93.6	93	92.1	93.2
Speed rpm	1799	1794.8	1789.5	1783.7	1777.6	1771	1763.2	1774
Line amps A	12.6	14.5	18.6	24.1	30.3	37.2	44.6	34.4
Power W	496	5226	10015	14919	19910	25061	30337	23001
Torque lb-ft	0	18.34	36.69	55.24	73.81	92.68	111.7	85.1

Documents & CAD

For this product 4

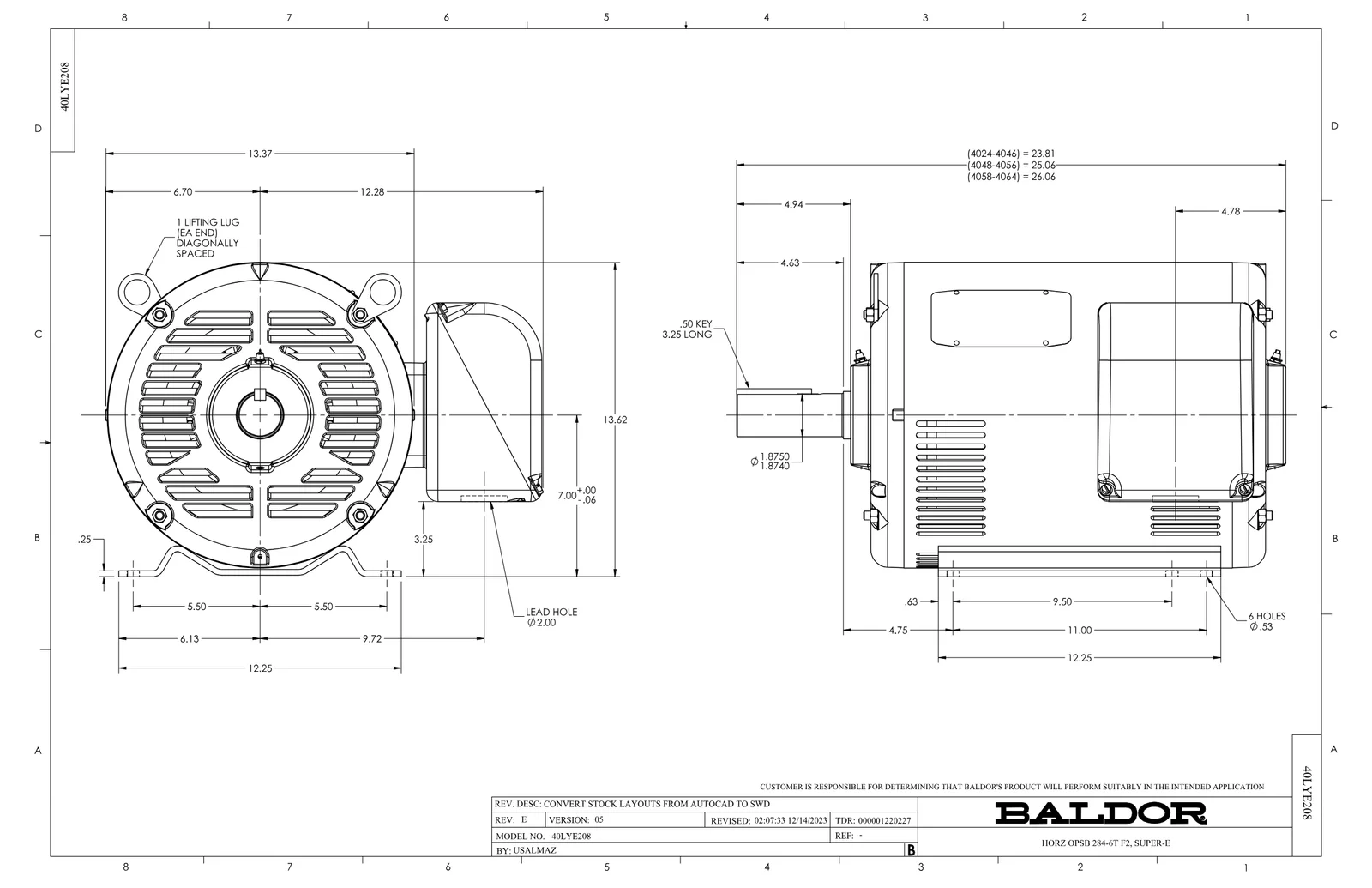

Dimension DrawingDimension SheetPDF·127 KB·English

Wiring DiagramWiring DiagramPDF·41 KB·English

DatasheetDatasheetPDF·705 KB·English

Performance CurvePerformance CurvePDF·61 KB·English

Series documents 1· shared by this product series

Technical DrawingDrawingPDF·87 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 6

The genuine spare parts used for servicing and repairing the Baldor EFM2531T motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
HW1001A31	LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I	6 pcs	1,025 motors
10CB3000SP	KOBX, CAST W/2.00 LEAD HOLE	1 pcs	220 motors
51XW2520A12	.25-20 X .75, TAPTITE II, HEX WSHR SLTD	4 pcs	1,543 motors
MG1050Y01	CELEROL BALDOR GOLD 5 GALLON BUCKET	0.07 gal	1,997 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
