Baldor EFM2515T-8

General Purpose Motor - 20 hp, 1800 rpm, 3 ph, 200 V, 256T Frame, OPSB (Open Slotted Band) Enclosure, 60 Hz, 1765 rpm Base, Foot Mount, Continuous Duty

BaldorMFR # EFM2515T-8SKU # YLS408I05PZ8CWY

EnclosureODP

Frame256T

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency20.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

General Purpose Motor - 20 hp, 1800 rpm, 3 ph, 200 V, 256T Frame, OPSB (Open Slotted Band) Enclosure, 60 Hz, 1765 rpm Base, Foot Mount, Continuous Duty

Baldor EFM2515T-8

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureODP

Frame256T

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency20.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency200.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsNEMA_PREMIUM · CURUSEEV

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage55.000 A @ 200.0 V

Design codeA

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load93.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)55.0 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeInverter Ready

IP ratingNONE

KVA codeG

Lifting lugsStandard Lifting Lugs

Locked bearing indicatorNo Locked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size6 @ 8 AWG

Motor type3948M

Mounting arrangementF2

Number of poles4

Overall length23.19 IN

Power factor85

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

Service factor1.15

Shaft diameter1.625 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1765 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodPart Winding

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568220672

Additional Details1.15 Service Factor, positively locked drive end bearing on 254T and larger, ball bearings, dynamically balanced rotors.

ApplicationsPumps, fans, compressors, blowers, machine tools, conveyors and many other applications requiring 200 volt power.

Base RPM1765 rpm

Harmonization Code8501.52.4000

Motor CategoryGeneral Purpose Motor

Motor Supply Voltage200 V

Mounting TypeFoot

Weight237 lbs

Product TypeGeneral Purpose Motors

Nameplate

Catalog numberEFM2515T-8

Specification number39K070X981G1

Horsepower (HP)20

Voltage (V)200

Current (A)55

Speed (rpm)1765

Frame size256T

Frequency (Hz)60

Phase3

Service factor1.15

Code letter (locked rotor kVA)G

NEMA design letterA

Insulation classF

NEMA nominal efficiency (%)93

Power factor85

Rating40C AMB-CONT

CC number010A

Drive end bearing6309

Opposite drive end bearing6208

EnclosureOPSB

Nameplate numberNP1259L

Performance

General characteristics· 200 V, 60 Hz, 20 hp

Line-to-line resistance at 25 °C (ohms)0.0886 Ω

Temperature rise at rated load (°C)37° C

Temperature rise at service factor load (°C)46° C

Start configurationDOL

Breakdown torque182 lb-ft

Pull-up torque76.1 lb-ft

Locked-rotor torque109 lb-ft

Starting current (A)350 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	5	51	73	82	85	87	87	86
Efficiency %	0	90.5	93.3	93.5	93.1	92.1	90.8	92.5
Speed rpm	1799	1792	1785	1776	1767	1757	1745	1761
Line amps A	19.6	23.5	31.7	42.4	54.5	67.5	81.9	62.3
Power W	351	4138	8051	12016	16127	20304	24653	18633
Torque lb-ft	0	14.7	29.6	44.5	59.8	74.9	90.3	68.9

Documents & CAD

For this product 4

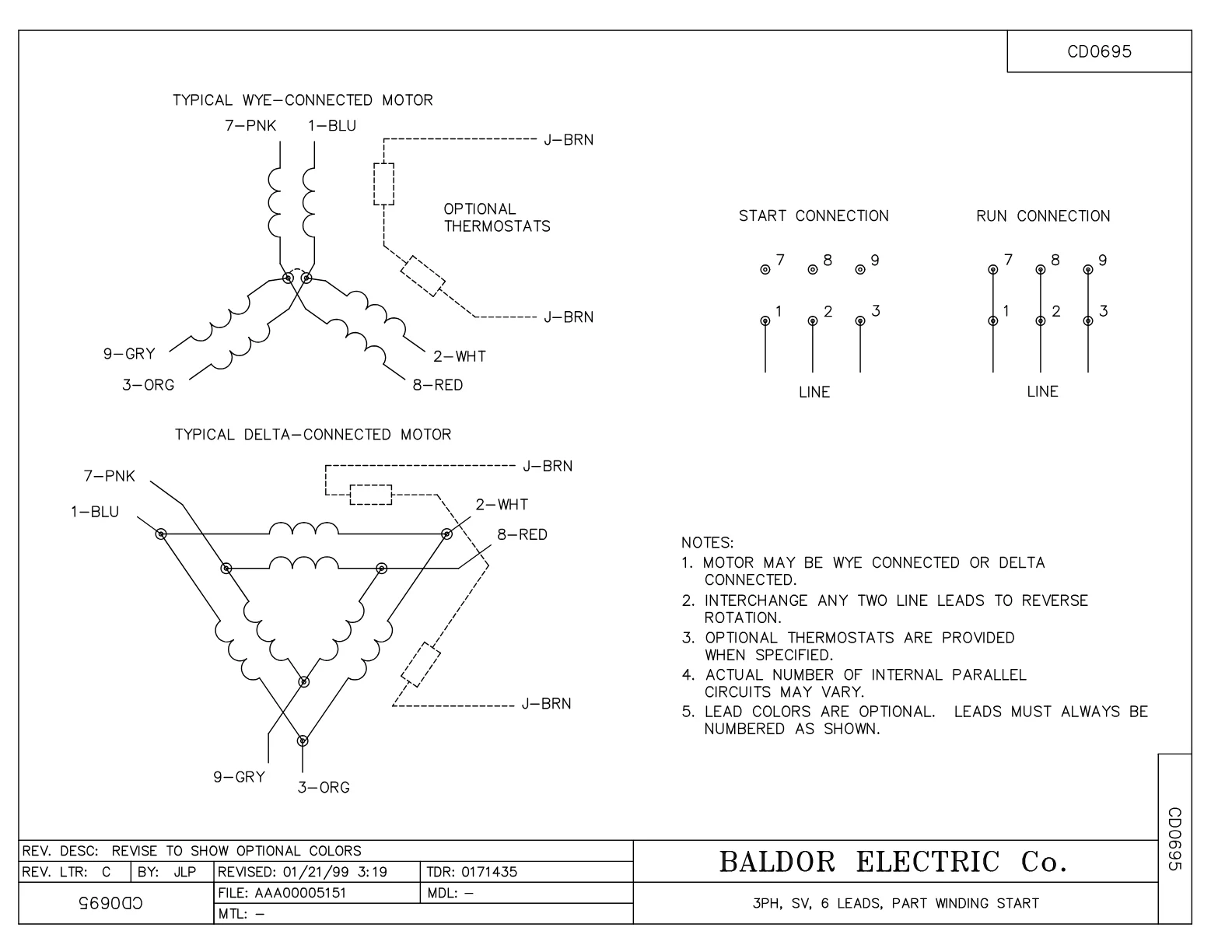

Wiring DiagramWiring DiagramPDF·51 KB·English

Wiring DiagramWiring DiagramPDF·38 KB·English

DatasheetDatasheetPDF·666 KB·English

Performance CurvePerformance CurvePDF·61 KB·English

Series documents 2· shared by this product series

Dimension DrawingDimension SheetPDF·122 KB·English

Technical DrawingDrawingPDF·87 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 6

The genuine spare parts used for servicing and repairing the Baldor EFM2515T-8 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
51XW2520A12	.25-20 X .75, TAPTITE II, HEX WSHR SLTD	4 pcs	1,543 motors
39EP3200A01SP	FR/PU ENDPLATE, MACH	1 pcs	100 motors
09CB3501SP	CONDUIT BOX LID FOR 09CB3001 & 09CB3002	1 pcs	392 motors
MG1050Y01	CELEROL BALDOR GOLD 5 GALLON BUCKET	0.05 gal	1,997 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
