How can I get a price quote for Baldor ECTM4314T?

You can request a fast quote for Baldor ECTM4314T from Yılsa Engineering. Reference part number YLS43B4D7HEXYMX. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor ECTM4314T in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor ECTM4314T genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor ECTM4314T?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor ECTM4314T

Baldor-Reliance ECTM4314T is a 60 HP, 1780 rpm, 3-phase 230/460 V 60 Hz, 364T frame, TEAO enclosed three-phase induction motor.

BaldorMFR # ECTM4314TSKU # YLS43B4D7HEXYMX

EnclosureTEAO

Frame364T

Frame materialCast Iron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency60.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance ECTM4314T is a 60 HP, 1780 rpm, 3-phase 230/460 V 60 Hz, 364T frame, TEAO enclosed three-phase induction motor.

Baldor ECTM4314T

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEAO

Frame364T

Frame materialCast Iron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency60.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency230.0 V @ 60 HZ · 460.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUSEEV · CCSAUSEEV

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

Current at voltage140.000 A @ 230.0 V · 152.000 A @ 208.0 V · 70.000 A @ 460.0 V

Design codeB

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load95.0 %

Feedback deviceNO FEEDBACK

High voltage full load current (A)70.0 a

Heater indicatorNo Heater

Insulation classF

Inverter codeInverter Ready

KVA codeG

Lifting lugsStandard Lifting Lugs

Motor lead quantity/wire size3 @ 4 AWG

Motor typeA3658M

Mounting arrangementF1

Number of poles4

Overall length29.70 IN

Power factor84

Pulley end bearing typeBall

Pulley face codeStandard

Service factor1.15

Shaft diameter2.374 IN

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1780 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

UPC781568408469

Nameplate

Catalog numberECTM4314T

Specification numberP36G3418

Horsepower (HP)60HP

Current (A)140/70

Voltage (V)230/460

NEMA design letterB

Frame size364T

Speed (rpm)1780

Frequency (Hz)60

Ambient temperature (°C)40

Service factor1.15

Drive end bearing65BC03JGG30A

Phase3

DutyCONT

Insulation classF

Opposite drive end bearing65BC03JGG30A

TypeP

EnclosureTEAO

Code letter (locked rotor kVA)G

Drive end bearing data6313

Power factor84

NEMA nominal efficiency (%)95

Opposite drive end bearing data6313

Maximum correction (kVAR)15.00

Guaranteed efficiency (%)94.1

Efficiency at 3/4 load (%)95

Motor weight835

Nameplate numberNP4486

Documents & CAD

For this product 3

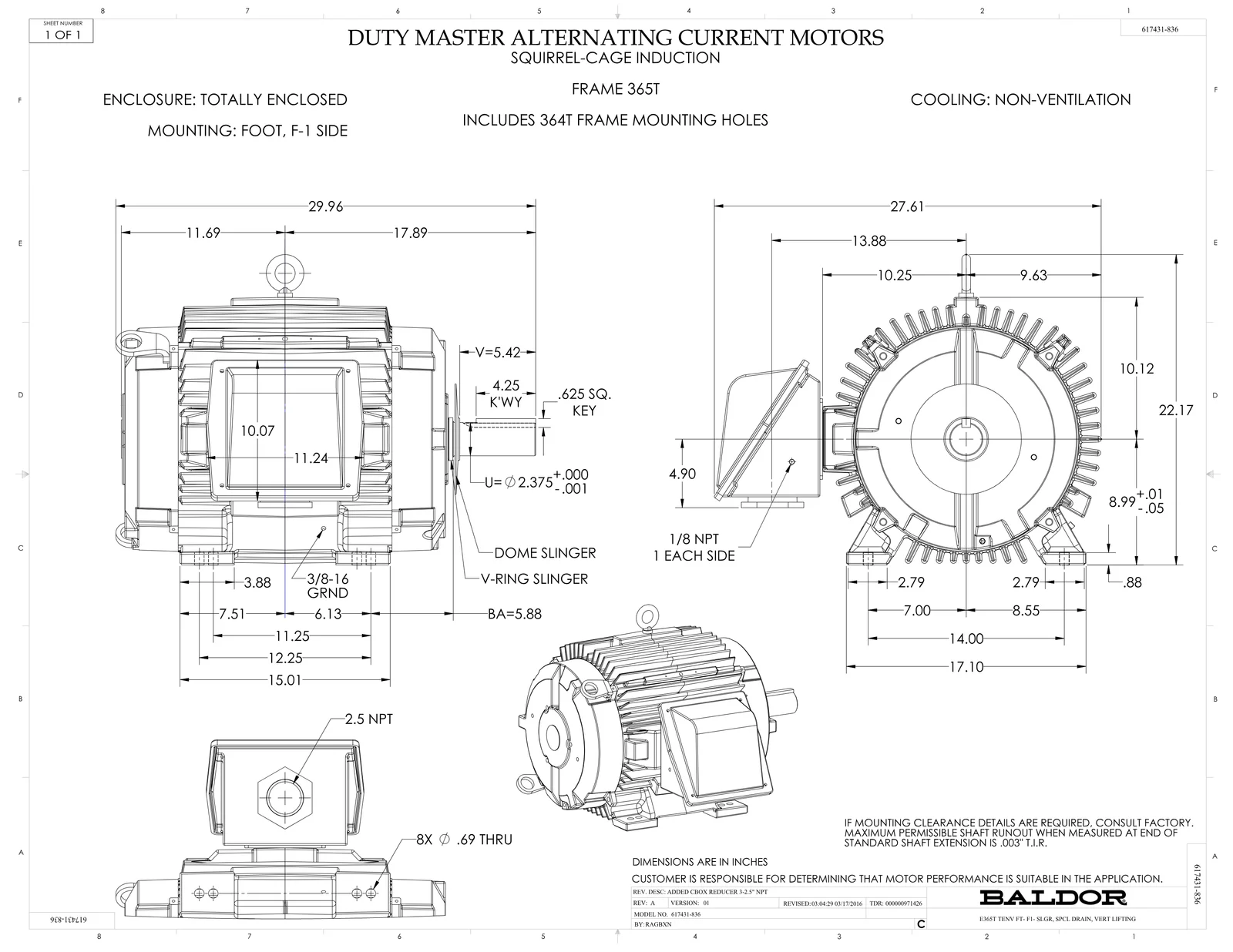

Dimension DrawingDimension SheetPDF·266 KB·English

Wiring DiagramWiring DiagramPDF·37 KB·English

DatasheetDatasheetPDF·808 KB·English

Series documents 3· shared by this product series

Dimension DrawingDimension SheetPDF·143 KB·English

Technical DrawingDrawingPDF·862 KB·English

Technical DrawingDrawingPDF·87 KB·English

Spare Parts 3

The genuine spare parts used for servicing and repairing the Baldor ECTM4314T motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.
