Baldor ECTM3581T-5G

ECTM3581T-5G

BaldorMFR # ECTM3581T-5GSKU # YLSREKN07S7OCYP

EnclosureTEFC

Frame143T

Frame materialIron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency1.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor ECTM3581T-5G (ECTM3581T-5G) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Baldor ECTM3581T-5G — price, stock availability and technical specifications.

Baldor ECTM3581T-5G

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame143T

Frame materialIron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency1.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency575.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsNEMA PREMIUM · NEMA_PREMIUM · CURUSEEV · CSA EEV

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage1.200 A @ 575.0 V

Design codeB

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load85.5 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)1.2 a

Front shaft indicatorDrilled And Tapped Hole

Heater indicatorHeater Included, 115 V

Insulation classF

Inverter codeInverter Ready

KVA codeM

Lifting lugsStandard Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead terminationFlying Leads

Motor lead quantity/wire size3 @ 18 AWG

Motor type0520M

Mounting arrangementF1

Number of poles4

Overall length12.82 IN

Power factor72

Product familyChemical Processing (Not DC)

Pulley end bearing typeSealed Bearing

Pulley face codeStandard

Pulley shaft indicatorTapped & Key

Rodent screenNone

Service factor1.15

Shaft diameter0.875 IN

Shaft ground indicatorShaft Grounding

Shaft rotationReversible

Shaft slinger indicatorShaft Slinger

Speed (rpm)1770 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568989449

Product TypeAir Handling (HVAC) Motors

Nameplate

Catalog numberECTM3581T-5G

Specification number05G440X567G1

Horsepower (HP)1

Voltage (V)575

Current (A)1.2

Speed (rpm)1770

Frame size143T

Frequency (Hz)60

Phase3

Service factor1.15

Code letter (locked rotor kVA)M

NEMA design letterB

Insulation classF

NEMA nominal efficiency (%)85.5

Power factor72

Rating40C AMB-CONT

Drive end bearing6205

Opposite drive end bearing6203

EnclosureTEFC

Nameplate numberNP1260

Performance

General characteristics· 575 V, 60 Hz, 1 hp

Line-to-line resistance at 25 °C (ohms)32.1 Ω

Temperature rise at rated load (°C)31° C

Temperature rise at service factor load (°C)37° C

Start configurationDOL

Breakdown torque11.89 lb-ft

Pull-up torque7.42 lb-ft

Locked-rotor torque9.63 lb-ft

Starting current (A)10.72 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	9	33	51	64	72	78	82	76
Efficiency %	0	72.5	82.2	85.1	85.4	85.1	84	85.2
Speed rpm	1799	1792	1784	1776	1768	1758	1748	1762
Line amps A	0.768	0.803	0.9	1.04	1.21	1.41	1.63	1.33
Power W	66.57	260	456	661	870	1097	1332	1006
Torque lb-ft	0	0.741	1.48	2.23	2.96	3.74	4.51	3.43

Documents & CAD

For this product 3

Wiring DiagramWiring DiagramPDF·38 KB·English

DatasheetDatasheetPDF·721 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 2· shared by this product series

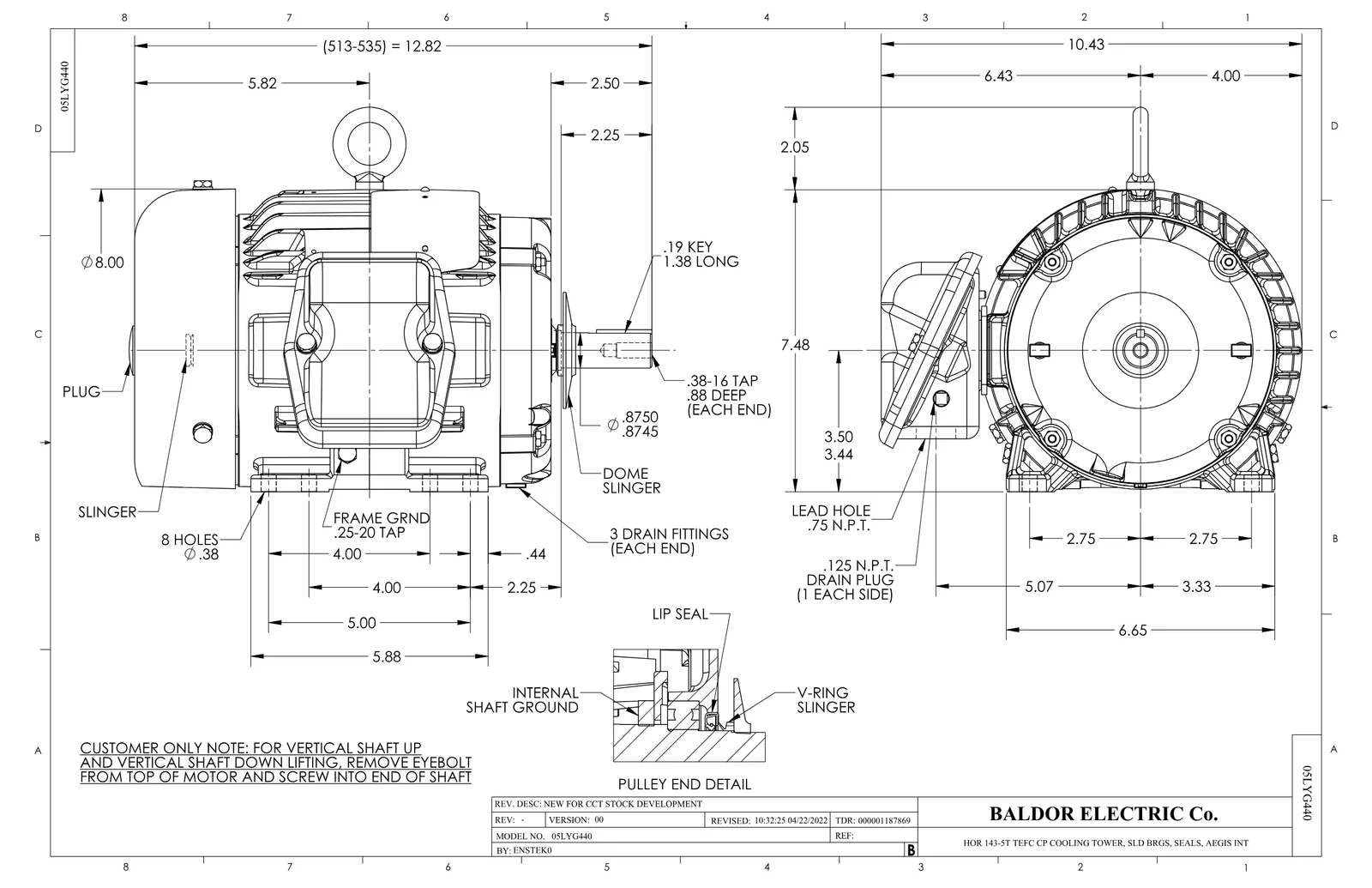

Dimension DrawingDimension SheetPDF·237 KB·English

Technical DrawingDrawingPDF·87 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 6

The genuine spare parts used for servicing and repairing the Baldor ECTM3581T-5G motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
34FN3002B01	EXTERNAL FAN, PLASTIC, .637/.639 HUB W/	1 pcs	623 motors
51XW2520A12	.25-20 X .75, TAPTITE II, HEX WSHR SLTD	2 pcs	1,543 motors
HW4600B39SP	V-RING SLINGER 0.550 X 0.790 X .18 VITON	1 pcs	142 motors
HW4600B32SP	V-RING SLINGER 1.000 X 1.540 X .24 VITON	1 pcs	262 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
