Baldor ECS101M0K0P8DC4

ECS101M0K0P8DC4

BaldorMFR # ECS101M0K0P8DC4SKU # YLSFNNAE6VMSVLM

EnclosureTEFC

FrameD90C

Frame materialSteel

Frequency (Hz)50.00 Hz

Motor letter typeBrushless Wound Field PM Rotor

Output at frequency.750 KW @ 50 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor ECS101M0K0P8DC4 (ECS101M0K0P8DC4) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Baldor ECS101M0K0P8DC4 — price, stock availability and technical specifications.

Baldor ECS101M0K0P8DC4

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

FrameD90C

Frame materialSteel

Frequency (Hz)50.00 Hz

Motor letter typeBrushless Wound Field PM Rotor

Output at frequency.750 KW @ 50 HZ

Phase3

Synchronous speed at frequency (rpm)1500 RPM @ 50 HZ

Voltage at frequency190.0 V @ 50 HZ · 380.0 V @ 50 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCE · CULUS · UKCA · WEEE

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorNo Mounting

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Constant torque speed range5

Current at voltage2.380 A @ 190.0 V · 1.190 A @ 380.0 V

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load88.2 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)1.2 a

Frame prefixD

Heater indicatorNo Heater

Insulation classF

Inverter code03

Lifting lugsNo Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead terminationTerminal Block

Motor lead quantity/wire size9 @ 16 AWG

Motor type3516B

Mounting arrangementB14

Number of poles4

Overall length12.75 IN

Power factor97

Product familyGeneral Purpose

Pulley face codeC-Face

Rodent screenNone

RoHS statusROHS COMPLIANT

Service factor1.00

Shaft diameter0.945 IN

Shaft ground indicatorShaft Grounding

Shaft rotationReversible

Speed (rpm)1500 rpm

Speed codeSingle Speed

Motor standardsIEC

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568993736

Product TypeGeneral Purpose Motors

Nameplate

Catalog numberECS101M0K0P8DC4

Specification number35EE433G982

Frame sizeD90C

Ingress protection (IP)55

Weight35

Power (kW).75

Frequency (Hz)50

Phase3

Duty (IPM)CONT

Insulation classF

Ambient temperature (°C)40

Efficiency classIE5

Efficiency (%)88.2

Power factor (cos φ)97

Voltage (V)190/380

Full load current (A)2.38/1.19

Speed (1/min)1500

Maximum speed (1/min)4000

Back EMF (V)112/223

Stator resistance (ohms)20.8

d-axis inductance (mH)29.3/117

q-axis inductance (mH)91.8/367

CP =50

TO100

Constant torque5

TO50

Variable torque5

TO50

Matched inverterACS380-04XX-03A7-1 / 01A8-4

Drive end bearing6206

Opposite drive end bearing6203

Nameplate numberNP3968B01A01

Documents & CAD

For this product 2

Wiring DiagramWiring DiagramPDF·32 KB·English

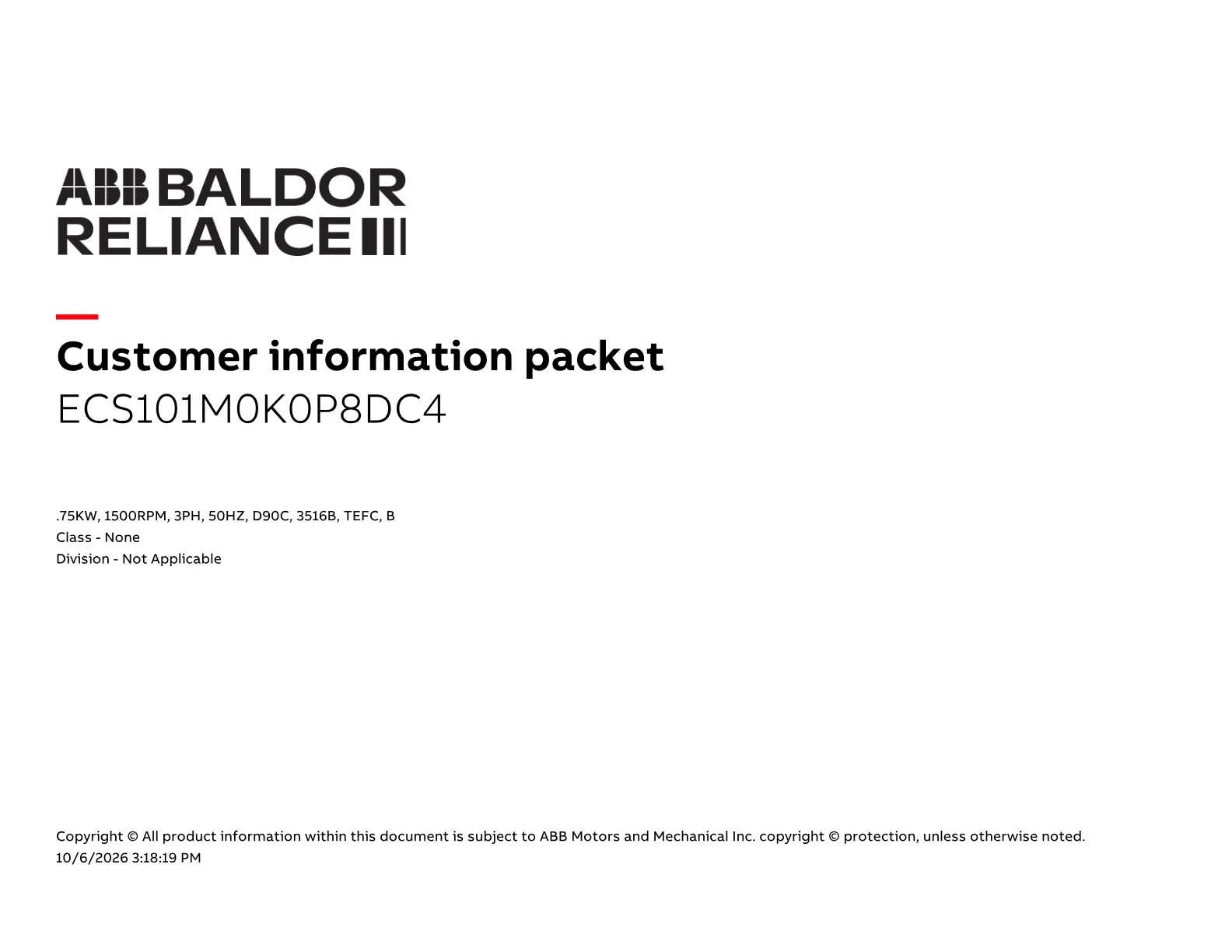

DatasheetDatasheetPDF·674 KB·English

Series documents 2· shared by this product series

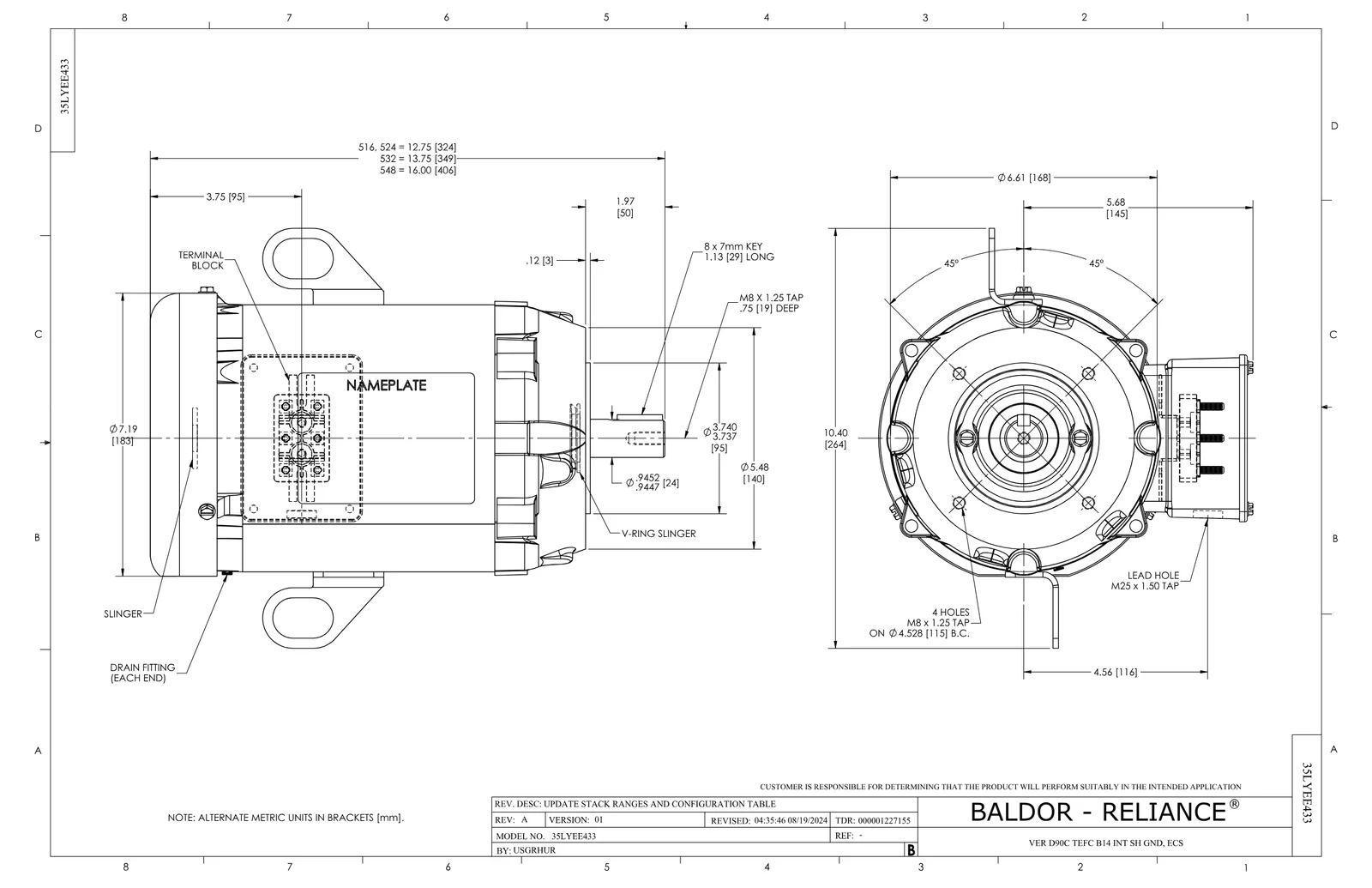

Dimension DrawingDimension SheetPDF·135 KB·English

Performance CurvePerformance CurvePDF·149 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 5

The genuine spare parts used for servicing and repairing the Baldor ECS101M0K0P8DC4 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
HA1005A05SP	SLINGER, OD 1.50, ID .659, 203 BRG	1 pcs	112 motors
HW4600B36SP	V-RING SLINGER 1.188 X 1.380 X .24 VITON	1 pcs	252 motors
35FN3002A05SP	EXFN, PLASTIC, 6.376 OD, .638 ID	1 pcs	436 motors
MN451	EC Titanium Quick Start 06/22	1 pcs	224 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
