How can I get a price quote for Baldor ECS101M0H7EB4?

You can request a fast quote for Baldor ECS101M0H7EB4 from Yılsa Engineering. Reference part number YLSOLJ67OX873B2. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor ECS101M0H7EB4 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor ECS101M0H7EB4 genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor ECS101M0H7EB4?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor ECS101M0H7EB4

ECS101M0H7EB4

BaldorMFR # ECS101M0H7EB4SKU # YLSOLJ67OX873B2

EnclosureTEFC

Frame184TC

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeBrushless Wound Field PM Rotor

Output at frequency7.500 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor ECS101M0H7EB4 (ECS101M0H7EB4) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Baldor ECS101M0H7EB4 — price, stock availability and technical specifications.

Baldor ECS101M0H7EB4

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame184TC

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeBrushless Wound Field PM Rotor

Output at frequency7.500 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency230.0 V @ 60 HZ · 460.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsWEEE · CULUS

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Constant torque speed range6

Current at voltage17.500 A @ 230.0 V · 8.800 A @ 460.0 V

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load94.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)8.8 a

Heater indicatorNo Heater

Insulation classF

Inverter codeInverter Duty

IP ratingNONE

Lifting lugsStandard Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead terminationFlying Leads

Motor type3648B

Mounting arrangementF1

Number of poles4

Overall length18.04 IN

Power factor94

Product familyGeneral Purpose

Pulley face codeC-Face

Rodent screenNone

RoHS statusROHS COMPLIANT

Service factor1.50

Shaft diameter1.125 IN

Shaft ground indicatorShaft Grounding

Shaft rotationReversible

Speed (rpm)1800 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568958452

Product TypeGeneral Purpose Motors

Documents & CAD

For this product 2

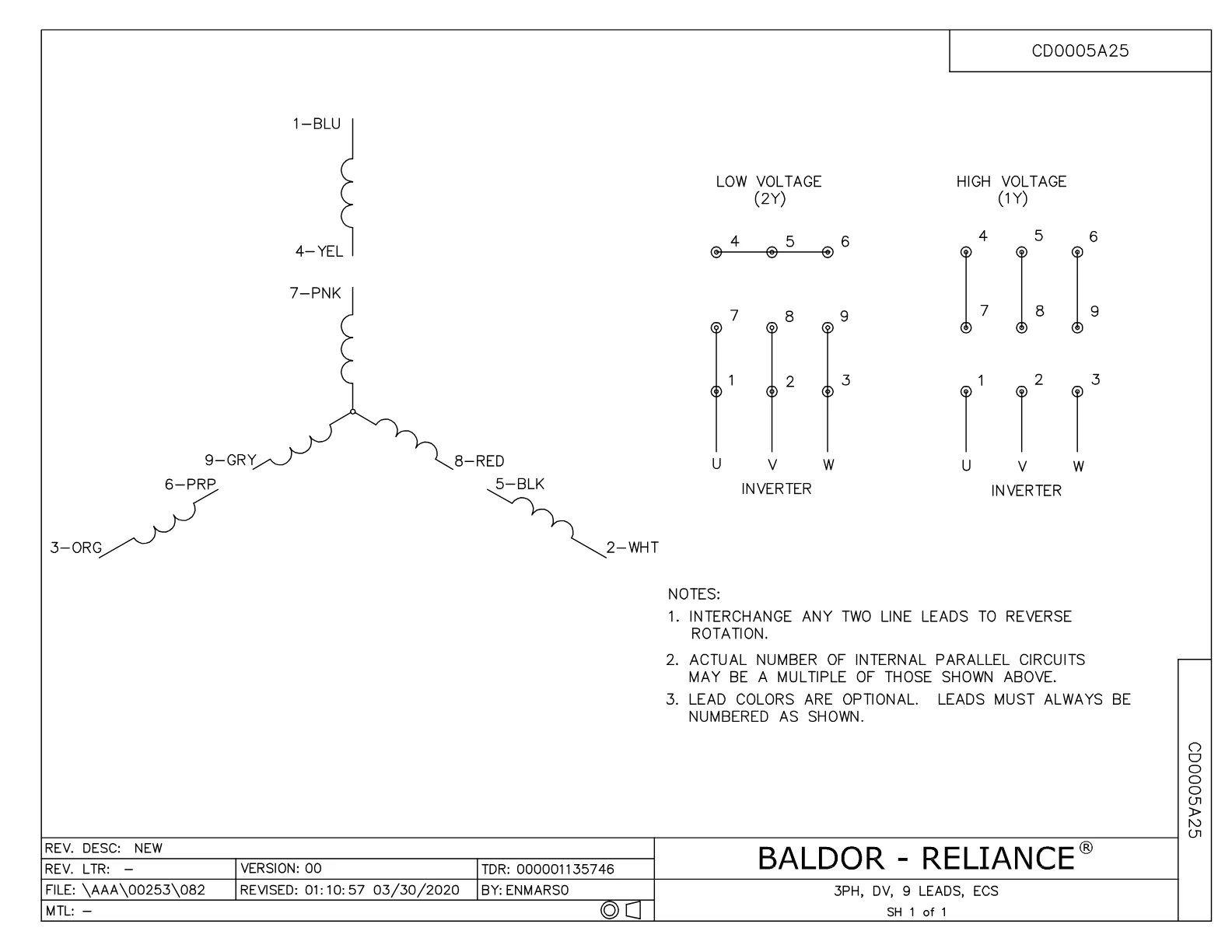

Wiring DiagramWiring DiagramPDF·32 KB·English

DatasheetDatasheetPDF·612 KB·English

Series documents 2· shared by this product series

Dimension DrawingDimension SheetPDF·85 KB·English

Performance CurvePerformance CurvePDF·149 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 6

The genuine spare parts used for servicing and repairing the Baldor ECS101M0H7EB4 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
36FN3000A01SP	EXFN, PLASTIC, 7.00 OD, .912 ID	1 pcs	167 motors
HW4600B36SP	V-RING SLINGER 1.188 X 1.380 X .24 VITON	1 pcs	252 motors
36GS1000SP	GASKET-CONDUIT BOX, .06 THICK #SV-330 LE	1 pcs	831 motors
37GS1001SP	GASKET, CONDUIT BOX LID, .06 THICK LEXID	1 pcs	329 motors
MN451	EC Titanium Quick Start 06/22	1 pcs	224 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
