Baldor ECS100A4H2DC4

ECS100A4H2DC4

BaldorMFR # ECS100A4H2DC4SKU # YLS200IGJLXMKYM

EnclosureTEFC

Frame143TC

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeBrushless Wound Field PM Rotor

Output at frequency2.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor ECS100A4H2DC4 (ECS100A4H2DC4) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Baldor ECS100A4H2DC4 — price, stock availability and technical specifications.

Baldor ECS100A4H2DC4

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame143TC

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeBrushless Wound Field PM Rotor

Output at frequency2.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency460.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsBLUETOOTH · CULUS · WEEE

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorNo Mounting

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Constant torque speed range6

Current at voltage2.200 A @ 460.0 V

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load91.9 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)2.2 a

Heater indicatorNo Heater

Insulation classF

Inverter code03

IP ratingNONE

Lifting lugsNo Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead terminationFlying Leads

Motor lead quantity/wire size3 @ 16 AWG

Motor type3524B

Mounting arrangementF1

Number of poles4

Overall length16.72 IN

Power factor93

Product familyGeneral Purpose

Pulley face codeC-Face

Rodent screenNone

Service factor1.00

Shaft diameter0.875 IN

Shaft ground indicatorShaft Grounding

Shaft rotationReversible

Speed (rpm)1800 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568960004

Nameplate

Catalog numberECS100A4H2DC4

Specification number35E5253G963

Frame size143TC

EnclosureTEFC

Ingress protection (IP)54

Horsepower (HP)2

Nominal efficiency (%)91.9

Power factor93

Service factor1

Voltage (V)460

Full load current (A)2.2

Speed (rpm)1800

Maximum speed (rpm)4000

Frequency (Hz)60

Phase3

Insulation classF

Back EMF (V)296

Stator resistance (ohms)11.7

d-axis inductance (mH)78.9

q-axis inductance (mH)406

Constant horsepower60

TO133

Constant torque6

TO60

Variable torque6

TO60

Matched inverterECI4A4P1

Drive end bearing6205

Opposite drive end bearing6203

Nameplate numberNP3968A01A01

Documents & CAD

For this product 3

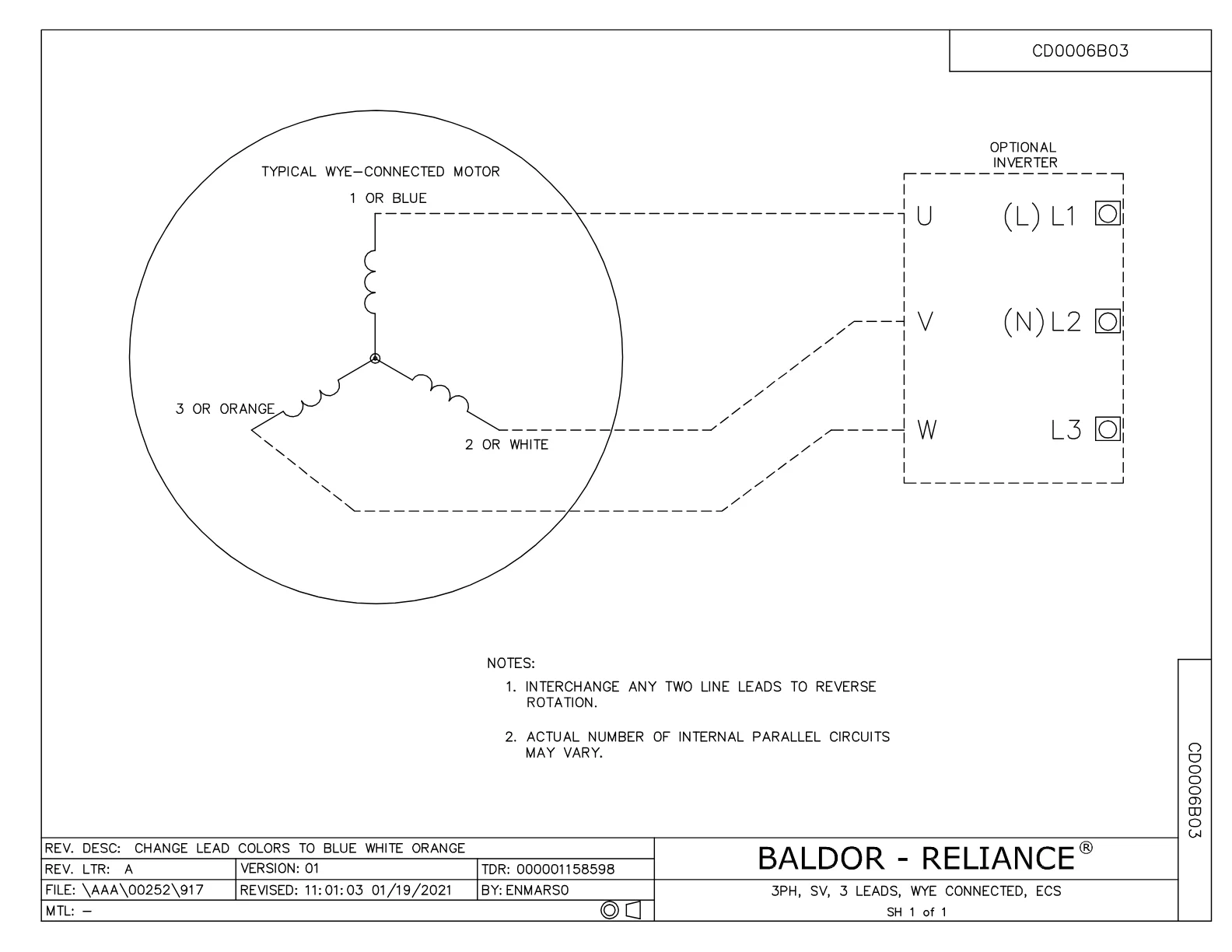

Wiring DiagramWiring DiagramPDF·28 KB·English

DatasheetDatasheetPDF·657 KB·English

Performance CurvePerformance CurvePDF·149 KB·English

Series documents 1· shared by this product series

Dimension DrawingDimension SheetPDF·118 KB·English

CAD Files 7

3D Model

2D Drawing

Spare Parts 3

The genuine spare parts used for servicing and repairing the Baldor ECS100A4H2DC4 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
HW4600B32SP	V-RING SLINGER 1.000 X 1.540 X .24 VITON	1 pcs	262 motors
34FN3002A01SP	EXTERNAL FAN, PLASTIC, .637/.639 HUB W/	1 pcs	410 motors
MN451	EC Titanium Quick Start 06/22	1 pcs	224 motors
