Baldor ECR93504T-4

Baldor-Reliance ECR93504T-4 is a 350 HP, 1785 rpm, 3-phase 460 V, 60 Hz, 449T frame, TEFC enclosed crusher/chipper three-phase AC electric motor.

BaldorMFR # ECR93504T-4SKU # YLSBTJQCHFK8TTM

EnclosureTEFC

Frame449T

Frame materialCast Iron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency350.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance ECR93504T-4 is a 350 HP, 1785 rpm, 3-phase 460 V, 60 Hz, 449T frame, TEFC enclosed crusher/chipper three-phase AC electric motor.

Baldor ECR93504T-4

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame449T

Frame materialCast Iron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency350.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency460.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUSEEV

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

Constant torque speed range30-60

Current at voltage390.000 A @ 460.0 V

Design codeA

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load96.2 %

Feedback deviceNO FEEDBACK

High voltage full load current (A)390.0 a

Heater indicatorNo Heater

Insulation classF

Inverter codeInverter Ready

KVA codeH

Lifting lugsNo Lifting Lugs

Maximum speed (rpm)3600 rpm

Motor lead quantity/wire size12 @ 1 AWG

Motor typeA44160M

Mounting arrangementF1

Number of poles4

Overall length53.24 IN

Power factor87

Product familyCrusher / Chipper

Pulley end bearing typeBall

Pulley face codeStandard

Service factor1.15

Shaft diameter3.375 IN

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorShaft Slinger

Speed (rpm)1785 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

UPC781568785812

Nameplate

Catalog numberECR93504T-4

Specification numberP44G1821

Horsepower (HP)350

Current (A)390

Voltage (V)460

NEMA design letterA

Speed (rpm)1785

Maximum speed (rpm)3600

Frequency (Hz)60

Ambient temperature (°C)40

Service factor1.15

Drive end bearing data6318

Opposite drive end bearing data6318

Phase3

DutyCONT

Insulation classF

Frame size449T

Ingress protection (IP)55

TypeP

EnclosureTEFC

Code letter (locked rotor kVA)H

Power factor87

Efficiency at 3/4 load (%)96.3

NEMA nominal efficiency (%)96.2

Constant horsepower frequency range (Hz)60-90

Constant torque frequency range (Hz)30-60

Variable torque frequency range (Hz)6-60

Nameplate number000613007PV

Documents & CAD

For this product 2

Wiring DiagramWiring DiagramPDF·39 KB·English

DatasheetDatasheetPDF·770 KB·English

Series documents 4· shared by this product series

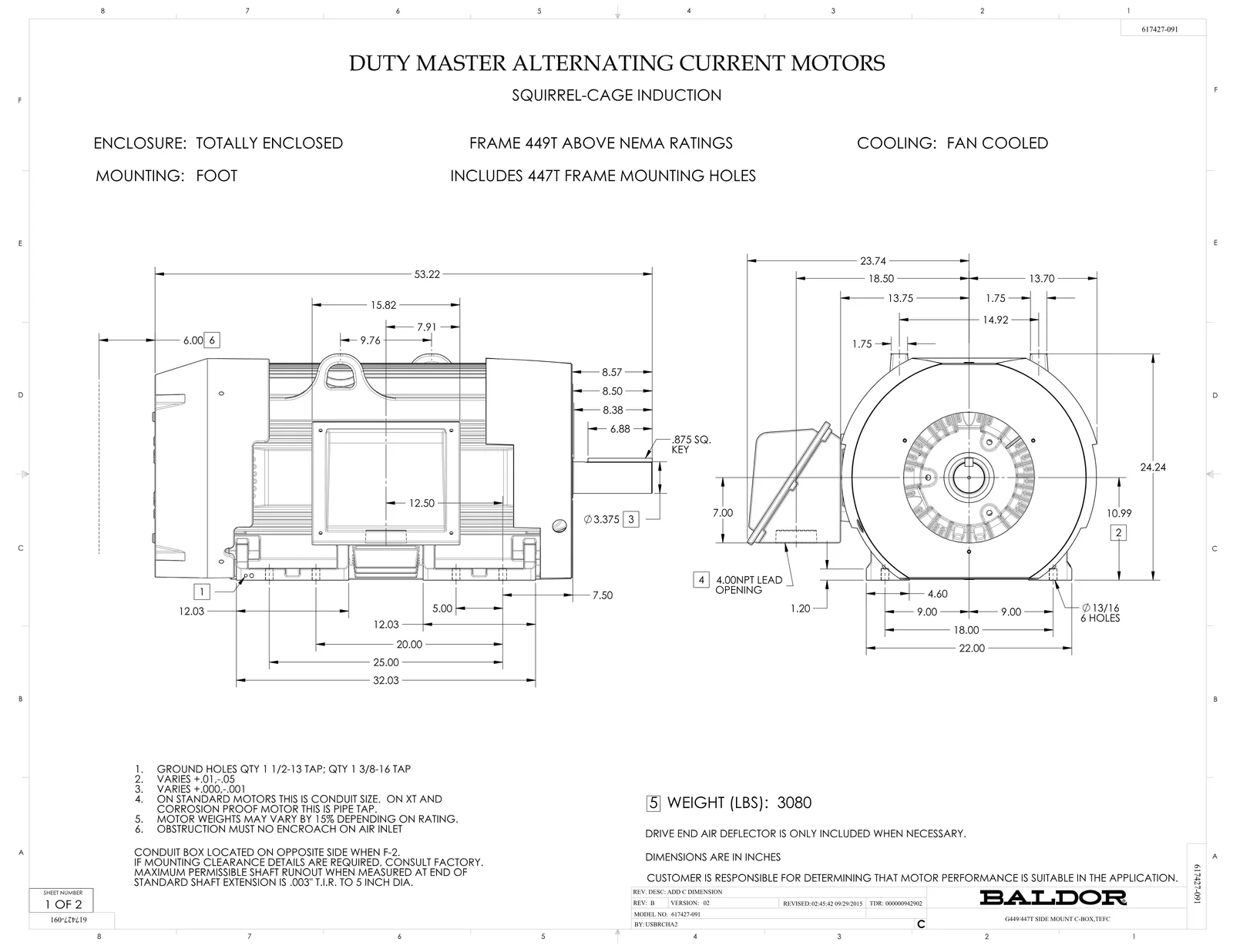

Dimension DrawingDimension SheetPDF·269 KB·English

Technical DrawingDrawingPDF·862 KB·English

Technical DrawingDrawingPDF·87 KB·English

Performance CurvePerformance CurvePDF·95 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 3

The genuine spare parts used for servicing and repairing the Baldor ECR93504T-4 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.
