Baldor ECR9106T

Baldor-Reliance ECR9106T is a 10 HP, 1175 rpm, 3-phase 230/460 V, 60 Hz, 256T frame, TEFC enclosed Super-E Chemical Processing three-phase AC electric motor.

BaldorMFR # ECR9106TSKU # YLS1STVRZQ46D4S

EnclosureTEFC

Frame256T

Frame materialCast Iron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency10.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance ECR9106T is a 10 HP, 1175 rpm, 3-phase 230/460 V, 60 Hz, 256T frame, TEFC enclosed Super-E Chemical Processing three-phase AC electric motor.

Baldor ECR9106T

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame256T

Frame materialCast Iron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency10.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1200 RPM @ 60 HZ

Voltage at frequency460.0 V @ 60 HZ · 230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsNEMA_PREMIUM · UR · CSA EEV · CCSA US

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Constant torque speed range6

Current at voltage14.000 A @ 460.0 V · 28.000 A @ 230.0 V

Design codeA

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load91.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)14.0 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeInverter Duty

KVA codeJ

Lifting lugsStandard Lifting Lugs

Locked bearing indicatorLocked Bearing

Maximum speed (rpm)1800 rpm

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size9 @ 12 AWG

Motor type0962M

Mounting arrangementF1

Number of poles6

Overall length24.77 IN

Power factor74

Product familySuper-E Chemical Processing

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

Service factor1.25

Shaft diameter1.625 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorShaft Slinger

Speed (rpm)1175 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568794364

Nameplate

Catalog numberECR9106T

EnclosureTEFC

Specification number09L575T161G1

CC number010A

Frame size256T

Horsepower (HP)10

Insulation classF

Frequency (Hz)60

NEMA design letterA

Speed (rpm)1175

Maximum speed (rpm)1800

Phase3

kVA codeJ

Voltage (V)230/460

Ingress protection (IP)55

Current (A)28/14

Service factor1.25

Power factor74

Opposite drive end bearing6309

Drive end bearing6311

Rating40C AMB-CONT

NEMA nominal efficiency (%)91

GreasePOLYREX EM

Constant horsepower range from60

Constant horsepower range to90

Constant torque frequency from (Hz)6

Constant torque frequency to (Hz)60

Motor weight355

Variable torque frequency from (Hz)6

Variable torque frequency to (Hz)60

Nameplate numberNP3293

Performance

General characteristics· 460 V, 60 Hz, 10 hp

Line-to-line resistance at 25 °C (ohms)0.811 Ω

Temperature rise at rated load (°C)44° C

Temperature rise at service factor load (°C)57° C

Start configurationDOL

Breakdown torque165 lb-ft

Pull-up torque80.7 lb-ft

Locked-rotor torque128 lb-ft

Starting current (A)100 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	5	34	55	67	74	78	80	78
Efficiency %	0	84.8	89.9	91.2	91	90.3	89.4	90.3
Speed rpm	1199	1194	1189	1184	1179	1173	1166	1173
Line amps A	7.56	8.1	9.61	11.7	14	16.8	19.7	16.8
Power W	316	2221	4229	6238	8283	10393	12540	10393
Torque lb-ft	0	11.1	22.5	33.8	45	56.3	67.7	56.3

Documents & CAD

For this product 4

Wiring DiagramWiring DiagramPDF·41 KB·English

Wiring DiagramWiring DiagramPDF·37 KB·English

DatasheetDatasheetPDF·694 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 2· shared by this product series

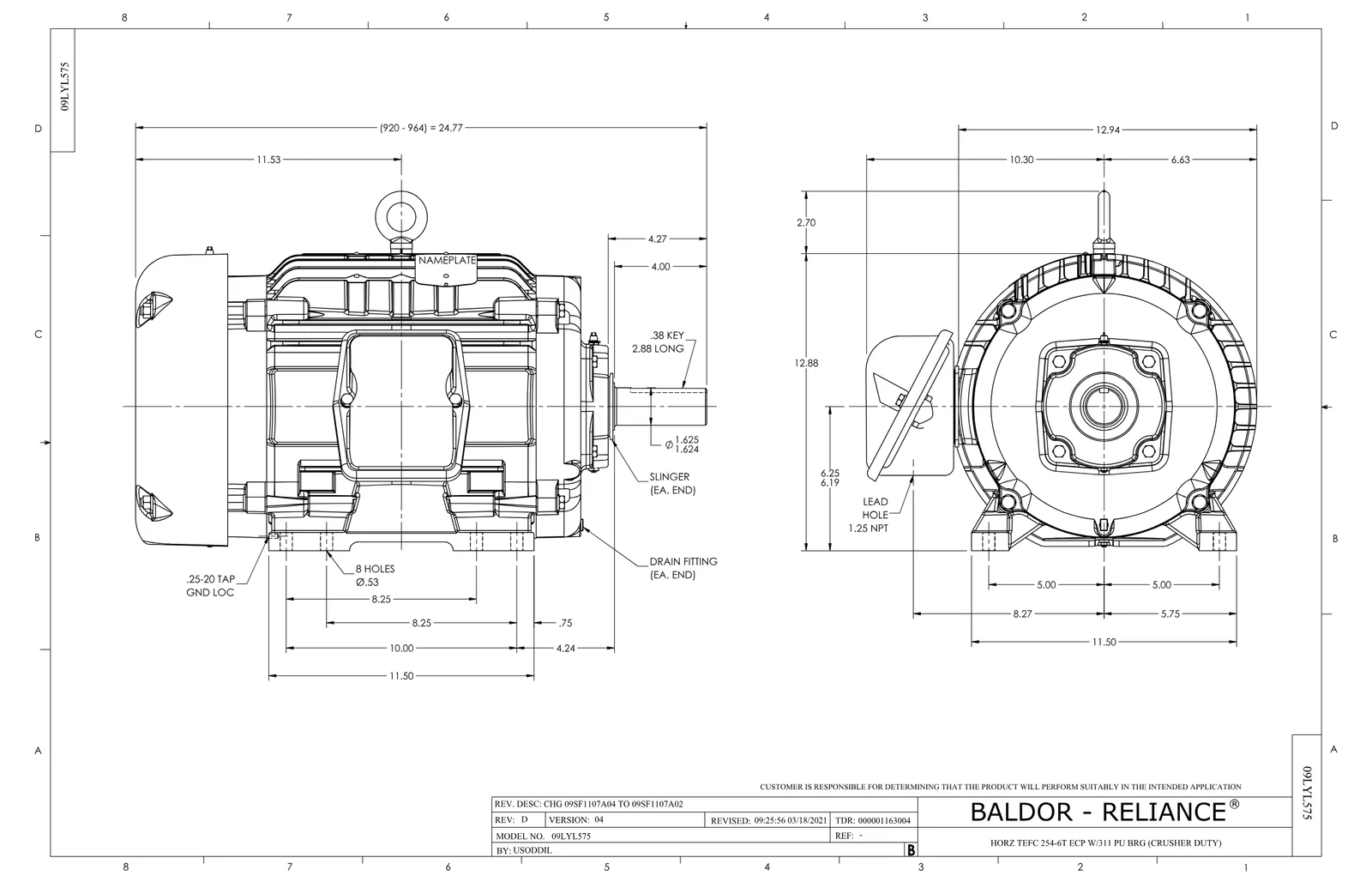

Dimension DrawingDimension SheetPDF·169 KB·English

Technical DrawingDrawingPDF·87 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 7

The genuine spare parts used for servicing and repairing the Baldor ECR9106T motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
09FN3001D01SP	EXTERNAL FAN, PLASTIC (COMES W/SCREW FRO	1 pcs	148 motors
09GS1010	GASKET, DWG, LEADWIRE SEPERATOR	1 pcs	343 motors
51XW2520A12	.25-20 X .75, TAPTITE II, HEX WSHR SLTD	4 pcs	1,543 motors
HW1001A31	LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I	2 pcs	1,025 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
LC0005E01	SPL CONN.DIA./WARN.LABEL(LC0005/LB1119)	1 pcs	251 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
