Baldor ECP84411T-5

Baldor-Reliance ECP84411T-5 is a 125 HP, 1190 rpm, 3-phase 575 V, 60 Hz, 445T frame, TEFC enclosed three-phase AC electric motor.

BaldorMFR # ECP84411T-5SKU # YLS5CM1OZUNITLD

EnclosureTEFC

Frame445T

Frame materialIron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency125.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance ECP84411T-5 is a 125 HP, 1190 rpm, 3-phase 575 V, 60 Hz, 445T frame, TEFC enclosed three-phase AC electric motor.

Baldor ECP84411T-5

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame445T

Frame materialIron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency125.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1200 RPM @ 60 HZ

Voltage at frequency575.0 V @ 60 HZ

Hazardous area class and groupCLI GP A,B,C,D

Hazardous area divisionDivision II

Agency approvalsC UR US · CCSA US · CCSAUSEEV · CURUS · CURUSEEV

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

Constant torque speed range15-60

Current at voltage117.000 A @ 575.0 V

Design codeB

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load95.0 %

Enclosure modification841

Feedback deviceNO FEEDBACK

High voltage full load current (A)117.0 a

Heater indicatorNo Heater

Insulation classF

Inverter codeInverter Ready

IP ratingIP56

KVA codeG

Lifting lugsStandard Lifting Lugs

Motor lead quantity/wire size3 @ 2 AWG

Motor typeA44090M

Mounting arrangementF1

No-load current (A)36.2 a

Number of poles6

Overall length44.97 IN

Power factor84

Pulley end bearing typeBall

Pulley face codeStandard

Service factor1.15

Shaft diameter3.375 IN

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1190 rpm

Speed codeSingle Speed

Motor standardsNone

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Hazardous area temperature codeT3

UPC781568464359

Nameplate

Catalog numberECP84411T-5

Specification numberA44-0000-6729

Horsepower (HP)125

Current (A)117

Voltage (V)575

NEMA design letterB

Frame size445T

Speed (rpm)1190

Frequency (Hz)60

Ambient temperature (°C)40

Service factor1.15

Drive end bearing data6318

Opposite drive end bearing data6318

Phase3

DutyCONT

Insulation classF

Drive end bearing90BC03J30X

EnclosureTEFC

Code letter (locked rotor kVA)G

Opposite drive end bearing90BC03J30X

Power factor84

NEMA nominal efficiency (%)95.0

Efficiency at 3/4 load (%)95.4

Ingress protection (IP)56

Maximum correction (kVAR)15.87

Guaranteed efficiency (%)94.1

Temperature codeT3

Temperature code200

Constant horsepower frequency range (Hz)60-90

Constant torque frequency range (Hz)15-60

Variable torque frequency range (Hz)0-60

Inverter temperature codeT3

Nameplate numberNP4566

Documents & CAD

For this product 3

Wiring DiagramWiring DiagramPDF·39 KB·English

DatasheetDatasheetPDF·1.4 MB·English

Performance CurvePerformance CurvePDF·83 KB·English

Series documents 3· shared by this product series

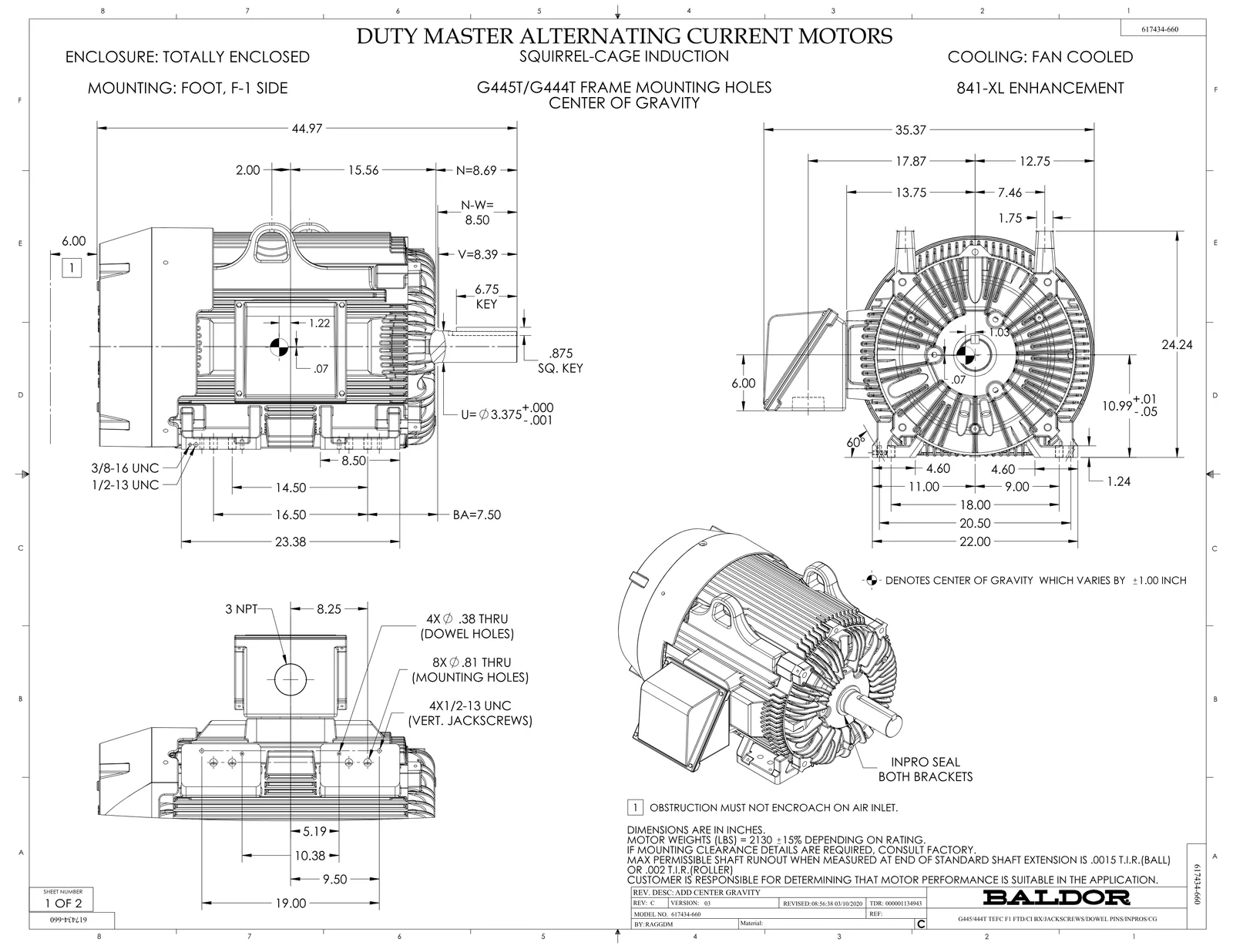

Dimension DrawingDimension SheetPDF·928 KB·English

Technical DrawingDrawingPDF·862 KB·English

Technical DrawingDrawingPDF·87 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 4

The genuine spare parts used for servicing and repairing the Baldor ECP84411T-5 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
000692000VD	LABEL WARNING	1 pcs	544 motors
034017014AB	LCKW 3/8 STD. PLATED	4 pcs	376 motors
078557001E	FAN 440 078557001F	1 pcs	31 motors
415028079H	SEAL,.625 WIDE,318 BRG	2 pcs	34 motors
