Baldor ECP84314T-5

Baldor-Reliance ECP84314T-5 is a 60 HP, 1780 rpm, 3-phase 575 V, 60 Hz, 364T frame, TEFC enclosed three-phase AC electric motor.

BaldorMFR # ECP84314T-5SKU # YLSNFNX0SBCHC2I

EnclosureTEFC

Frame364T

Frame materialIron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency60.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance ECP84314T-5 is a 60 HP, 1780 rpm, 3-phase 575 V, 60 Hz, 364T frame, TEFC enclosed three-phase AC electric motor.

Baldor ECP84314T-5

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame364T

Frame materialIron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency60.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency575.0 V @ 60 HZ

Hazardous area class and groupCLI GP A,B,C,D

Hazardous area divisionDivision II

Agency approvalsCCSAUSEEV · CURUSEEV · NEMA PREMIUM · NEMA_PREMIUM · UR

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

Constant torque speed range15-60

Current at voltage55.000 A @ 575.0 V

Design codeB

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load95.0 %

Enclosure modification841

Feedback deviceNO FEEDBACK

High voltage full load current (A)55.0 a

Heater indicatorNo Heater

Insulation classF

Inverter codeInverter Ready

IP ratingIP56

KVA codeG

Lifting lugsStandard Lifting Lugs

Maximum speed (rpm)2700 rpm

Motor lead quantity/wire size3 @ 4 AWG

Motor typeA3658M

Mounting arrangementF1

No-load current (A)18.8 a

Number of poles4

Overall length33.49 IN

Power factor84

Pulley end bearing typeBall

Pulley face codeStandard

Service factor1.15

Shaft diameter2.375 IN

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1780 rpm

Speed codeSingle Speed

Motor standardsNone

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Hazardous area temperature codeT3

UPC781568621196

Nameplate

Catalog numberECP84314T-5

Frame size364T

Specification numberA36-6000-4086

EnclosureTEFC

NEMA design letterB

Frequency (Hz)60

Phase3

Insulation classF

Horsepower (HP)60

Service factor1.15

Power factor84

Code letter (locked rotor kVA)G

Voltage (V)575

Current (A)55

Speed (rpm)1780

Maximum speed (rpm)2700

NEMA nominal efficiency (%)95

Rating40C AMB-CONT

Guaranteed minimum efficiency (%)94.1

Drive end bearing6313

Opposite drive end bearing6313

Temperature code3-200

Constant torque frequency range (Hz)15-60

Variable torque frequency range (Hz)0-60

Constant horsepower frequency range (Hz)60-90

Inverter temperature class200

Motor weight937

Nameplate numberNP4388

Documents & CAD

For this product 2

Wiring DiagramWiring DiagramPDF·39 KB·English

DatasheetDatasheetPDF·932 KB·English

Series documents 3· shared by this product series

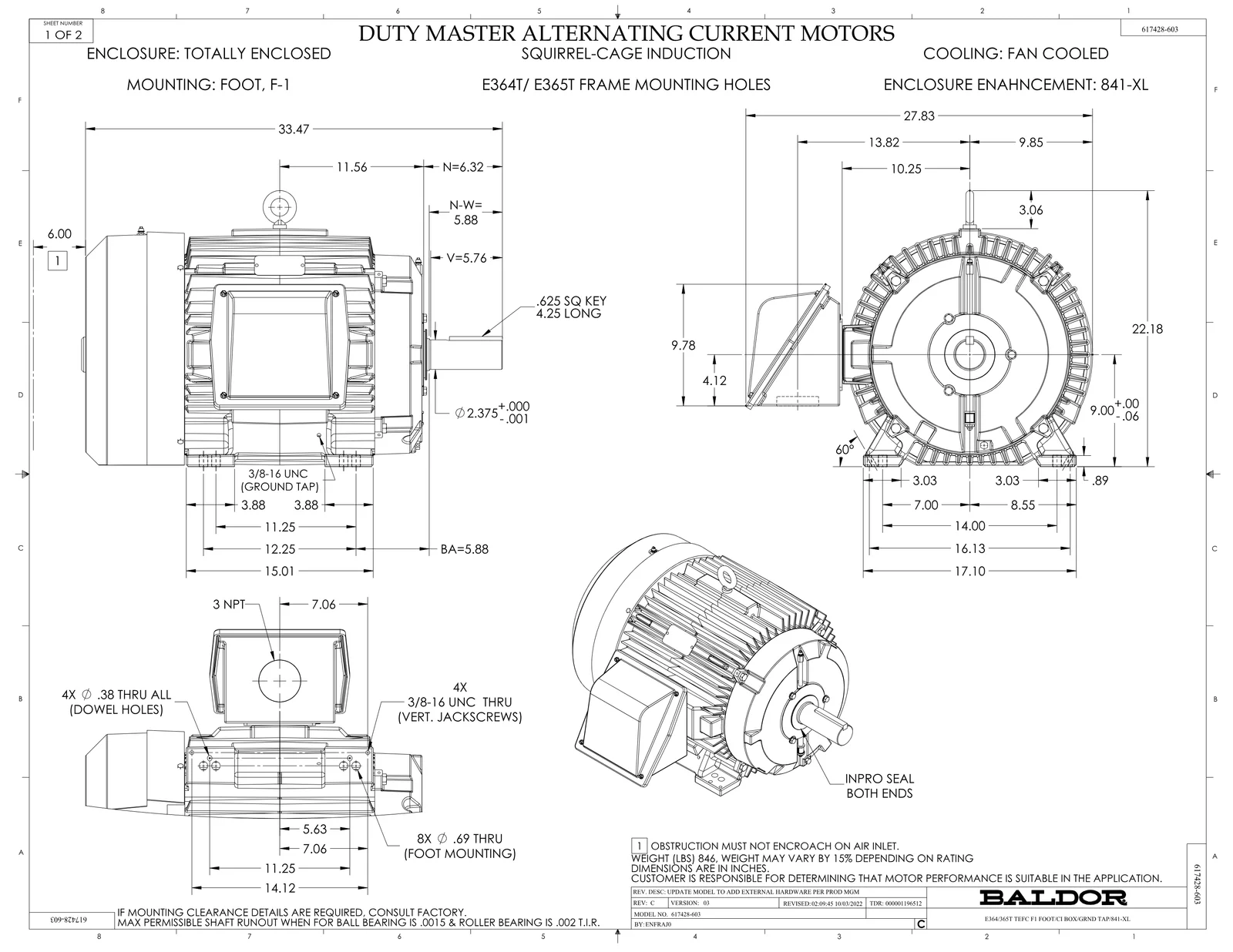

Dimension DrawingDimension SheetPDF·524 KB·English

Technical DrawingDrawingPDF·862 KB·English

Technical DrawingDrawingPDF·87 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 5

The genuine spare parts used for servicing and repairing the Baldor ECP84314T-5 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
000692000VD	LABEL WARNING	1 pcs	544 motors
078548001K	FAN KB 100/30 (70) 360	1 pcs	14 motors
415028079E	INPRO SEAL,.625 WIDE,313 BRG	2 pcs	36 motors
067053000B	GASK 320-400	1 pcs	179 motors
076709000A	C/B Cover - 360	1 pcs	179 motors
