Baldor ECP84107T-5

Severe Duty - IEEE 841 Motor - 25 hp, 3600 rpm, 3 ph, 575 V, 284TS Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 3520 rpm Base, Foot Mount, Continuous Duty

BaldorMFR # ECP84107T-5SKU # YLSWB4U2PA11U64

EnclosureTEFC

Frame284TS

Frame materialIron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency25.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Severe Duty - IEEE 841 Motor - 25 hp, 3600 rpm, 3 ph, 575 V, 284TS Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 3520 rpm Base, Foot Mount, Continuous Duty

Baldor ECP84107T-5

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame284TS

Frame materialIron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency25.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)3600 RPM @ 60 HZ

Voltage at frequency575.0 V @ 60 HZ

Hazardous area class and groupCLI GP A,B,C,D

Hazardous area divisionDivision II

Agency approvalsNEMA PREMIUM · NEMA PREMIUM (OLD LOGO) · UR · CSA EEV · CCSA US

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Constant torque speed range1.3

Current at voltage23.000 A @ 575.0 V

Design codeB

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load91.7 %

Electrically isolated bearingNot Electrically Isolated

Enclosure modification841

Feedback deviceNO FEEDBACK

High voltage full load current (A)23.0 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeInverter Duty

IP ratingIP56

KVA codeF

Lifting lugsStandard Lifting Lugs

Locked bearing indicatorLocked Bearing

Maximum speed (rpm)5400 rpm

Motor lead exitKo Box

Motor lead terminationRing Terminals

Motor lead quantity/wire size3 @ 10 AWG

Motor type1048M

Mounting arrangementF1

Number of poles2

Overall length26.57 IN

Power factor90

Product familyChem Process S/P 32-8 IEEE 841

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

Service factor1.15

Shaft diameter1.625 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)3520 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

Hazardous area temperature codeT3C

UPC781568499245

Motor CategoryIEEE 841 Motor

Motor Supply Voltage575 V

Base RPM3520 rpm

Mounting TypeFoot

Harmonization Code8501.52.8040

Weight455 lbs

ApplicationsDesigned for 600V distibution systems for use in Petro-chemical, pulp and paper, cement, aggregate mining and other process industries requiring premium efficient motors designed, manufactured and tested to exceed IEEE 841- 2009 TEFC motor standards for extreme severe duty service.

Additional DetailsMeets and/or exceeds all requirements of IEEE Std. 841-2009 including: Totally enclosed cast iron construction, Lower vibration design, Inpro Seals and Positive Lubrication System with oversize bearings on both ends, Stainless Steel nameplates, Terminal lugs on motor leads, Corrosion resistant epoxy finish, NEMA Premium efficiency, Class F insulation with a Class B temperature Rise, 1.15 service factor and 5 year warranty. Final test and vibration results provided with motor. Motors are marked for Div.2/Zone 2, Class I locations and are designed to meet 200° C @ 1.0 Service Factor. Inverter Ready design with speed range and Inverter T. Code nameplate information, see chart on page 51 for specific motor information.

Product TypeSevere Duty Motors

Nameplate

Catalog numberECP84107T-5

EnclosureTEFC

Specification number10-0000-5293

CC number010A

Frame size284TS

Horsepower (HP)25

Insulation classF

Frequency (Hz)60

Opposite drive end bearing6311

Drive end bearing6311

Speed (rpm)3520

Maximum speed (rpm)5400

Phase3

NEMA design letterB

Drive end bearing55BC03X30X

Voltage (V)575

kVA codeF

Opposite drive end bearing55BC03X30X

Current (A)23

Motor weight418

GreasePOLYREX EM

RatingDO_C AMB-CONT

Maximum kVAR1.85

NEMA nominal efficiency (%)91.7

Number of rotor bars28

Service factor1.15

Ingress protection (IP)56

Guaranteed minimum efficiency (%)91.7

Number of stator slots36

Power factor90

Inverter typePWM

Temperature codeT3C

Inverter temperature code200

Temperature code160

Constant horsepower range from60

Constant horsepower range to90

Constant torque frequency from (Hz)1.3

Constant torque frequency to (Hz)60

Variable torque frequency from (Hz)0-

Variable torque frequency to (Hz)60

Nameplate numberNP4332

Performance

General characteristics· 575 V, 60 Hz, 25 hp

Line-to-line resistance at 25 °C (ohms)0.42567 Ω

Temperature rise at rated load (°C)64° C

Temperature rise at service factor load (°C)79° C

Start configurationDOL

Breakdown torque132 lb-ft

Pull-up torque62.7 lb-ft

Locked-rotor torque69.7 lb-ft

Starting current (A)143 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	9	65	83	88	90	90	90	90
Efficiency %	0	88.7	92.3	92.7	92.2	91.3	90.1	91.7
Speed rpm	3598.9	3578.8	3560.6	3540.8	3519.1	3495.4	3468.2	3505
Line amps A	5.8	8.04	12.2	17.2	22.5	28.3	34.6	26
Power W	526	5246	10106	15090	20212	25510	30993	23391
Torque lb-ft	0	9.156	18.44	27.82	37.3	46.93	56.68	43.1

Documents & CAD

For this product 3

Wiring DiagramWiring DiagramPDF·38 KB·English

DatasheetDatasheetPDF·692 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 2· shared by this product series

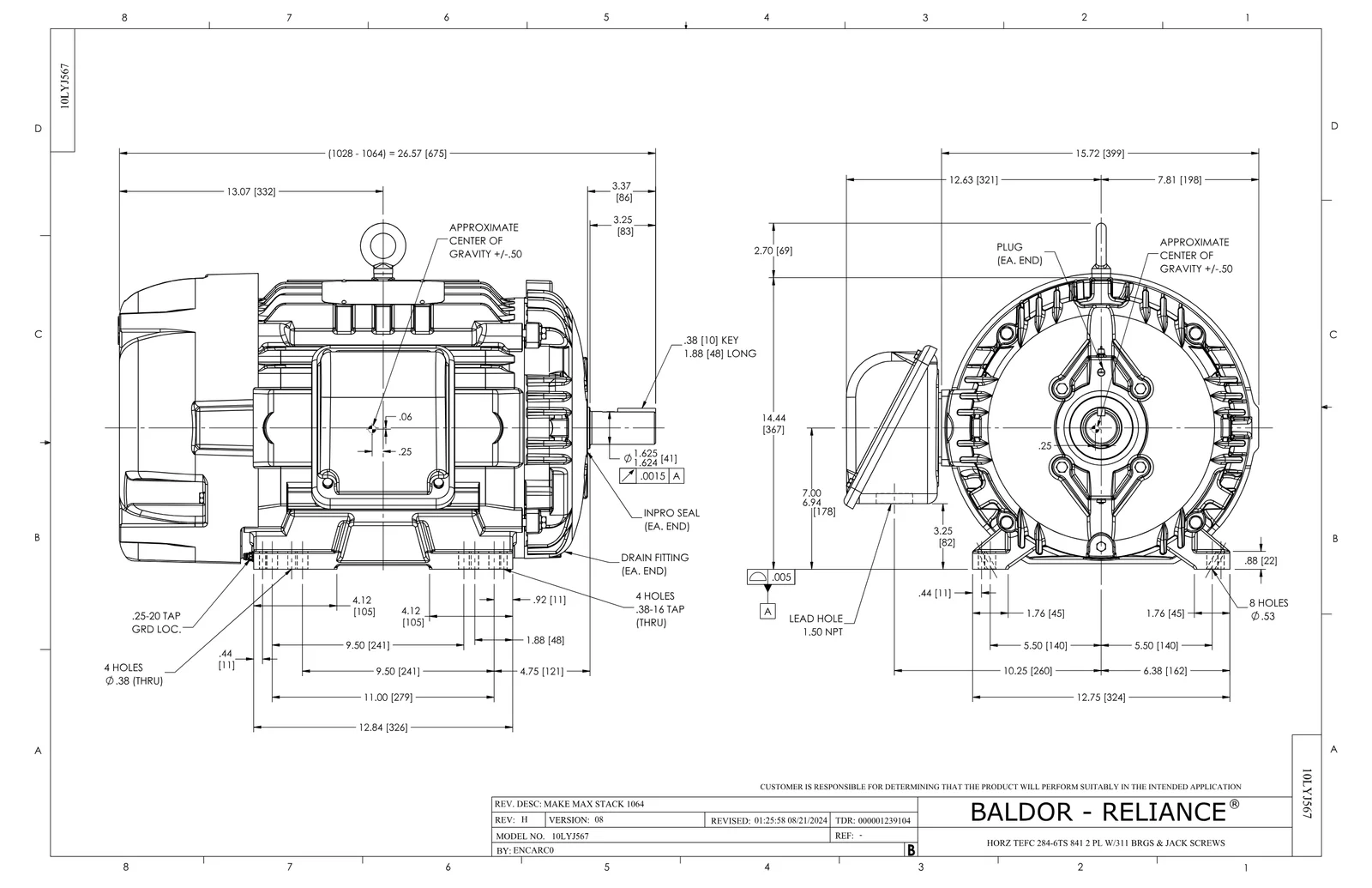

Dimension DrawingDimension SheetPDF·210 KB·English

Technical DrawingDrawingPDF·87 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 7

The genuine spare parts used for servicing and repairing the Baldor ECP84107T-5 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
HA4002A03	#304 S.S. DRAIN FITTING, .125 NPT (.44 H	2 pcs	122 motors
HW1001A31	LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I	7 pcs	1,025 motors
37FN3002C03	EXFN, PLASTIC, 6.00 OD, 1.690 ID	1 pcs	35 motors
09GS1010	GASKET, DWG, LEADWIRE SEPERATOR	1 pcs	343 motors
14GS1003	GASKET CONDUIT BOX LID, NEOP	1 pcs	223 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
