How can I get a price quote for Baldor ECP44402T-4?

You can request a fast quote for Baldor ECP44402T-4 from Yılsa Engineering. Reference part number YLSIYCWLL9Q8CK. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor ECP44402T-4 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor ECP44402T-4 genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor ECP44402T-4?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor ECP44402T-4

Baldor-Reliance ECP44402T-4 is a 400 HP, 3570 rpm, 3-phase 460 V, 60 Hz, L449TS frame, TEFC enclosed general industrial three-phase AC electric motor.

BaldorMFR # ECP44402T-4SKU # YLSIYCWLL9Q8CK

EnclosureTEFC

FrameL449TS

Frame materialCast Iron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency400.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance ECP44402T-4 is a 400 HP, 3570 rpm, 3-phase 460 V, 60 Hz, L449TS frame, TEFC enclosed general industrial three-phase AC electric motor.

Baldor ECP44402T-4

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

FrameL449TS

Frame materialCast Iron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency400.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)3600 RPM @ 60 HZ

Voltage at frequency460.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionDivision II

Agency approvalsCURUSEEV · CCSAUSEEV

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

Constant torque speed range30-60

Current at voltage420.000 A @ 460.0 V

Design codeB

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load96.2 %

Enclosure modificationSevere Duty Features

Feedback deviceNO FEEDBACK

High voltage full load current (A)420.0 a

Frame prefixL

Heater indicatorNo Heater

Insulation classF

Inverter codeNot Inverter

IP ratingNONE

KVA codeG

Lifting lugsNo Lifting Lugs

Motor lead quantity/wire size12 @ 1/0 AWG

Motor typeA44208M

Mounting arrangementF1

Number of poles2

Overall length56.72 IN

Power factor92

Product familyGeneral Industrial

Pulley end bearing typeBall

Pulley face codeStandard

Service factor1.15

Shaft diameter2.375 IN

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorShaft Slinger

Speed (rpm)3570 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Hazardous area temperature codeT2C

UPC781568137253

Nameplate

Nameplate numberNP2496L

Documents & CAD

For this product 2

Wiring DiagramWiring DiagramPDF·39 KB·English

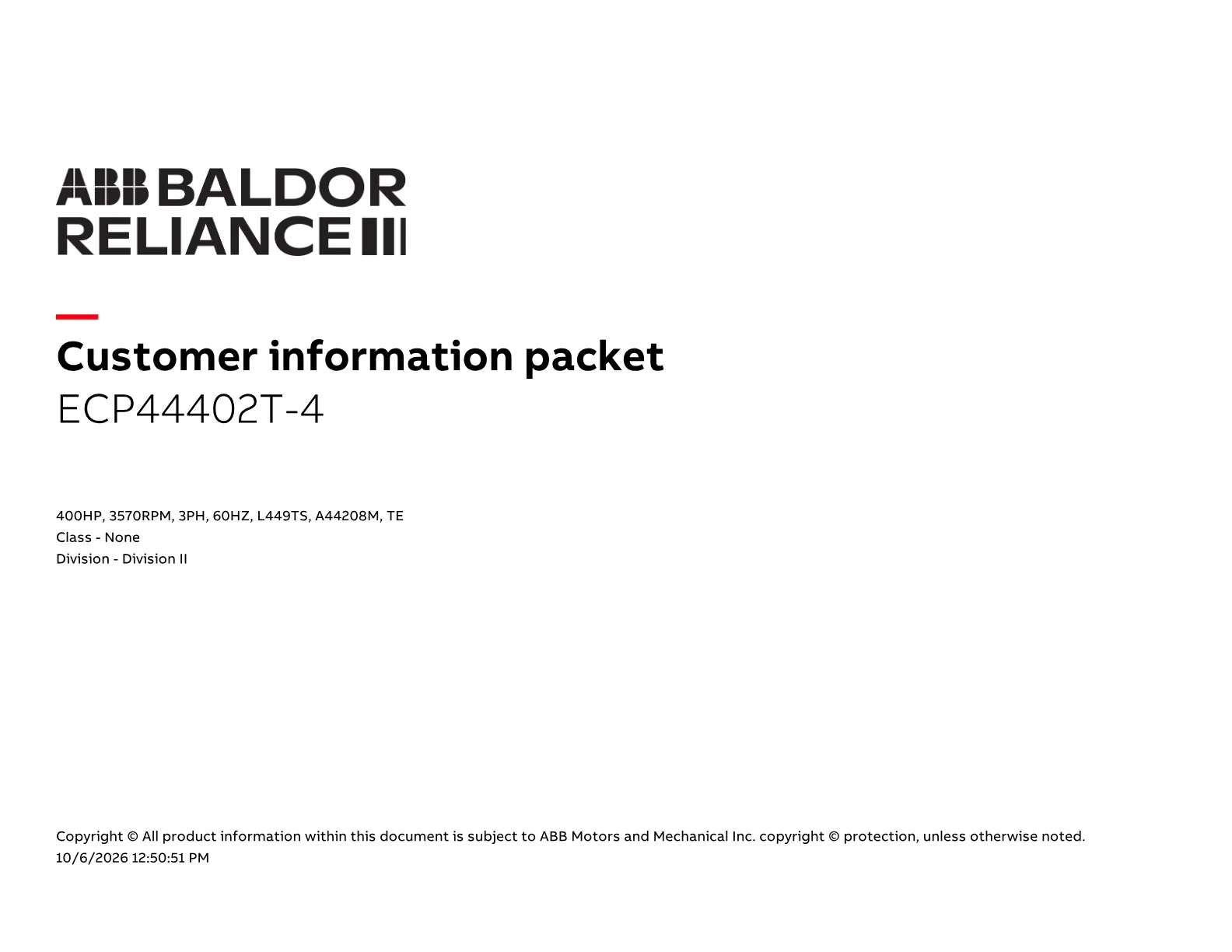

DatasheetDatasheetPDF·842 KB·English

Series documents 5· shared by this product series

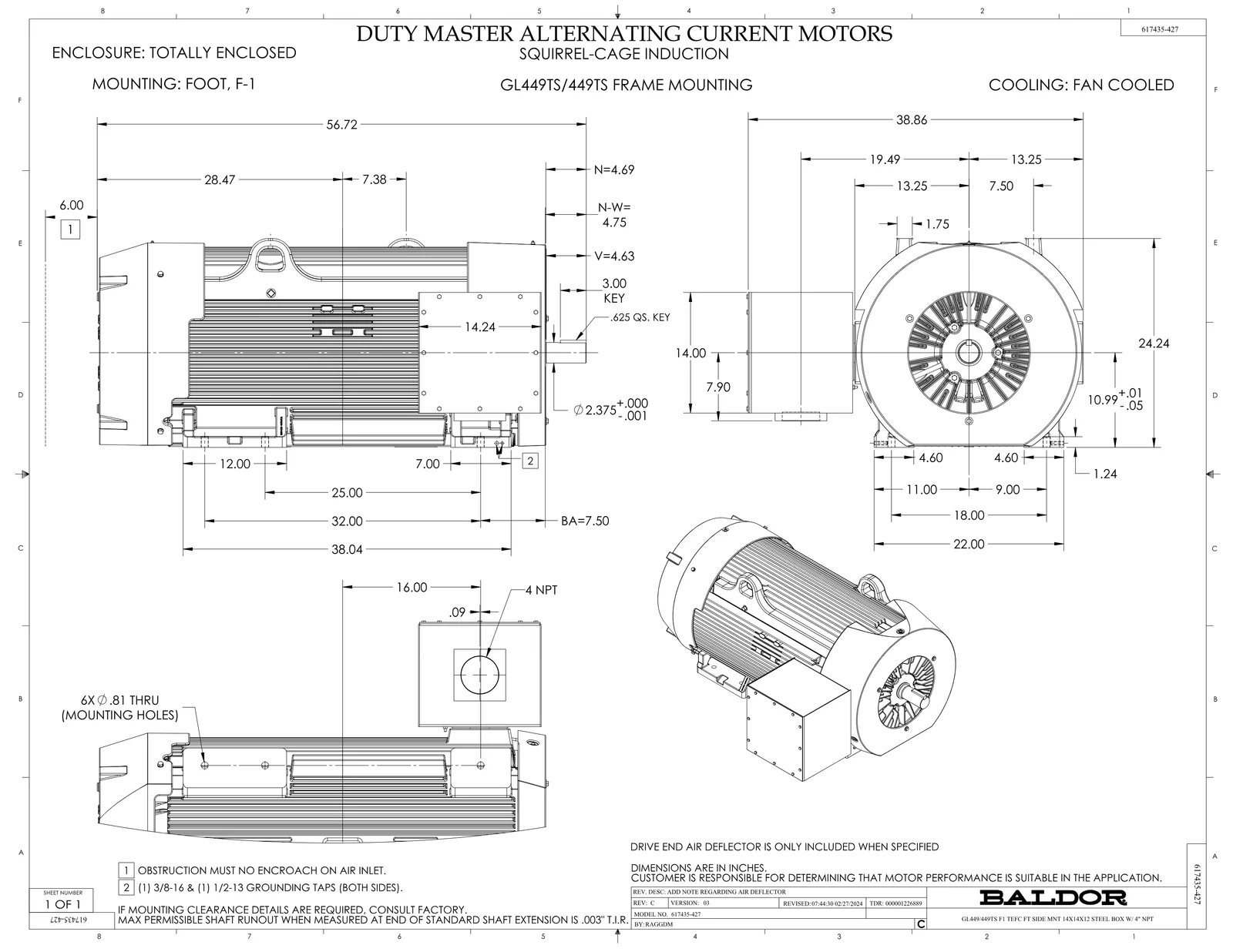

Dimension DrawingDimension SheetPDF·272 KB·English

Dimension DrawingDimension SheetPDF·79 KB·English

Technical DrawingDrawingPDF·862 KB·English

Technical DrawingDrawingPDF·87 KB·English

Performance CurvePerformance CurvePDF·91 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 3

The genuine spare parts used for servicing and repairing the Baldor ECP44402T-4 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.
